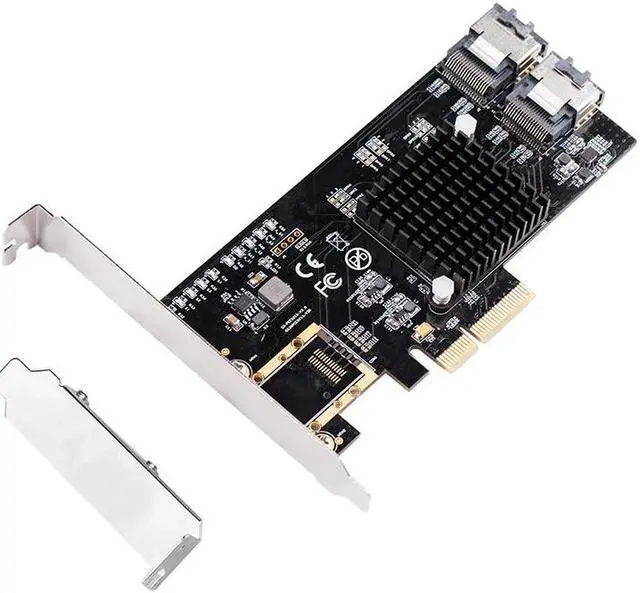

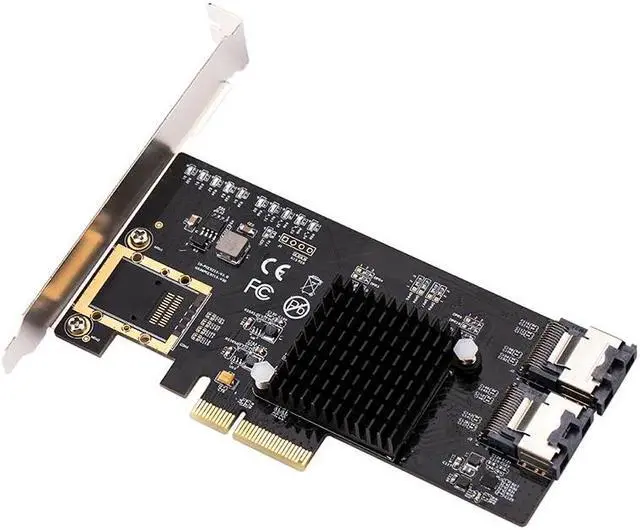

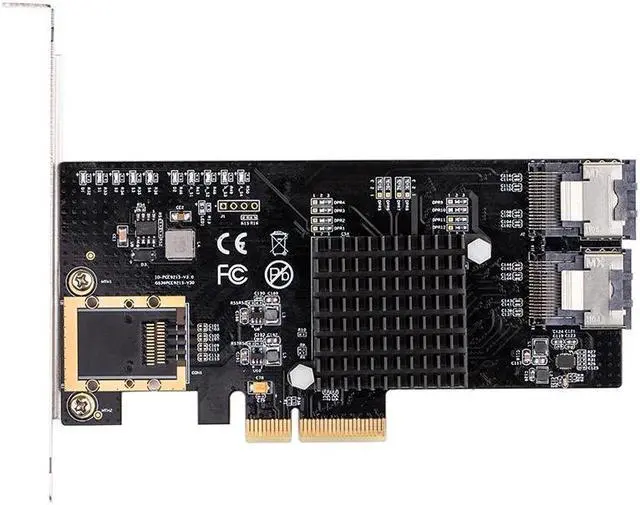

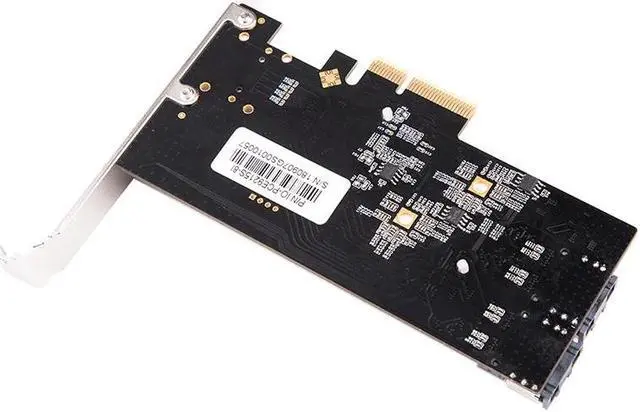

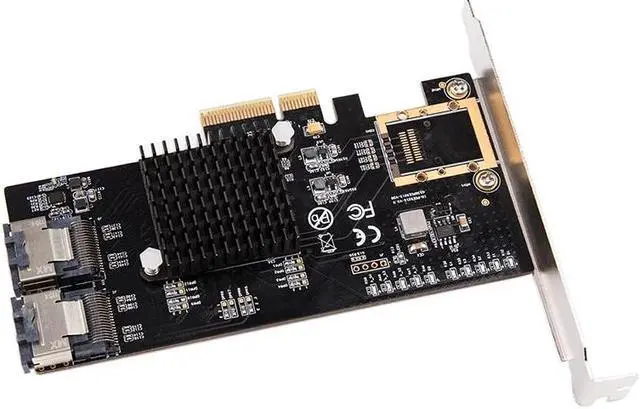

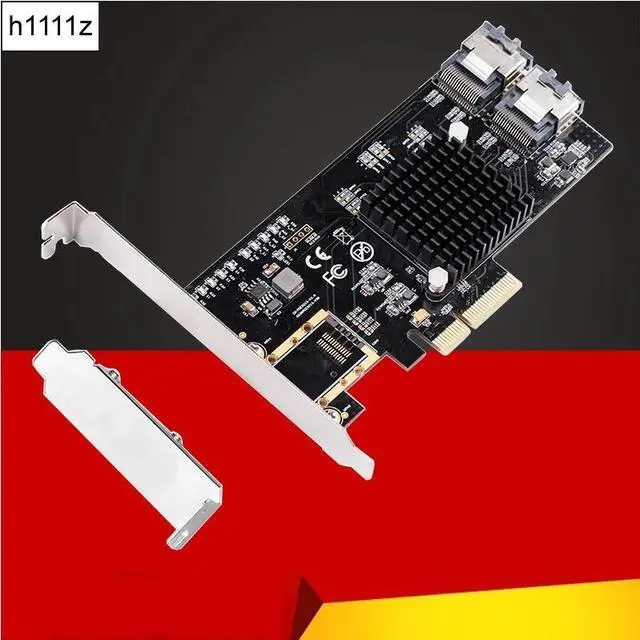

PCI-E PCI Express to SATA 3.0 III 3 6Gb Controller Card SSD PCIe 8 Port SATA Card SSD SATA 3.0 Adapter Raiser Low Profile Bracket
About Description:
Features:
Compatible with PCIe 2.0 specifications
Compliant with Serial ATA Specification 3.1
Built-in Two SFF8087 interfaces
Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Supports Hot plug and Hot Swap.
Supports Native Command Queue (NCQ)
Supports AHCI 1.0 programming interface registers for the SATA controller
Supports aggressive power management
Supports error reporting, recovery and correction
Supports Message Signaled Interrupt (MSI)
Supports Programmable transmitter signal levels
Supports Port Multiplier FIS based switching or command based switching.
Supports Partial and Slumber Power Management states
Supports SATA Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
Supports Staggered Spin-up
Main Chips: Marvell 88SE9215
Note: Not Supported RAID on PM
System Requirement:
Computer system with one PCI-Express slot available
Supports Windows XP/Vista/7/8/ 8.1 /10 Server 2003/2008 R2, 2016, Linux 2.6. x and above
You'll receive:
1 x PCI-Express to 8 Ports SATA with SFF8087 Card
1 x User Manual
1 x Software Driver CD
2 x Mini SAS to SATA Cable
Please check pictures for more details.
