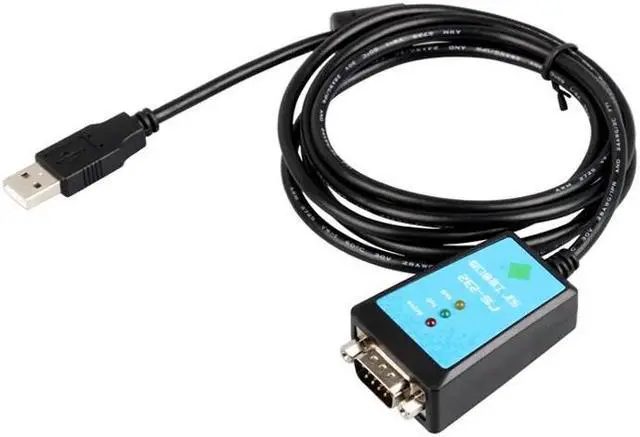

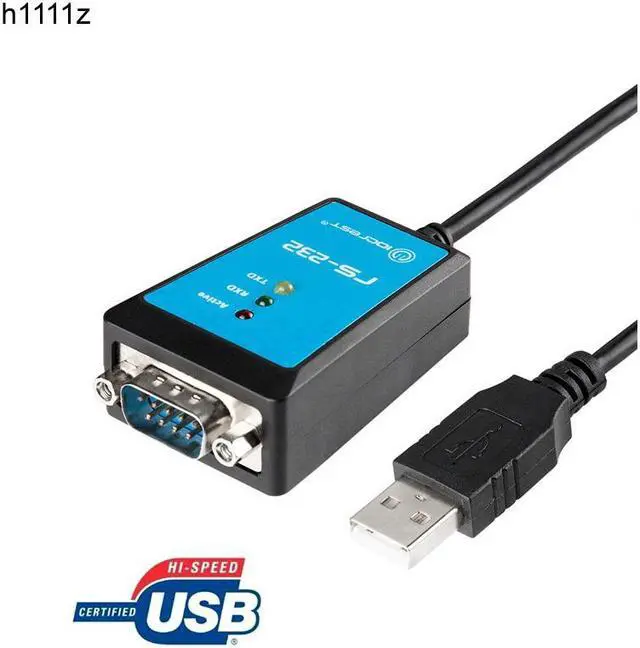

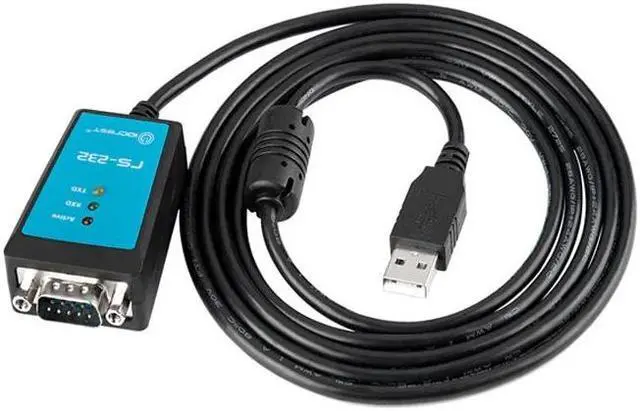

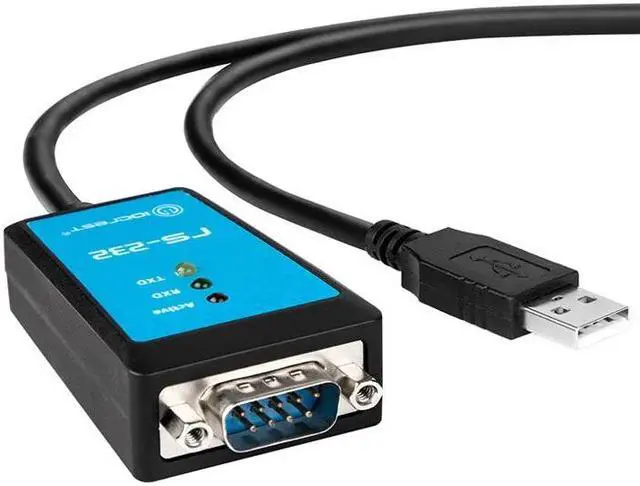

1.8M FTDI Chips USB 2.0 to DB9 RS232 Serial Cable Converter with Magnetic Ring

1.8M FTDI Chips USB 2.0 to DB9 RS232 Serial Cable Converter with Magnetic Ring
About Description:
USB USB 2.0 to Serial Converter, FTDI Chipset, Line lenth 1.8M, LED
Features
Standards: conforming to USB V 1.0, 1.1 and 2.0
USB signals: VCC, DATA+, DATA-, GND and FG
RS-232 signals: CD RXD TXD DTR GND DSR RTS CTS RI
Single chip USB to asynchronous serial data transfer interface
Support Bits per second Data transfer rates from 300 baud to 961200baud (RS232 ) at TTL levels
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and even/odd/mark/space/none
Flow control none, hardware and xon/xoff
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
UART signal inversion option
USB 2.0 Full Speed capable

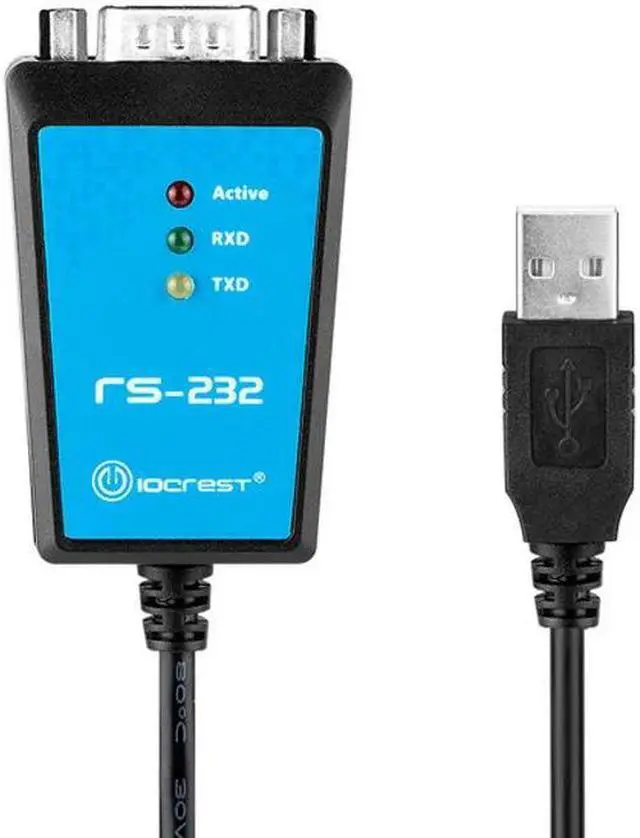

Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
Extended operating temperature range; -40 to 85
Line Length: 1M
Systerm requirement
Applications
USB to UART Cable
POS Printer Terminal
Networking System
Industrial and Power Meter
USB Bar Code Reader
USB Digital Camera Interface
USB Wireless/Wired Modem

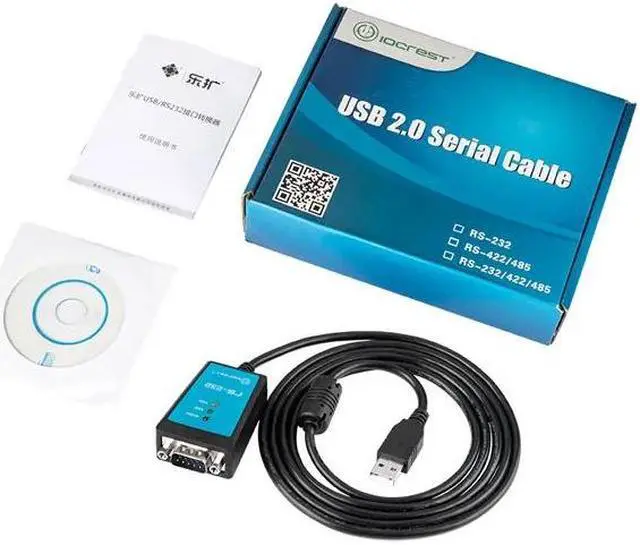

Package Contents
You'll receive:
1 x USB to RS232 COM Port Serial Cable
1 x User Manual
1 x Driver CD
Please check pictures for more details.
