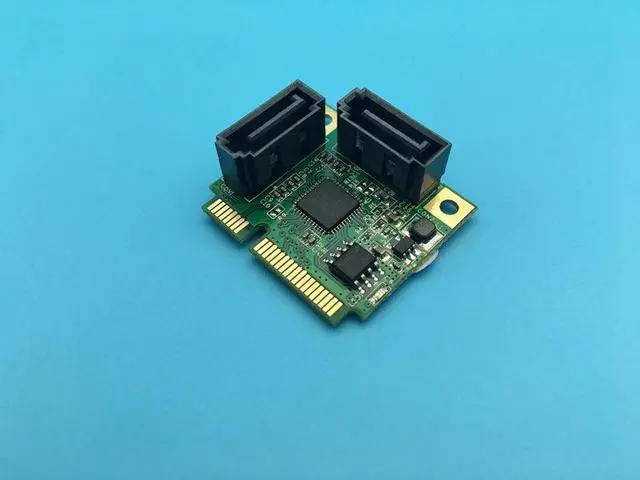

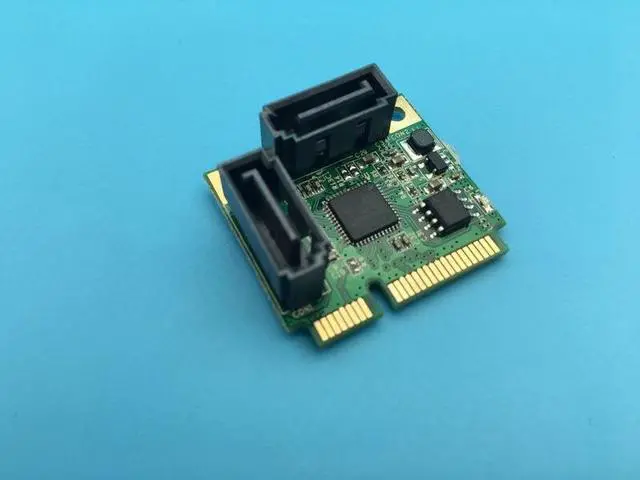

High Quality Mini PCI-Express to 2 Ports SATA 3.0 III 6Gb/s Expansion Card Single Chip Design
- High Quality Mini PCI-Express to 2 Ports SATA 3.0 III 6Gb/s Expansion Card Single Chip Design
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description:
PCI-E single-chip design
Supports two SATA 6Gbps ports
Compliant with PCI-Express Basic Specification Rev 2.0, backward compatible with Rev 1.0
Single-line (x1) PCI-E throughput of up to 5.0 / 2.5 gbps
Compliant with PCI-E Mini Card Electrical
Serial ATA (SATA) interface
Compatible with Serial ATA AHCI (Specification Advanced Host Controller Interface)
Compatible with the bus master IDE ATA controller programming interface Rev 1.0
Supports SATA 3.0 transfer rates up to 6 gbps
Backwards compatible with SATA-II (3 gbps) and SATA-I ( 1.5 gbps) specifications
Supports Gen1m and Gen2m SATA PHY
Supports native command queue (NCQ) and port multiplication
Supports hot-swapping on SATA ports
System Requirements:
Suitable for computer systems with Mini PCI-E slots
Windows 10/8/7 (32/64 bit) / Vista / Server 2003 / XP / 2000 Linux
Package Content:
1 x Mini PCI-Express to SATA Host Controller Card (Included the small white Iron Bracket)
1 x User Manual
1 x Software Driver CD

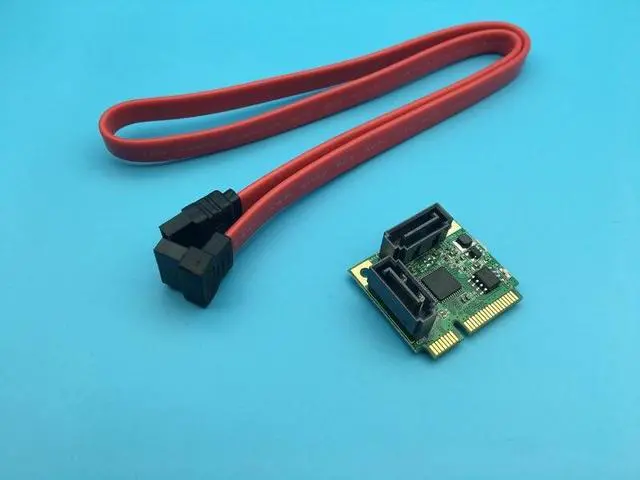

1 x SATA Cable
PCI-E single-chip design
Supports two SATA 6Gbps ports
Compliant with PCI-Express Basic Specification Rev 2.0, backward compatible with Rev 1.0
Single-line (x1) PCI-E throughput of up to 5.0 / 2.5 gbps
Compliant with PCI-E Mini Card Electrical
Specifications
Revision 1.2Serial ATA (SATA) interface
Compatible with Serial ATA AHCI (Specification Advanced Host Controller Interface)
Specifications
Rev 1.2Compatible with the bus master IDE ATA controller programming interface Rev 1.0
Supports SATA 3.0 transfer rates up to 6 gbps
Backwards compatible with SATA-II (3 gbps) and SATA-I ( 1.5 gbps) specifications
Supports Gen1m and Gen2m SATA PHY
Supports native command queue (NCQ) and port multiplication
Supports hot-swapping on SATA ports
System Requirements:
Suitable for computer systems with Mini PCI-E slots
Windows 10/8/7 (32/64 bit) / Vista / Server 2003 / XP / 2000 Linux
Package Content:
1 x Mini PCI-Express to SATA Host Controller Card (Included the small white Iron Bracket)
1 x User Manual
1 x Software Driver CD
1 x SATA Cable
