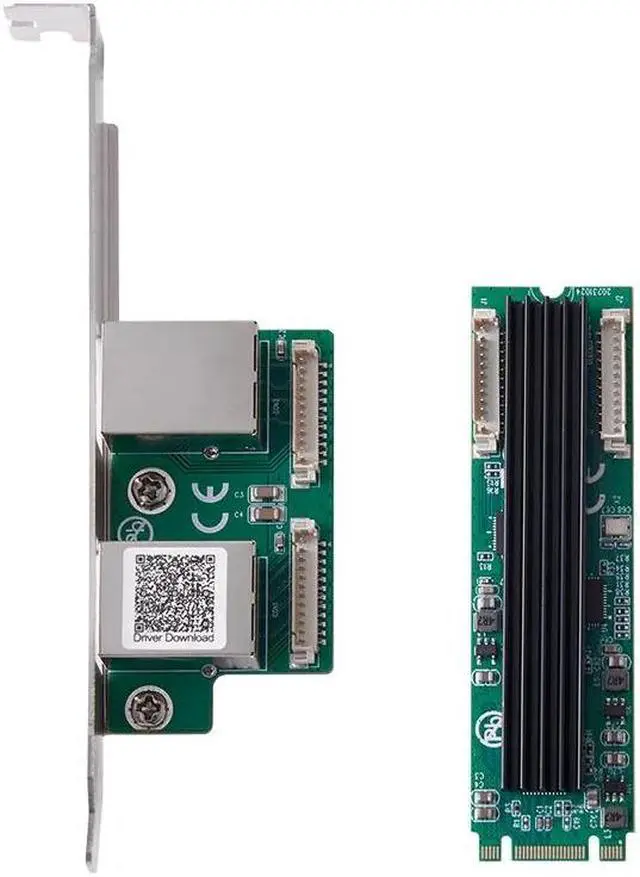

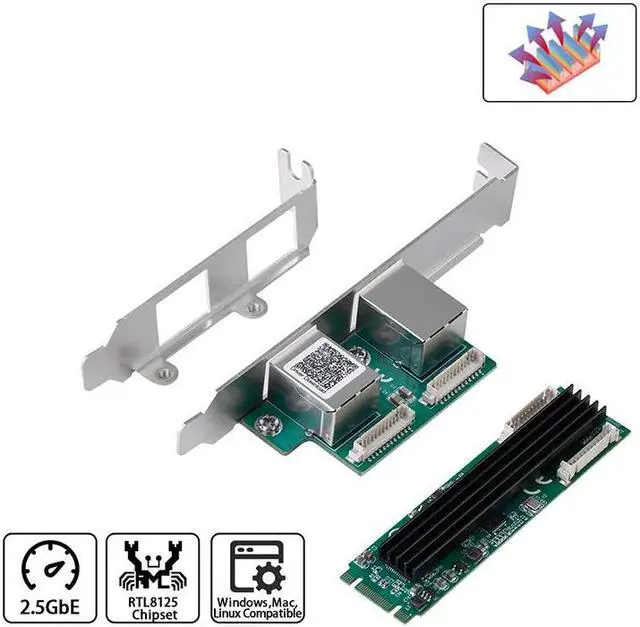

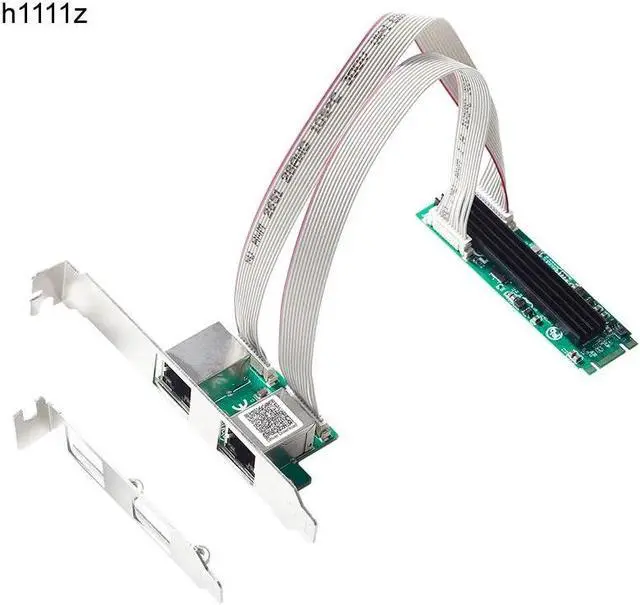

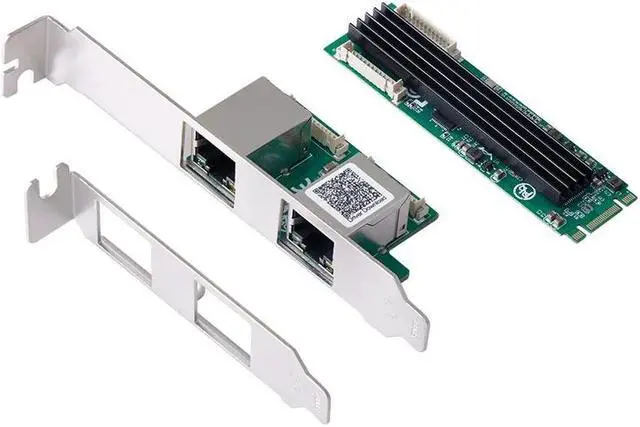

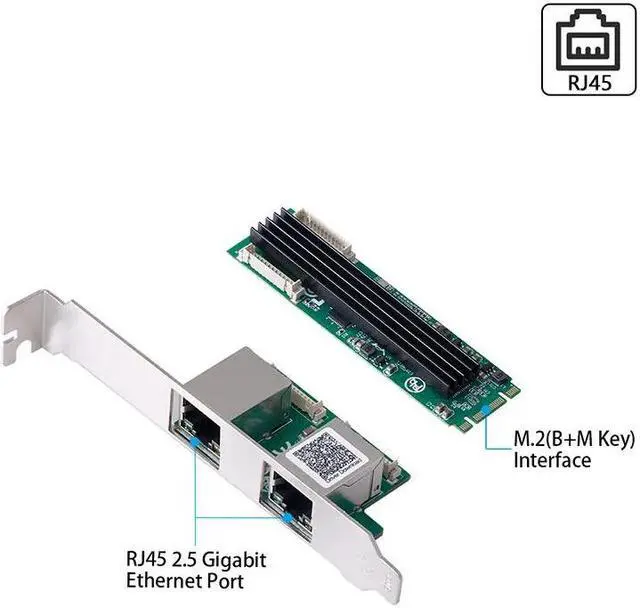

Network Card M.2 to 2 Ports RJ45 2.5G Gigabit Ethernet Adapter NIC 2500mbps B/M Key M2 22*80mm Size RealTek RTL8125B for Desktop

Network Card M. 2 to 2 Ports RJ45 2.5G Gigabit Ethernet Adapter NIC 2500mbps B/M Key M2 22*80mm Size RealTek RTL8125B for Desktop
About Description:
Feature:
1. Supports 2.5G Lite (1G data rate) mode
2. Supports PCI Express 2.1
3. Supports 2 high performance 2.5 -Gigabit LAN ports
4. Auto-Negotiation with Extended Next Page capability (XNP)
5. Compatible with NBASE-TTM Alliance PHY Specification
6. Supports pair swap/polarity/skew correction
7. Crossover Detection & Auto-Correction
8. Supports 1-Lane 2.5 /5Gbps PCI Express Bus
9. Supports hardware ECC (Error Correction Code) function
10. Supports hardware CRC (Cyclic Redundancy Check) function
11. Transmit/Receive on-chip buffer support
12. Supports PCI MSI (Message Signaled Interrupt) and MSI-X
13. Supports power down/link down power saving/PHY disable mode
14. Supports ECMA-393 ProxZzzy Standard for sleeping hosts
15. Supports LTR (Latency Tolerance Reporting)
16. Supports 32-set 128-byte Wake-Up Frame pattern exact matching
17. Supports Microsoft WPI (Wake Packet Indication)
18. Supports PCIe L1 substate L 1.1 and L 1.2
19. Compatible with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab
20. Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization
21. Supports IEEE 802.1Q av credit-based shaper algorithm
22. Supports IEEE 802.1P Layer 2 Priority Encoding
23. Supports IEEE 802.1Q VLAN tagging
24. Supports IEEE 802.1 ad Double VLAN
25. Supports IEEE 802.3 az (Energy Efficient Ethernet)
26. Supports IEEE 802.3 bz ( 2.5GB ase-T)
27. Supports Full Duplex flow control (IEEE 802.3 x)
28. Supports jumbo frame to 16K byte
29. Supports standard and low profile chassis
30. Support ESXI 6.7 ( 7.0 not support
31. Support PVE/ikuai/unraid 6.9. 2/OpenWrt
System Requirements:
Windows OS
Linux, MAC OS and DOS
One free M. 2 key M or key B slot

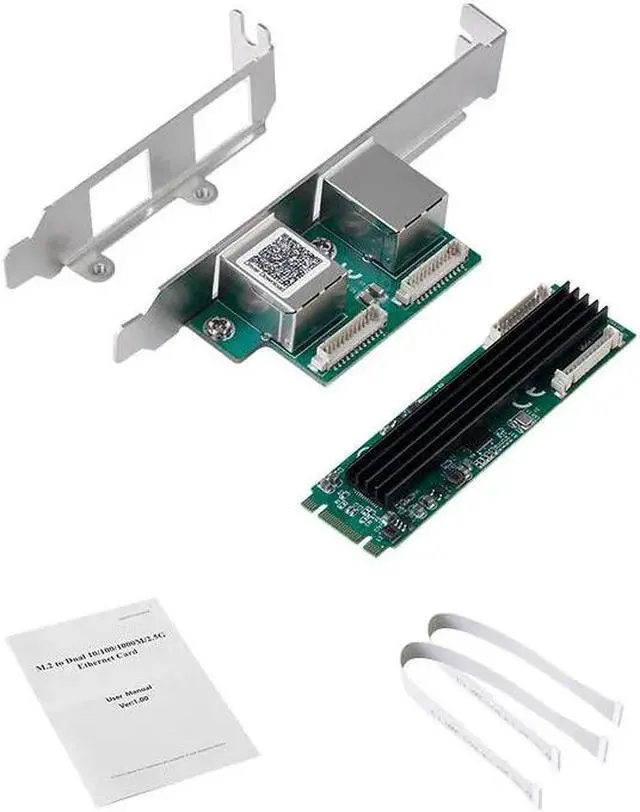

You'll receive:
1 x M. 2 to Dual Port RJ45 10/100/1000M/ 2.5G Ethernet Network Card
1 x User Manual
1 x Low Profile Bracket
Please check pictures for more details.
