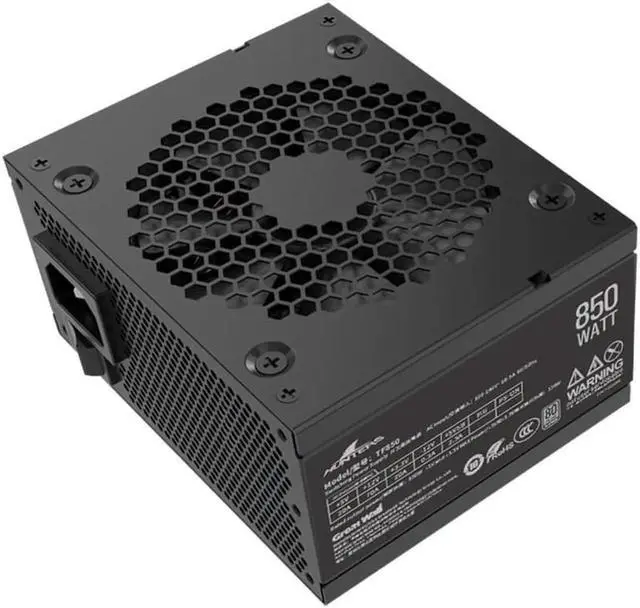

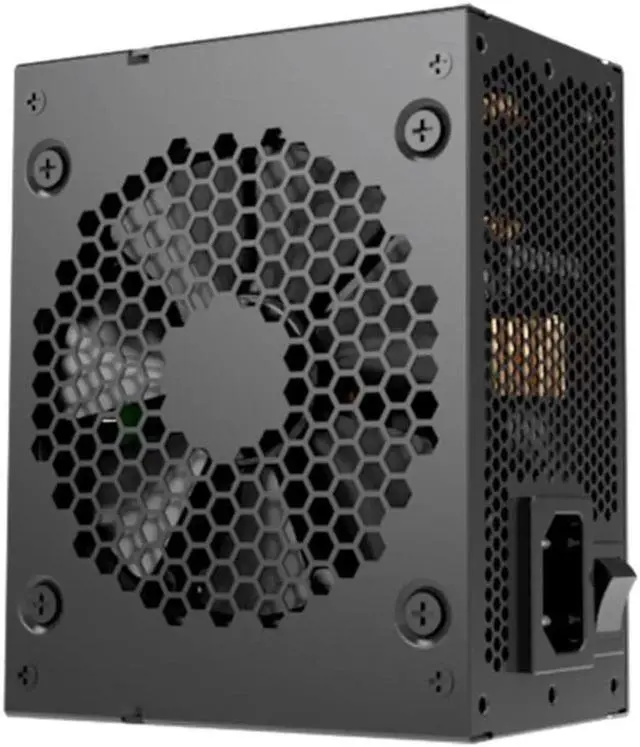

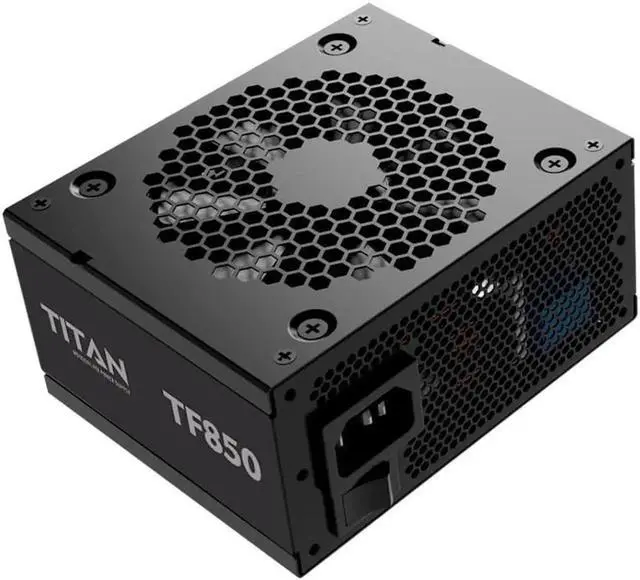

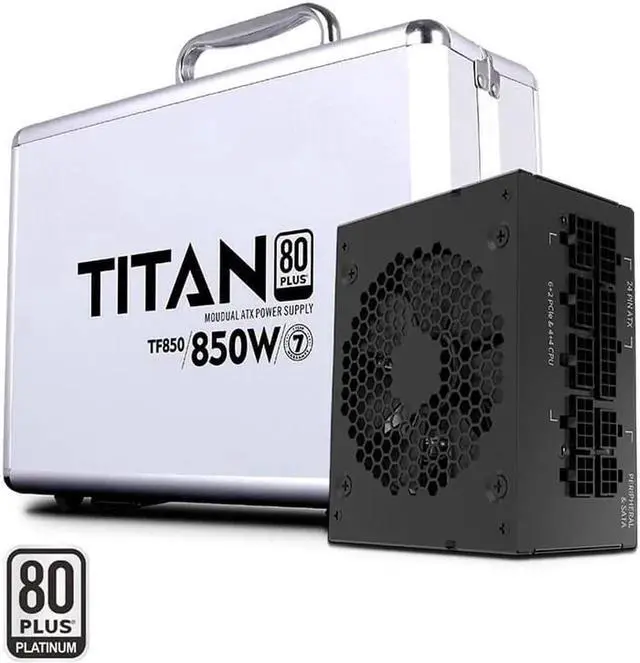

Great Wall TF850 Platinum SFX Power Supply, 850W 80 Plus Platinum Medal Full Module, 90mm Intelligent Temperature Control Fan, VGA TURBO Graphics Card Power Supply Enhancement Technology

Basic parameters

Power type type desktop power supply

Scope of application support Intel and AMD full series CPU

Motherboard interface 20+4pin

PFC type active type

Power module full module power supply

80Plus certification platinum medal

Rated power 750W

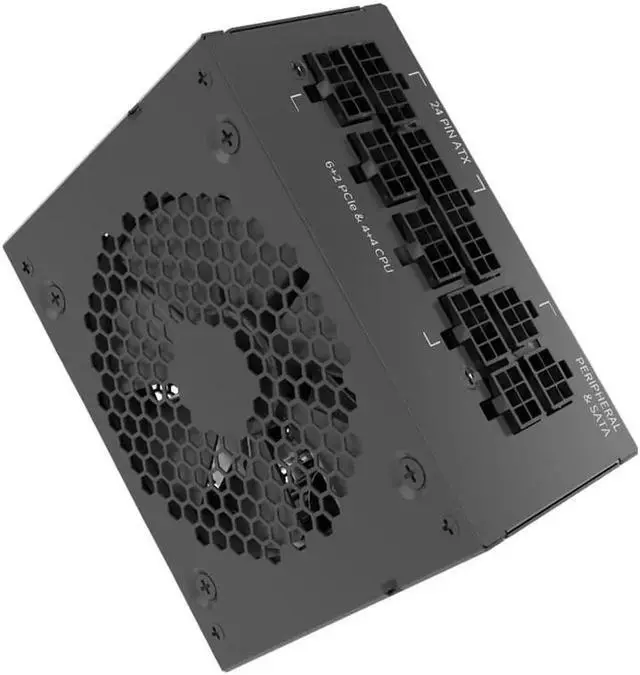

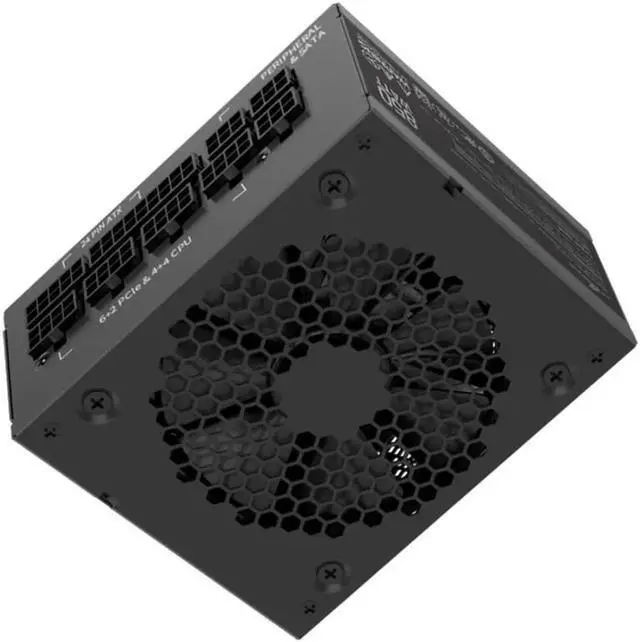

Power interface

Motherboard interface (20+4pin) 1

CPU interface (4+4pin) 2

4 graphics card interface (6+2pin) 4

SATA interface 8

3 power supply interface (4pin) 3

Performance parameters

AC input 100-240V (width), 10-5A, 60/50Hz

3.3V output current 20A

5V output current 20A

5VSB output current 2.5A

12V output current 62.5A

-12V output current 0.3A

Other parameters

The conversion efficiency is as high as More than 90%

Protective function overvoltage protection OVP, over -current protection OCP, over -power protection OPP, short -circuit protection SCP, low voltage protection UVP, over -temperature protection OTP, waves protection SPD
