1Pcs NF-A9x14 PWM/Black 9cm Fan (SSO Magnetically Stable Bearing/Thin CPU Fan/4-Pin Chassis Fan) 14mm, Ultra-Quiet(NF-A9x14 PWM)
- HDD Cooling Fans
- 1Pcs NF-A9x14 PWM/Black 9cm Fan (SSO Magnetically Stable Bearing/Thin CPU Fan/4-Pin Chassis Fan) 14mm , Ultra-Quiet
+
+
Overview
Specs
Reviews
HDD Cooling Fans

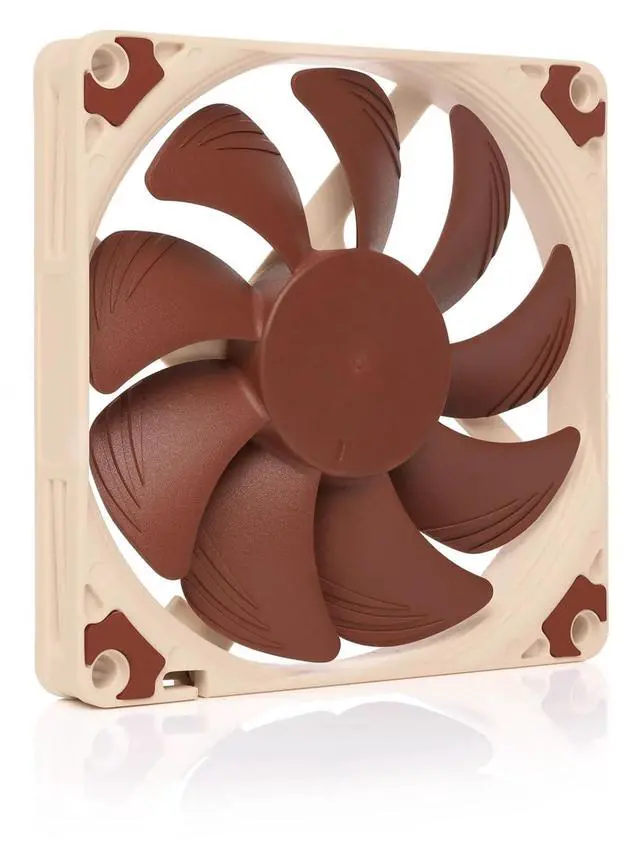

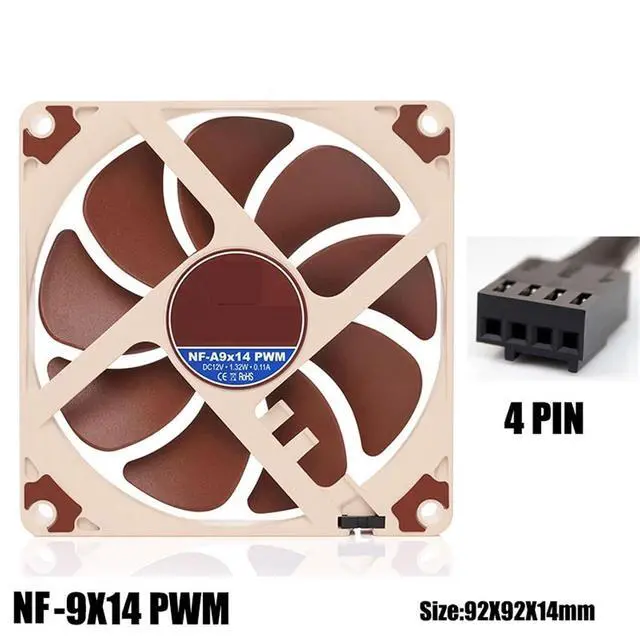

NF-A9X14 PWM

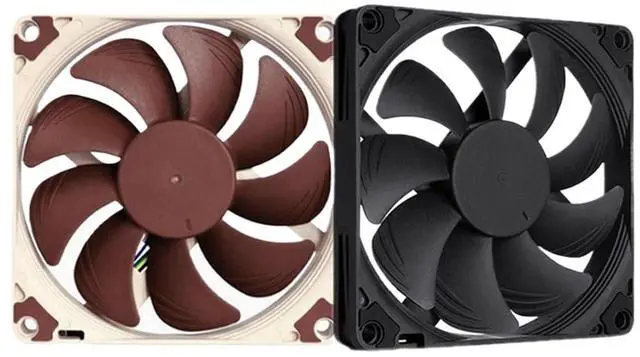

NF-A9X14 PWM Black
14mm low profile design
Measuring only 14mm in thickness, the NF-A9x14 is much slimmer than standard 92x25mm fans. This makes it ideal for all applications where standard fans would take up too much space, such as low profile CPU coolers in HTPC builds or server environments.
AAO frame
AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Low-Noise Adaptor
The NF-A9x14 is supplied with a (L.N.A.) that reduces the maximum fan speed from 2200 to 1700rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1200rpm or to cap the maximum speed when using automatic PWM control.
==========
Model Number : NF-A9x14
Voltage : 12V
Fan Speed : 500 - 2200rpm
Used For : Case
Power Interface : 4PIN
Noise : 17dBA
Fan Life : 50000 hrs
Blade Quantity : 9
Bearing : Two Ball Bearing
Fan Size : 90 MM
Power (W) : 1.2W
NF-A9X14 PWM
NF-A9X14 PWM Black
14mm low profile design
Measuring only 14mm in thickness, the NF-A9x14 is much slimmer than standard 92x25mm fans. This makes it ideal for all applications where standard fans would take up too much space, such as low profile CPU coolers in HTPC builds or server environments.
AAO frame
AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Low-Noise Adaptor
The NF-A9x14 is supplied with a (L.N.A.) that reduces the maximum fan speed from 2200 to 1700rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1200rpm or to cap the maximum speed when using automatic PWM control.
==========
Model Number : NF-A9x14
Voltage : 12V
Fan Speed : 500 - 2200rpm
Used For : Case
Power Interface : 4PIN
Noise : 17dBA
Fan Life : 50000 hrs
Blade Quantity : 9
Bearing : Two Ball Bearing
Fan Size : 90 MM
Power (W) : 1.2W
