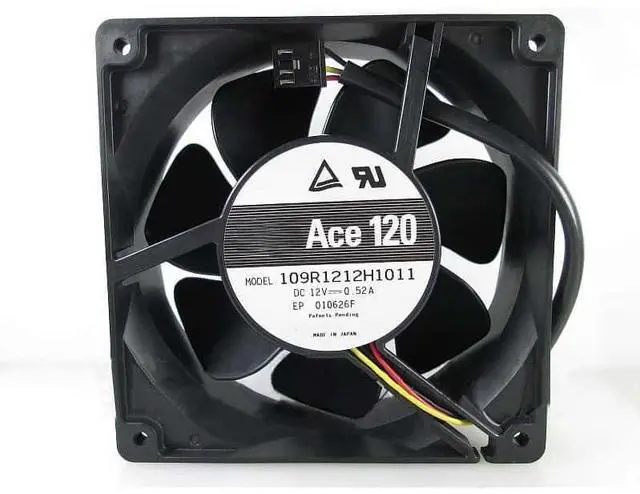

for Sanyo 12cm Server case Fan 109R1212H1011 DC12V 0.52A 3-Wire Silent Inverter Fan
- Working voltage: DC 12V,Input current: 0.52A
- Fan Mold Number: 109R1212H1011
- Product Size: 120mmx120mmX38mm (equivalent to 120*120*38mm)
- Rotational speed reference: 3000RPM,Air volume reference: 136.60CFM.
- Life expectancy: 60,000 hours,Noise reference: 36dBA.109R1212H1011 12V 0.52A 12038 12CM server chassis cooling fan
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: 109R1212H1011
Size: 120*120*38MM
Bearing structure: B: BALL (ball bearing)
Voltage: DC 12V
Current: 0.52A
Speed: 3000 (R/min)
Air volume: 136.60 (CFM)
Noise: 36 (dB-A)
Weight: 290(g)
Frame: one-time injection molding, PBT + 30% glass wire + VO grade flame retardant
Fan blade: one-time injection molding, PBT + 30% glass wire + VO grade flame retardant
Bearing: imported with high precision, long life and low noise Ball bearing
Wiring method: 3PIN three-wire with speed measurement
Fan rotation direction: counterclockwise when viewed from the direction of the fan blade
Insulation resistance: more than 500 megohms
Voltage range: rated voltage +15%
Operating ambient temperature (): -2075 B: (ball bearing)
Life span: working environment temperature 40 B: (ball bearing) 60000 (hours)
Size: 120*120*38MM
Bearing structure: B: BALL (ball bearing)
Voltage: DC 12V
Current: 0.52A
Speed: 3000 (R/min)
Air volume: 136.60 (CFM)
Noise: 36 (dB-A)
Weight: 290(g)
Frame: one-time injection molding, PBT + 30% glass wire + VO grade flame retardant
Fan blade: one-time injection molding, PBT + 30% glass wire + VO grade flame retardant
Bearing: imported with high precision, long life and low noise Ball bearing
Wiring method: 3PIN three-wire with speed measurement
Fan rotation direction: counterclockwise when viewed from the direction of the fan blade
Insulation resistance: more than 500 megohms
Voltage range: rated voltage +15%
Operating ambient temperature (): -2075 B: (ball bearing)
Life span: working environment temperature 40 B: (ball bearing) 60000 (hours)
