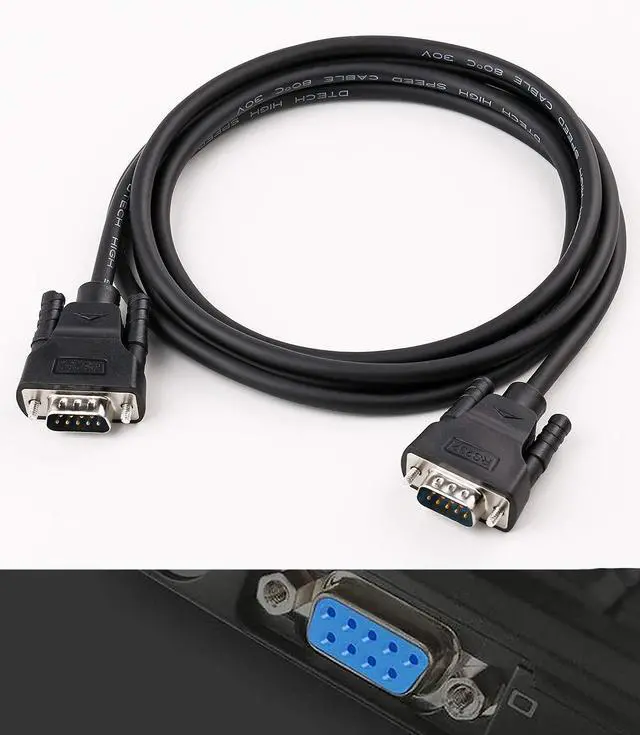

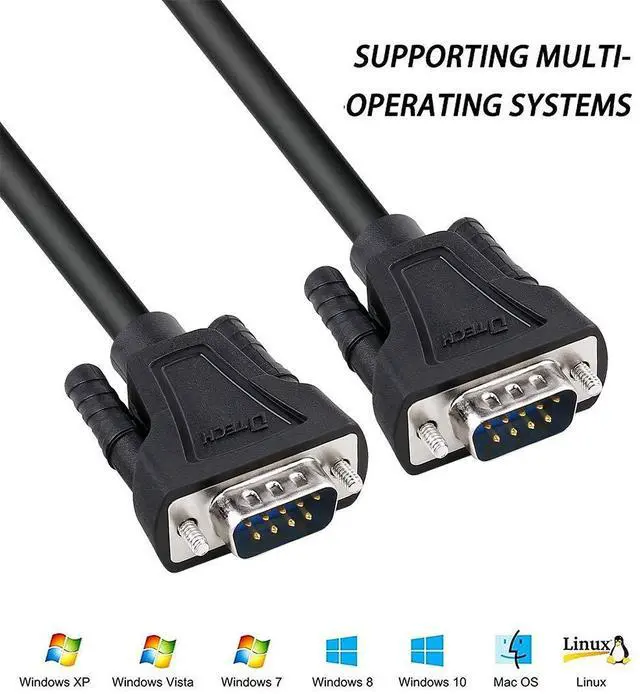

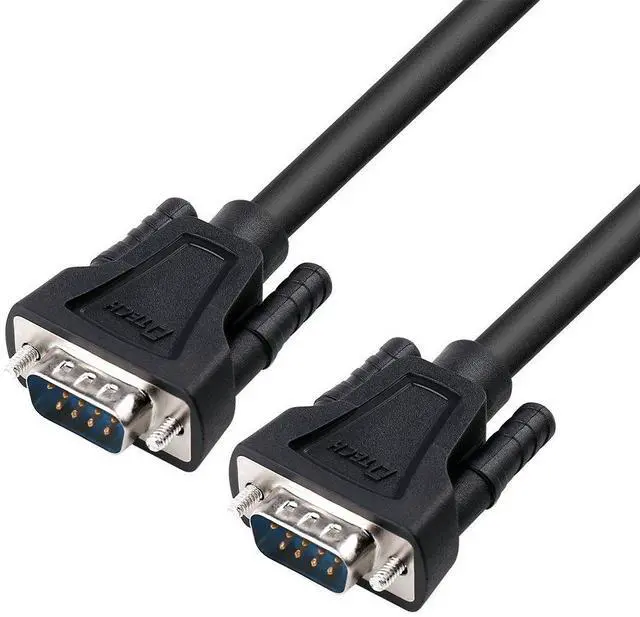

RS-232 Cable 10ft RS232 Serial Cable Male to Male 9 Pin DB9 Cord Straight Through

Transfer data between two devices using a serial communication protocol

If your equipment require all 9 pins (straight through), take this 10ft RS232 serial cable wherever you need it, It allows you to add your peripherals to an application or replace the cables.

The wires inside are connected to the pins in the order of the standard wire color code (black brown red orange etc.), 9 pin serial cable makes hook-up a breeze when you need to cut the cable and make some other wires to the pins.

This DB9 male to male adapter cord is with gold plated pins for superior corrosion resistance ensuring a solid connection.

The RS-232 cable connectors are equipped with a pair of thumbscrews for securing the plug to the female socket.

You can use this long serial port extension RS232 cable to have your units side by side, make your work easy than ever before.

DB9 male to male cable for connecting RS232 devices below (partial):

Touchscreen

Telescope

vinyl cutting machine

Modem

GPS

network equipment

radio transceiver

stereo system subwoofer/speaker set

sewing machine

weather station

Or controller to a remote control camera

...

Important Note:

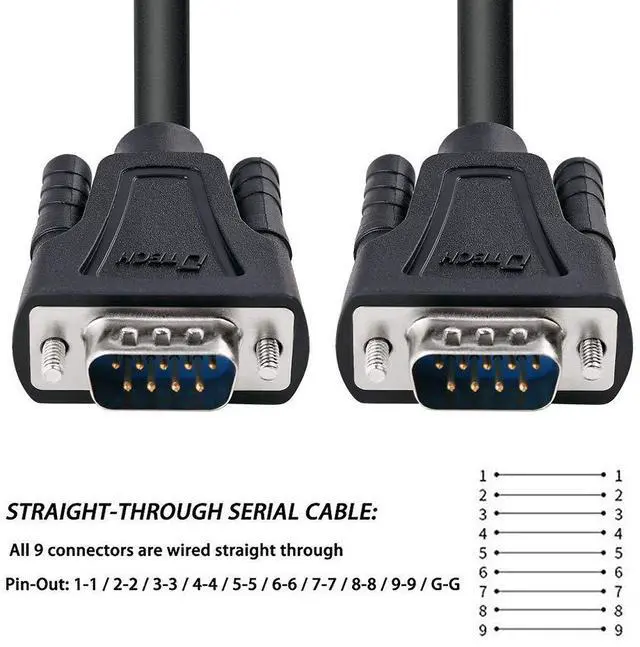

3)this is a serial straight cable, DO NOT perform crossover (Null Modem) function.

4) RS232 cable is shielded with standard Foil-Al layer shielding as most cables do, DB9 male to male cord fits for most of jobs. But if there are big mess of interference at your work area, you may need a special heavy duty shielding cable(copper braided + AL-foil).

Item Specifications:

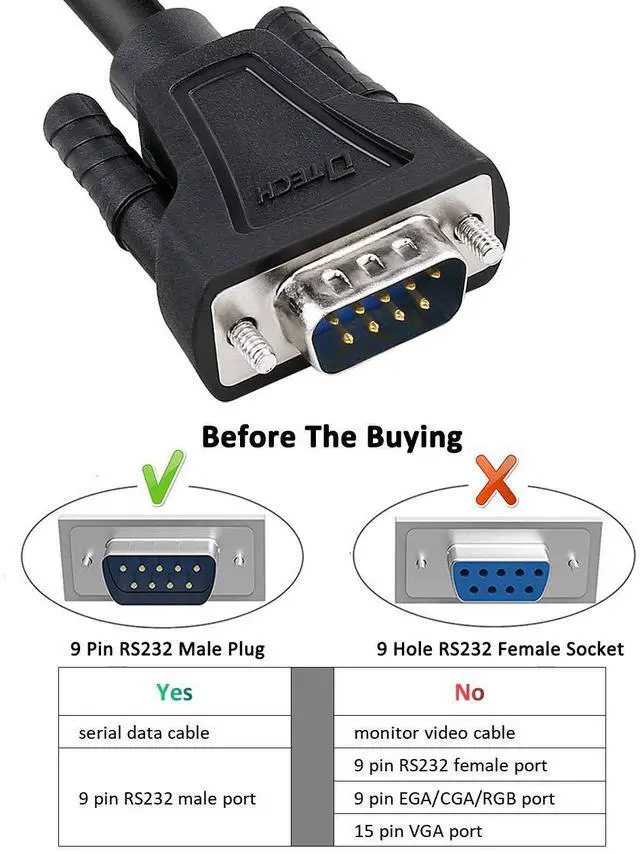

Connectors: DB9 to DB9 (Male-Male)

Interface Surface: Nickel-plated

Pins Surface: Gold-plated

Wire Gauge: 30 AWG

Cable Diameter: 6mm

Item Length: approx 10 ft (3 meter)

Color: Black

Whats Included:

1 x Serial to Serial Cable 10ft

1 x User Manual
