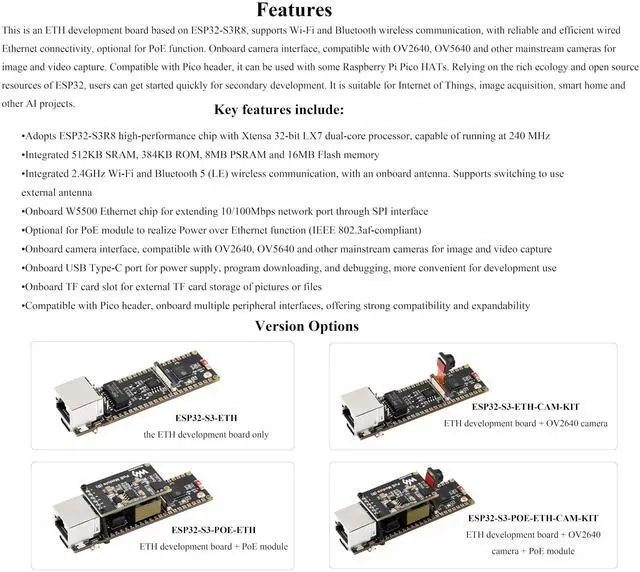

Features

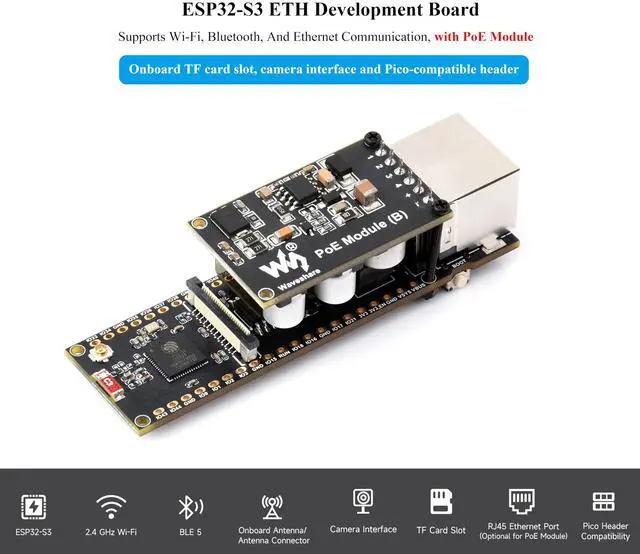

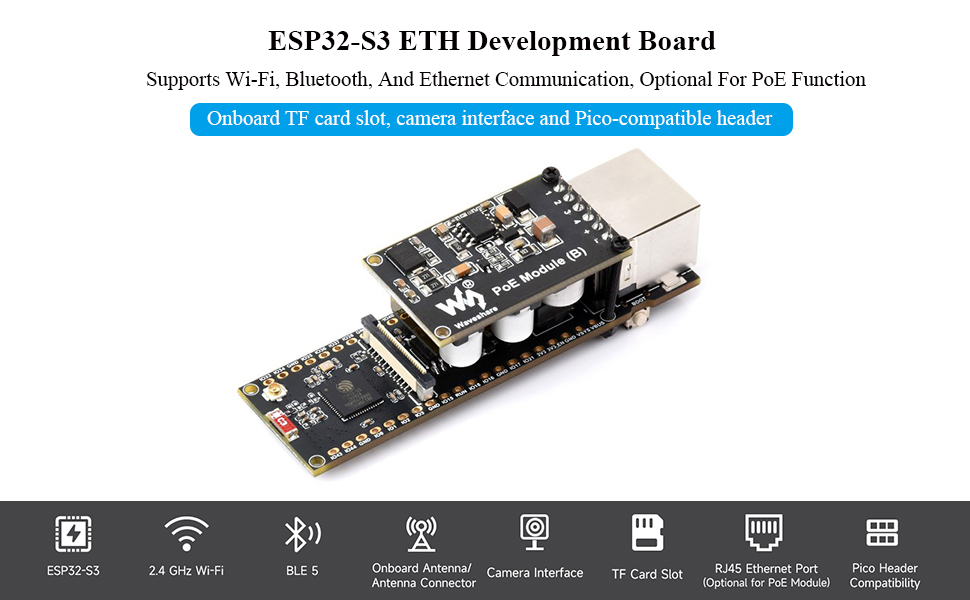

This is an ETH development board based on ESP32-S3R8, supports W--F-i and Blue--too--th wire--less communication, with reliable and efficient wired Ethernet connectivity, optional for PoE function. Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs. Relying on the rich ecology and open source resources of ESP32, users can get started quickly for secondary development. It is suitable for Internet of Things, image acquisition, smart home and other AI projects.
Key features include:

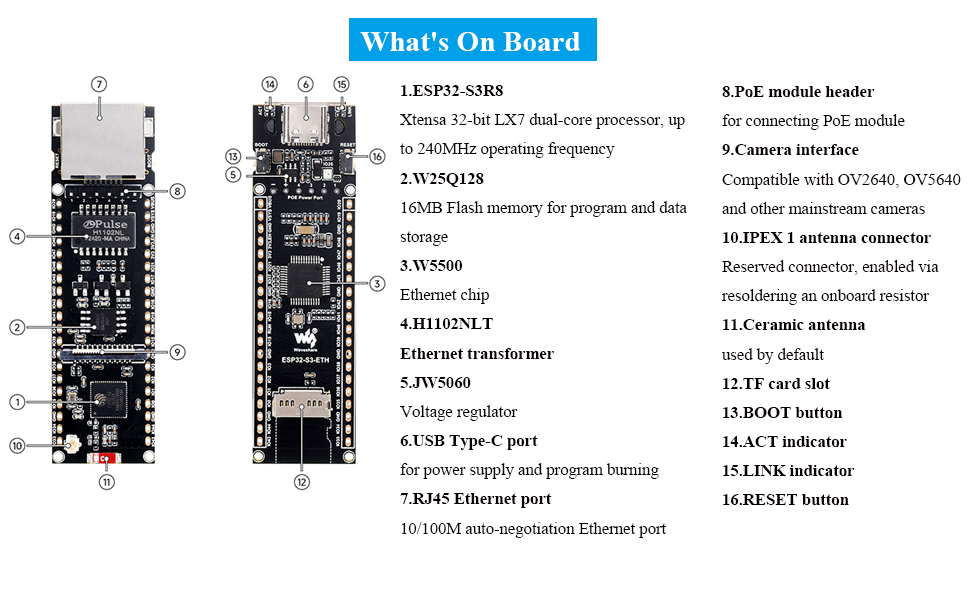

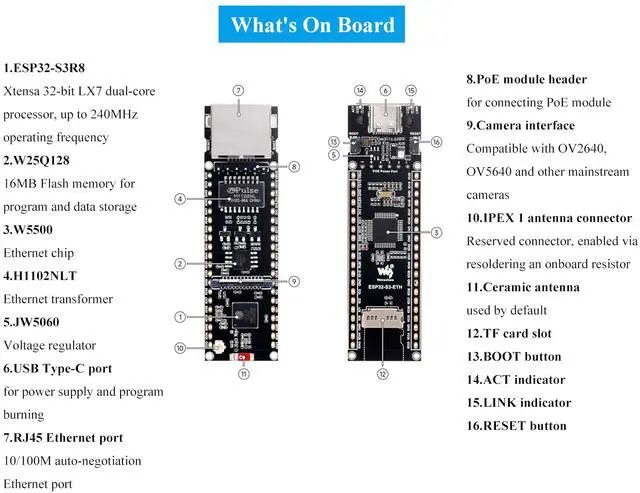

- Adopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory
- Integrated 2.4GHz W--F-i and Blue--too--th 5 (LE) wire--less communication, with an onboard antenna. Supports switching to use external antenna
- Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface

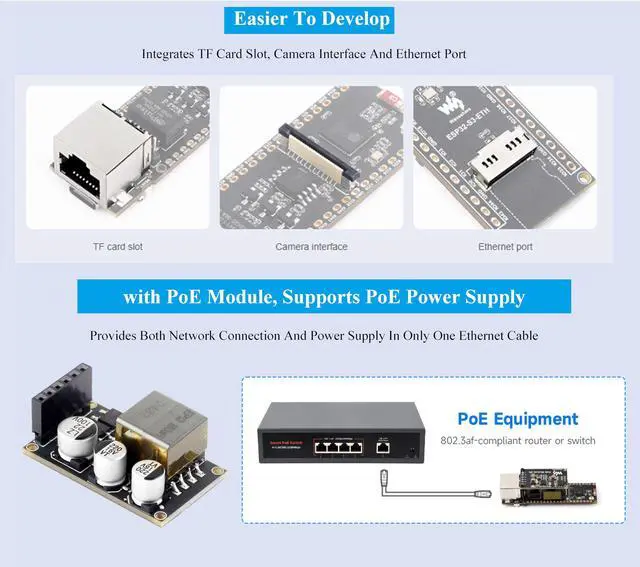

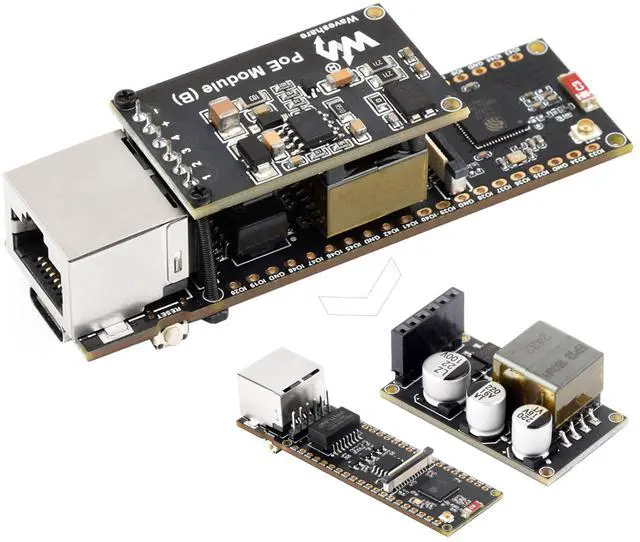

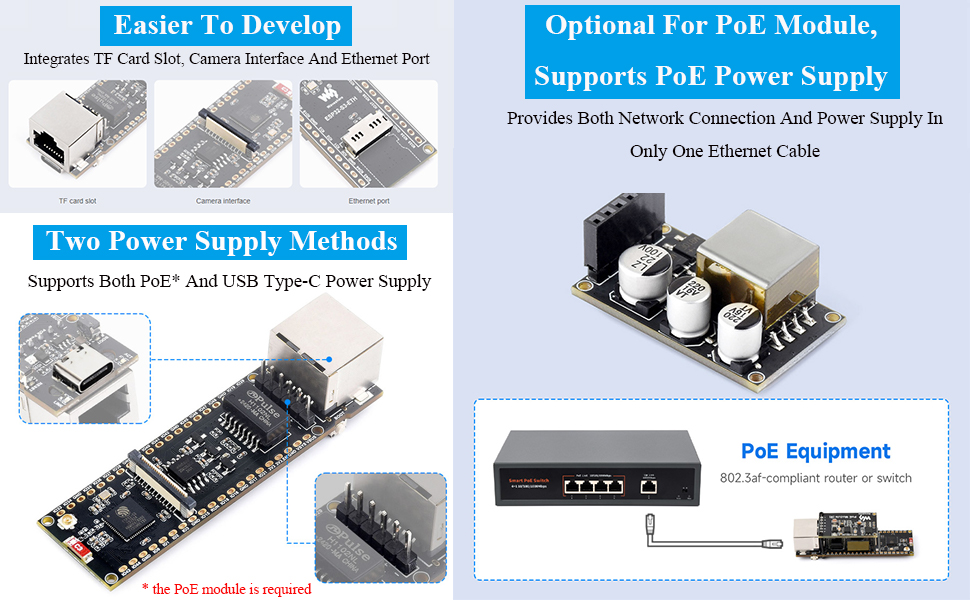

- Optional for PoE module to realize Power over Ethernet function (IEEE 802.3af-compliant)
- Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture

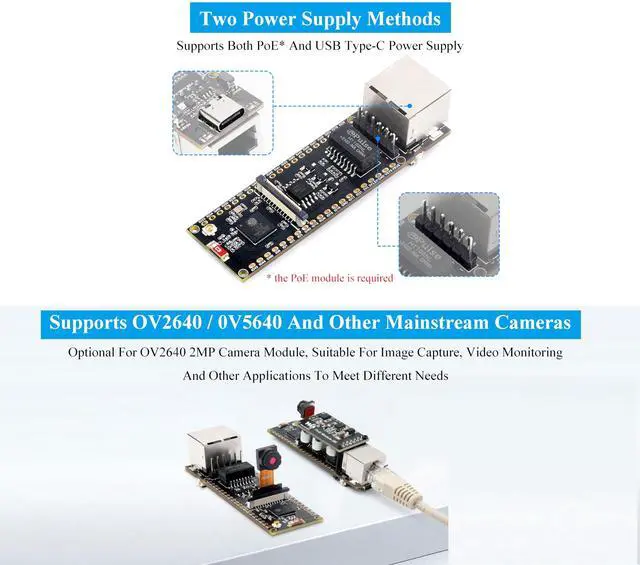

- Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
- Onboard TF card slot for external TF card storage of pictures or files

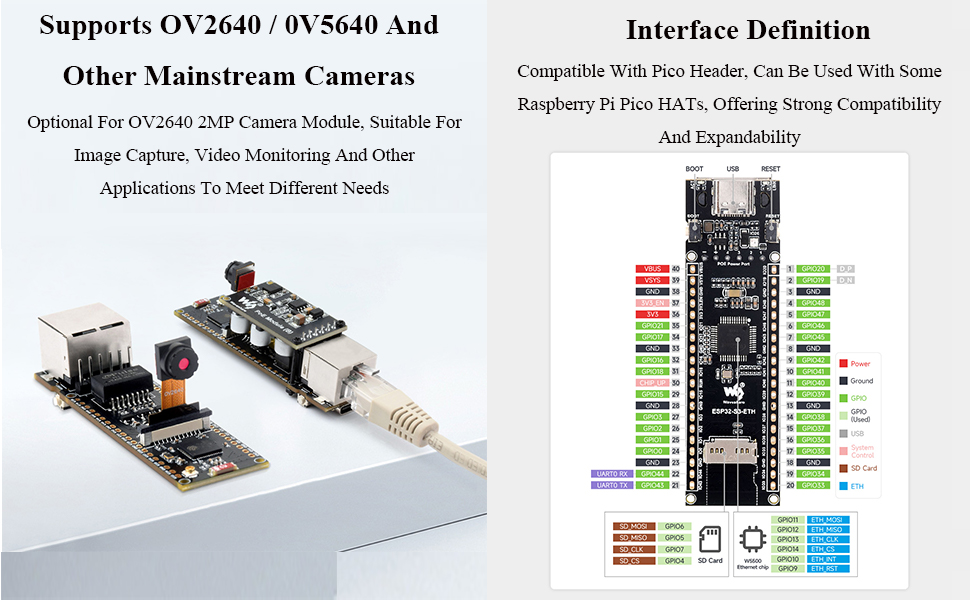

- Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability
