ESP32-S3 Mini Development Board with 2.4GHz Wi-Fi,Bluetooth 5 Support,Based on ESP32-S3FH4R2 Dual-Core Processor,240MHz Running Frequency, USB Type-C Port
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE).Built in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM
- Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, 34 × GPIO pins allows flexibly configuring pin functions.4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESP32-S3 Mini Development Board, Based On ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5
Features

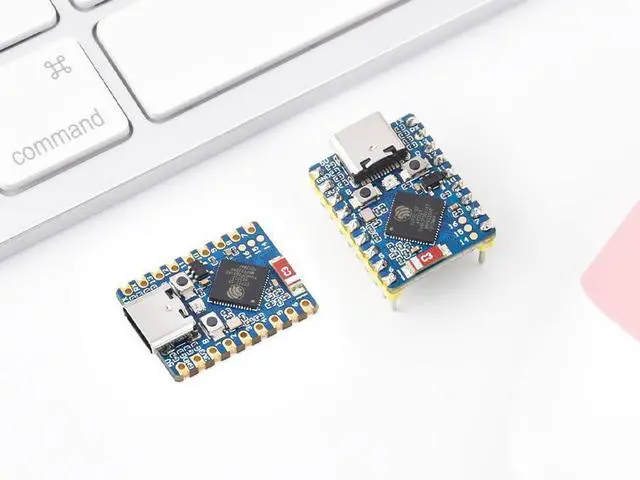

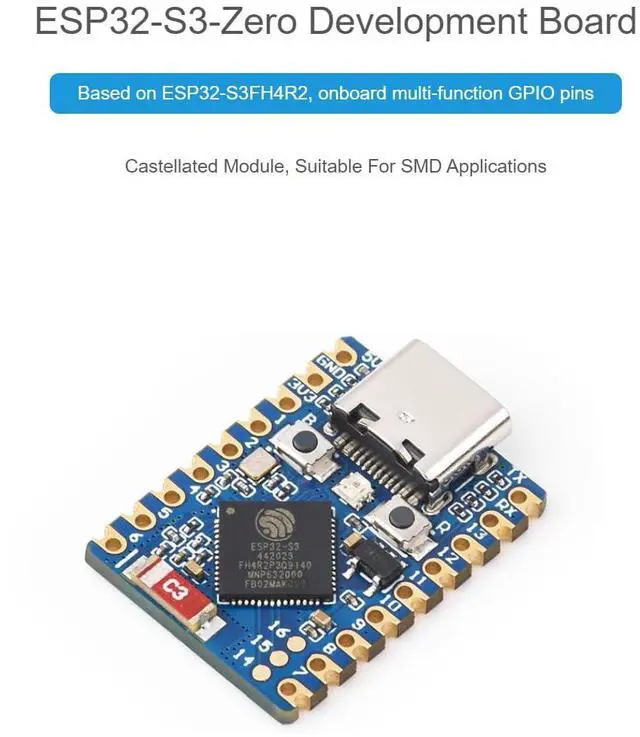

1.ESP32-S3-Zero Development Board
Based on ESP32-S3FH4R2, onboard multi-function GPIO pins
Castellated Module, Suitable For SMD Applications
2.Support C/C++, MicroPython
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

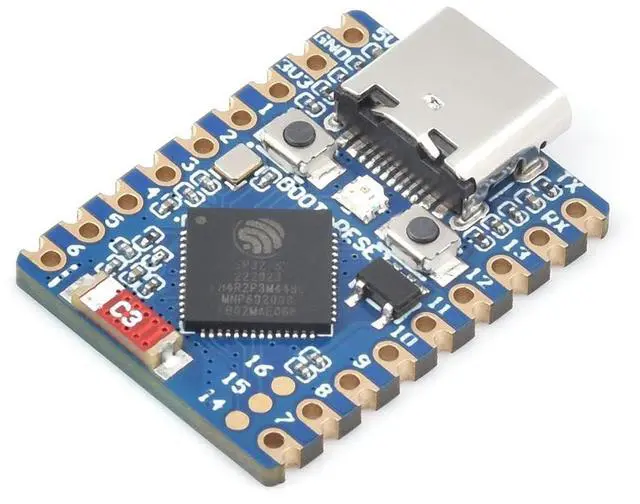

What's On Board
1.ESP32-S3FH4R2 dual-core processor
up to 240MHz operating frequency
2.USB Type-C Port
3.ME6217C33M5G
low dropout LDO, 800mA (Max)
4.WS2812 RGB LED
5.2.4G ceramic antenna
6.BOOT button
Press it and then press the RESET button to enter download mode
7.RESET button

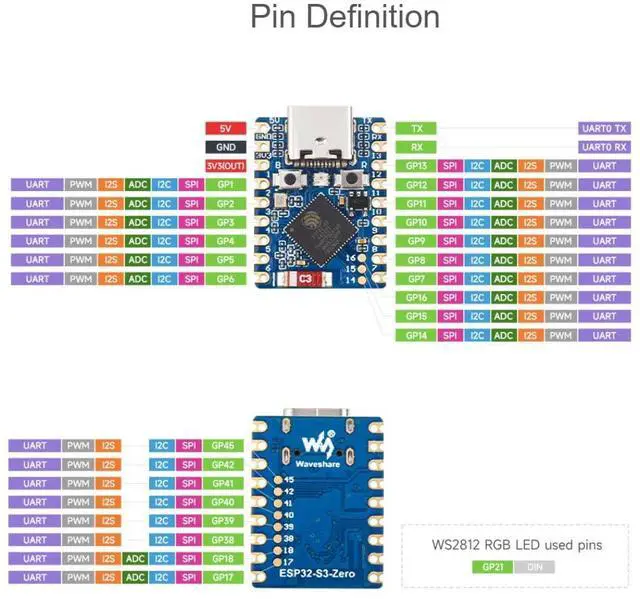

8.ESP32-S3FH4R2 pins
Package Content
ESP32-S3-Zero x1
Note
Development Resources is provided , please contact us if you have any problem .
