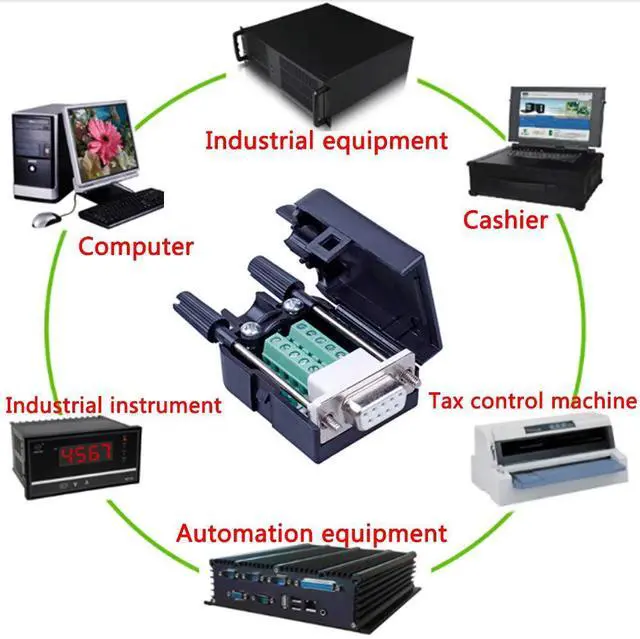

It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
Key Features

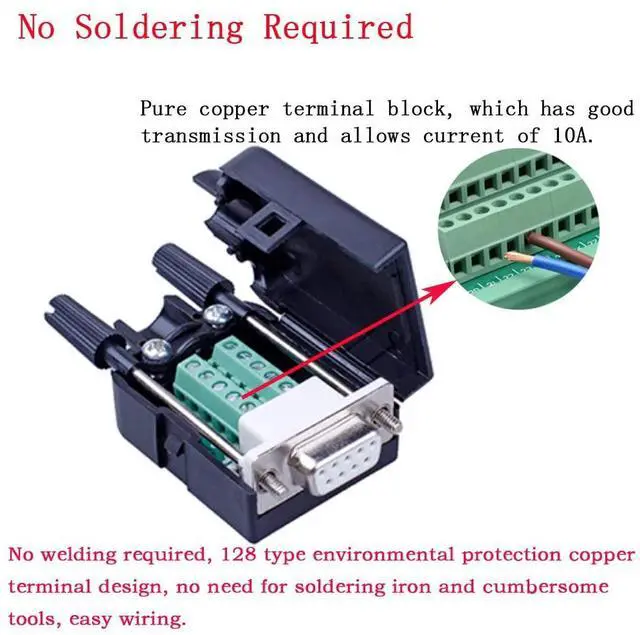

SOLDERLESS: No Welding Required
128 type copper terminal design, no need for soldering iron and cumbersome tools, easy wiring. The housing is designed with a folding buckle for easy assembly and disassembly without tools.

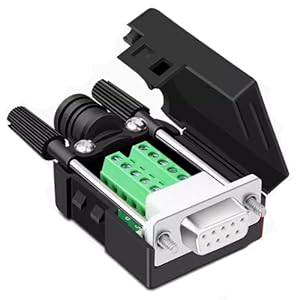

Pure Copper Plated Joints
Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of PP engineering material, which is soft and durable.
REDUCE ERRORS

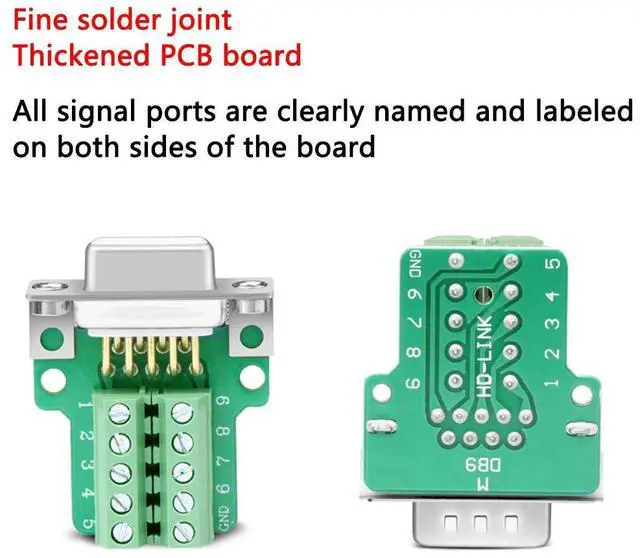

All signal ports are clearly named and labeled on both sides of the board for quick wiring.

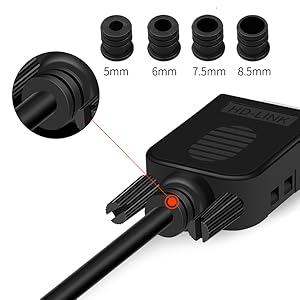

4 different sizes of tail pipe
Equipped with 4 different sizes of tail pipe, the material is soft and resistant to bending. Make sure that the pulling and sway of the cable does not affect the internal wiring during use.
Folding snap-on housing
The shell adopts folding snap type, PP material, which can be repeatedly folded and used multiple times to improve assembly efficiency

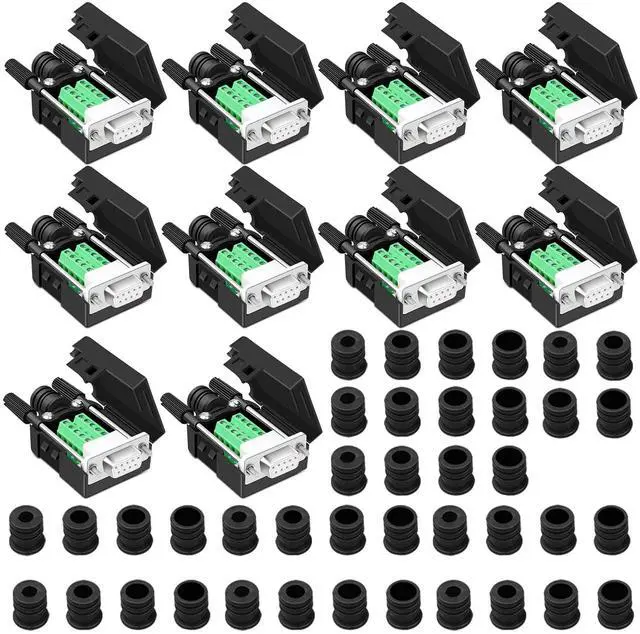

Package Includes
10 x DB9 Female Solderless Connectors
10x cable pressing plate
20x Screws
20x Long bolts
10x 5mm tail pipe
10x 6mm tail pipe
10x 7.5mm tail pipe
10x 8.5mm tail pipe
Technical Specifications:
Usage Method
Step 1
Release the terminal
Step 2
Core wire peeling(about 3mm), Place the core wire in the hole and tighten
Step 3
Press the cable with a crimp
Step 4
Check wiring and cover the casing
It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
Key Features
SOLDERLESS: No Welding Required
128 type copper terminal design, no need for soldering iron and cumbersome tools, easy wiring. The housing is designed with a folding buckle for easy assembly and disassembly without tools.
Pure Copper Plated Joints
Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of PP engineering material, which is soft and durable.
REDUCE ERRORS
All signal ports are clearly named and labeled on both sides of the board for quick wiring.
4 different sizes of tail pipe
Equipped with 4 different sizes of tail pipe, the material is soft and resistant to bending. Make sure that the pulling and sway of the cable does not affect the internal wiring during use.
Folding snap-on housing
The shell adopts folding snap type, PP material, which can be repeatedly folded and used multiple times to improve assembly efficiency
Package Includes
10 x DB9 Female Solderless Connectors
10x cable pressing plate
20x Screws
20x Long bolts
10x 5mm tail pipe
10x 6mm tail pipe
10x 7.5mm tail pipe
10x 8.5mm tail pipe
Technical Specifications:

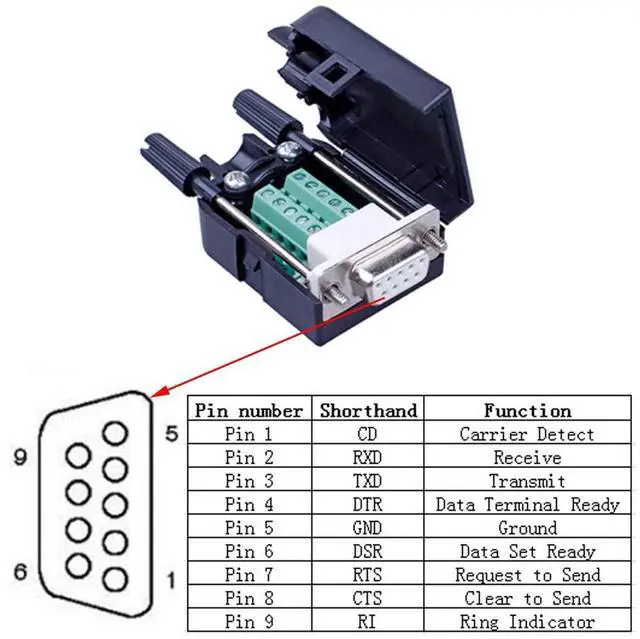

| Name | DB9 Solderless Module |
| Plug type | Female |
| Connector material | pure copper plated joint |
| Contact Material | Copper |
| Housing Material | PP engineering materials |
| Pin Pitch | 3.81mm/0.15in |
| Cable Specification | 26-16 AWG |
| Torque | 0.2Nm (1.7Lb-In.) |
| Size | 52 mm×34 mm×21.5 mm/ 2.05?×1.34?×0.85? |
| Shell Type | folding snap-on |
| Opening size (cable port) | 10.5mm/0.41? |
| Accessories | housing, screw, card line buckle |

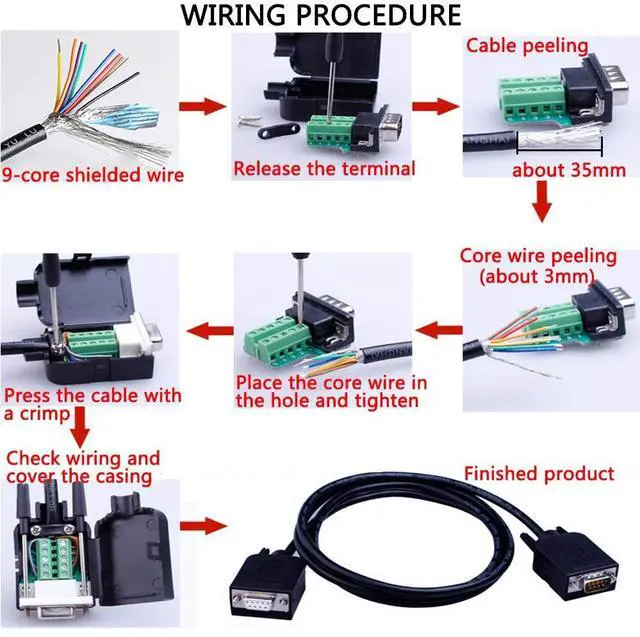

Usage Method
Step 1
Release the terminal
Step 2
Core wire peeling(about 3mm), Place the core wire in the hole and tighten
Step 3
Press the cable with a crimp
Step 4
Check wiring and cover the casing
