40mm Fan 4020-40mm40mm20mm Dual Ball Bearing Computer Fan,3D Printer Fan,Cooling Fan,12V DC Fan,2pin,UL Certified,Long Life,High Speed (1 Pack)

Be the first to review this product...
  • 40mm fan 4020 -- 40mm*40mm*20mm Dual Ball Bearing Cooling Fan,2pin,UL Certified,Long life,High Speed
  • Model: DFB402012H ; Speed: 9000 RPM ; Current: 0.15 A ; Power: 1.8 W ; Air Flow: 0.275 (m3/min) 9.7(CFM) ; Static Pressure: 100(Pa) 0.402(Inch-H2O) ; Noise: 36(dB-A) ; Weight: 28 g
  • Rating Voltage: 12VDC ; Voltage Range: 5.0~13.2VDC ; Operating Temperature: -10°C~70°C ; Expected Life: 70,000Hours @ 40°C
  • Material: Housing: Plastic(Black) UL94V-0 ; Impeller:  Plastic(Black) UL94V-0 ; Bearing: Ball Bearing ; Lead Wire: UL1007 AWG26 +:Red, -:Black ; Cable Length:20cm Or 8 inches ; Connecter: 2Pin

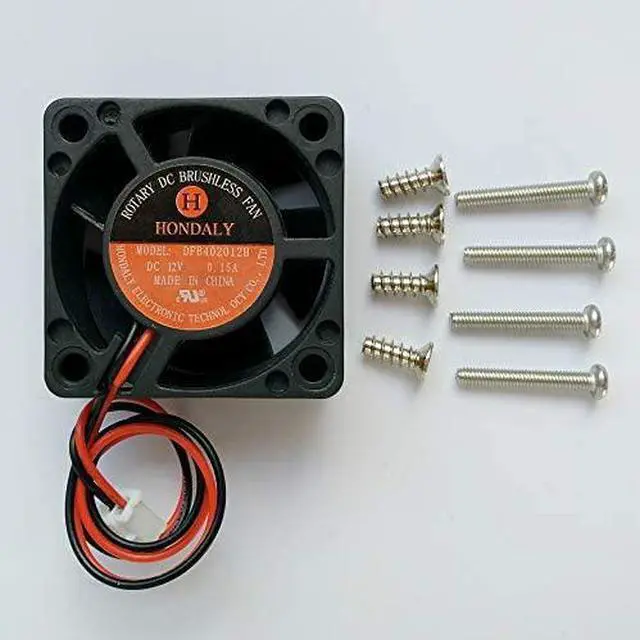

  • Package include: 1 PCS 40x40x20 fan(Speed:9000RPM) ; 4 PCS Mount Screws( M4x10mm) ; 4 PCS Mount Screws (M3x20mm)
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
*Professional quality Dual Ball Bearing fan,Certified by UL
*You not have to pay extra for screws to attach the fan
*Package include: 1 PCS 4020 High Speed fan include mounting screws
Specification:
Model: DFB402012H
Speed: 9000 RPM
Current: 0.15 A
Power: 1.8 W
Air Flow: 0.275 (m3/min) 9.7(CFM)
Static Pressure: 100(Pa) 0.402(Inch-H2O)
Noise: 36(dB-A)
Weight: 28 g

General Specification
Rating Voltage: 12 VDC
Voltage Range: 5.0~13.2 VDC
Operating Temperature: -10°C~70°C
Expected Life: 70,000 Hours @ 40°C
Material:
Housing: Plastic(Black) UL94V-0
Impeller: Plastic(Black) UL94V-0
Bearing: Ball Bearing
Lead Wire: UL1007 AWG26 +:Red, -:Black
Cable Length: 20 cm Or 8 inches
Connecter: 2 Pin
