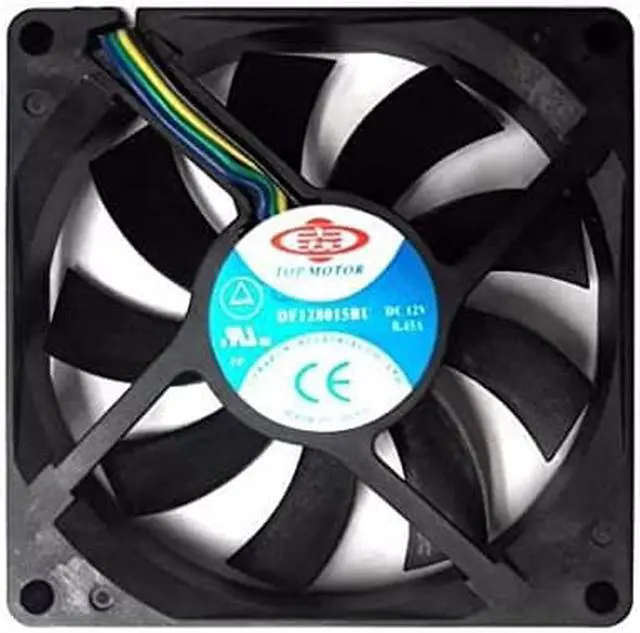

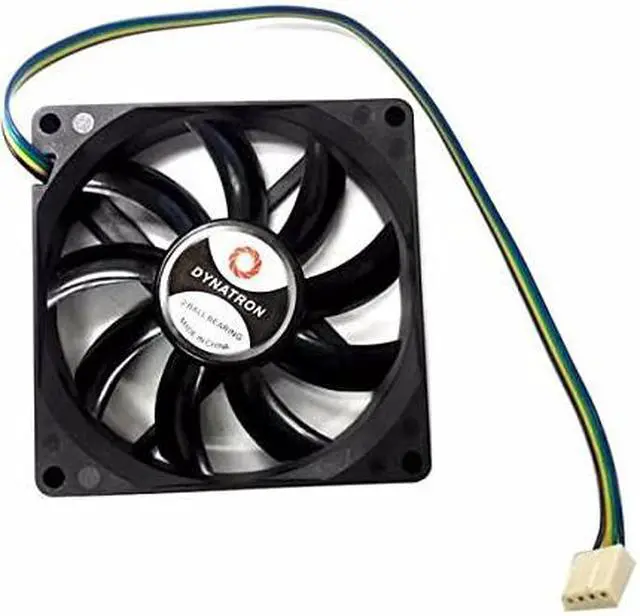

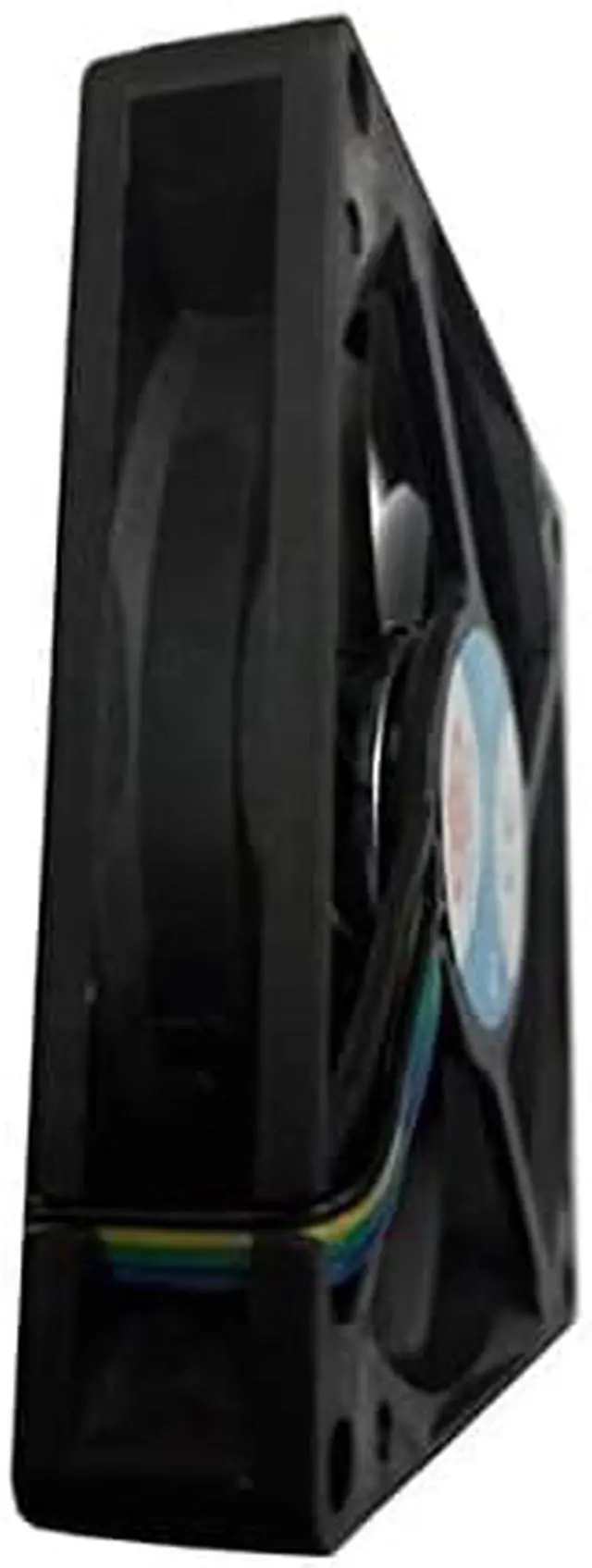

Dynatron Top Motor 80x15mm 12V Ultra High Speed PWM Fan DF128015BU
- Dimensions: 80x80x15mm
- Speed: Max 4000 RPM / Variable
- Connector: 4 Pin PWM with 9" tail
- Air Flow: 48.6 CFM
- Noise Level: 40.2 dBA
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Top Motor 80x15mm DC 12 volt Ultra High speed dual ball bearing fan with PWM function #DF128015BU
PWM Function: In Order to take advantage of PWM function, please use the motherboard with PWM features build-in.
Model Number: #DF128015BU
Dimensions: 80x80x15mm
Power: 12V
Static Pressure (mm/H2O) 5.90
Speed: Max 4000 RPM / Variable
Air Flow: 48.6 CFM
Current: 0.45 A
Noise Level: 40.2 dBA
Bearing: Double Ball Bearing
Life Hours: 50,000
Connector: 4 Pin PWM with 9" tail
Frame PBT+30%GF UL94V-0 (Black)
Impeller PBT+15%GF UL94V-0 (Black)
Weight 9±2 grams
Operating Temparature: – 10 °C ~ + 65 °C (65 %RH)
Storage Temperature: – 30 °C ~ + 70 °C (65 %RH)
Note: PWM Fans are not variable speed control fans on their own. An integrated circuit varies the speed and airflow of a fan using a pulse-width-modulated (PWM) voltage in response to temperature or system commands send typically by a computer motherboard. You can use them to run at full speed from an external supply if you adapt the plug.
PWM Function: In Order to take advantage of PWM function, please use the motherboard with PWM features build-in.
Model Number: #DF128015BU
Dimensions: 80x80x15mm
Power: 12V
Static Pressure (mm/H2O) 5.90
Speed: Max 4000 RPM / Variable
Air Flow: 48.6 CFM
Current: 0.45 A
Noise Level: 40.2 dBA
Bearing: Double Ball Bearing
Life Hours: 50,000
Connector: 4 Pin PWM with 9" tail
Frame PBT+30%GF UL94V-0 (Black)
Impeller PBT+15%GF UL94V-0 (Black)
Weight 9±2 grams
Operating Temparature: – 10 °C ~ + 65 °C (65 %RH)
Storage Temperature: – 30 °C ~ + 70 °C (65 %RH)
Note: PWM Fans are not variable speed control fans on their own. An integrated circuit varies the speed and airflow of a fan using a pulse-width-modulated (PWM) voltage in response to temperature or system commands send typically by a computer motherboard. You can use them to run at full speed from an external supply if you adapt the plug.
