Industry Standard Material
- High-standard grinding equipment are used
- Ensure that the surface of the fiber core is free from scratches and defects
- Meet high speed cabling networks

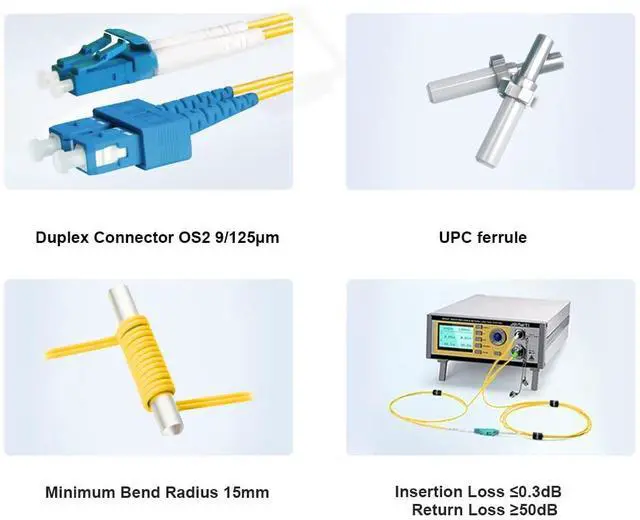

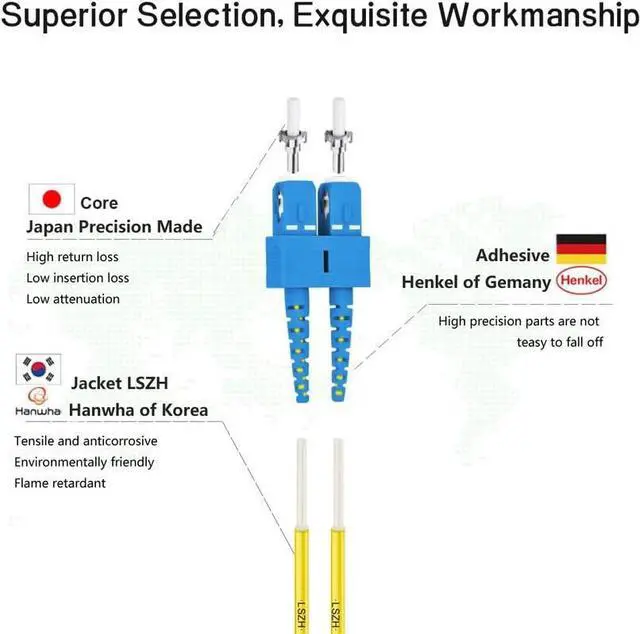

Premium Ceramic Ferrule
- High return loss
- Low insertion loss
- Low attenuation
Strong Resistance to Pull
- LSZH Jacket Low Smoke Zero Halogen
- Lightweight, flexible and flame retardant, easy peeling&welding
- Allows tighter or bending cable routing
Strict Quality Control
- Factory-based maker
- Optimum IL and RL ensure stable signal transmission
- Provide precise alignment to ensure the signal integrity
OS2 Duplex Single Mode SC-LC Fiber Optic Cable Specifications
 OS2 Single Mode Duplex |  OS2 Single Mode Duplex |  OS2 Single Mode Duplex |  OM3 Multimode Duplex |  OM3 Multimode Duplex |  OM3 Multimode Duplex | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Data Rate | 1G/10GB | 1G/10GB | 1G/10GB | 10G/40G/100GB | 10G/40G/100GB | 10G/40G/100GB |
| Insertion Loss | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB |
| Return Loss | =50dB | =50dB | =50dB | =30dB | =30dB | =30dB |
| LSZH Jacket | ? | ? | ? | ? | ? | ? |
| Min. Bend Radius(Fiber Core) | 16mm | 16mm | 16mm | 7.5mm | 7.5mm | 7.5mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) |
| Fiber Grade | G652D | G652D | G652D | Bend Insensitive | Bend Insensitive | Bend Insensitive |
| Indoor | ? | ? | ? | ? | ? | ? |
FLYPROfiber founded in 2005. A large-scale optical communication product manufacturer integrating R&D, production and sales of optical fiber cables, optical modules, WDM, optical switches, splitters, optical circulators and other passive components.
Optical fiber cable provide high-speed and reliable network connectivity, which benefits AI applications.
LC-LC Duplex Fiber Cable
OM3 LC LC Outdoor Armored
OS2 LC-LC Outdoor Armored
SCA Simplex Fiber Optic Cable
LC-SC Duplex Fiber Cable
SC-SC Duplex Fiber Cable
Network Transceivers
10G SFP+ DAC Cable
10G SFP+ AOC Cable
Industry Standard Material
- High-standard grinding equipment are used
- Ensure that the surface of the fiber core is free from scratches and defects
- Meet high speed cabling networks
Premium Ceramic Ferrule
- High return loss
- Low insertion loss
- Low attenuation
Strong Resistance to Pull
- LSZH Jacket Low Smoke Zero Halogen
- Lightweight, flexible and flame retardant, easy peeling&welding
- Allows tighter or bending cable routing
Strict Quality Control
- Factory-based maker
- Optimum IL and RL ensure stable signal transmission
- Provide precise alignment to ensure the signal integrity
OS2 Duplex Single Mode SC-LC Fiber Optic Cable Specifications
| Fiber Type | OS2 SC to LC |
| Polish Type | UPC to UPC |
| Fiber Count | Duplex |
| Ferrule Material | Ceramic |
| Cable Diameter | 2.0mm |
| Wavelength | 1310nm and 1550nm |
| Attenuation at 1310nm | 0.36 dB/km |
| Attenuation at 1550nm | 0.22 dB/km |
| Min. Bend Radius(Fiber Core) | 16mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) |
