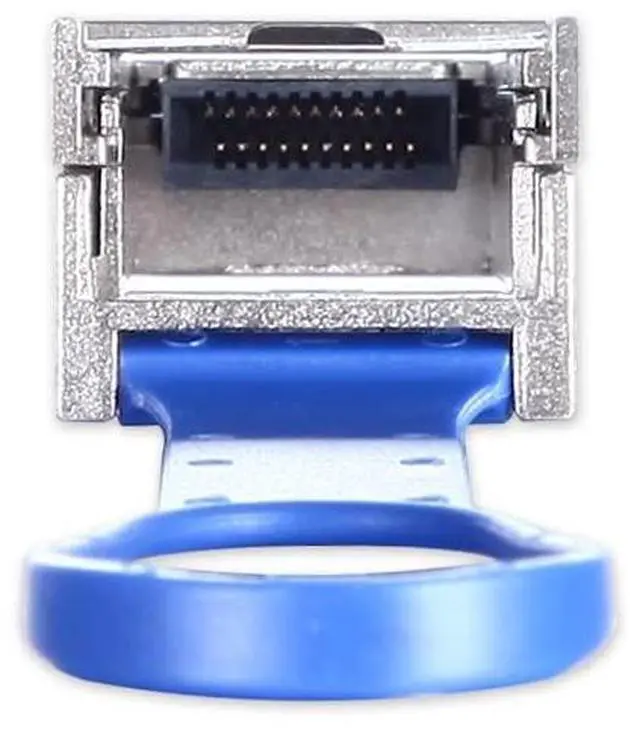

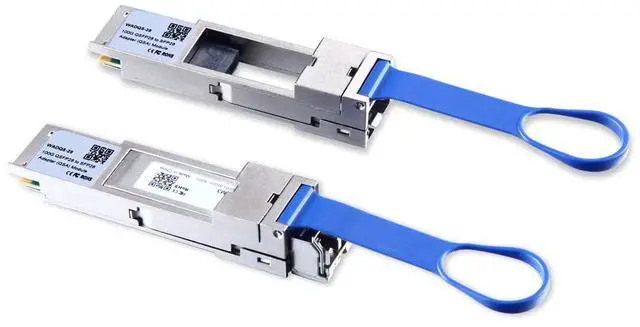

QSA Adapter- 100G QSFP28 to 25G SFP28 SFP+ Adapter Converter Module, Compatible for Dell CVR-QSFP28-SFP28, Juniper, Arista, Extreme and More
- Versatile Compatibility - Widely compatible with QSFP28 MSA-compliant equipment from Dell, Juniper, Arista, Extreme and more brands; Comprehensive SFP28 Support - This QSA adapter fits all SFP28 optics and cable reaches, including SFP28-SR, SFP28-LR, SFP28 Passive Copper Cable and SFP28 Active Optical Cable(I2C read port information comes from SFP+ port module); Cost-effective Conversion from QSFP28 to SFP28 Port - Ipolex 100G to 25G Adapter Module allows smooth and cost-effective migration to 40 Gigabit Ethernet by providing an option to use lower speed. Plug and play, no configuration required; Stable Performance - low insertion loss, low crosstalk, and low EMI emission; all metal housing design and secure latching mechanism; Operating case Temp range at -20 to 85?; Test Assured - Every QSA Adapter is tested by a skilled technician in ipolex lab for compatibility and stability before delivery
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

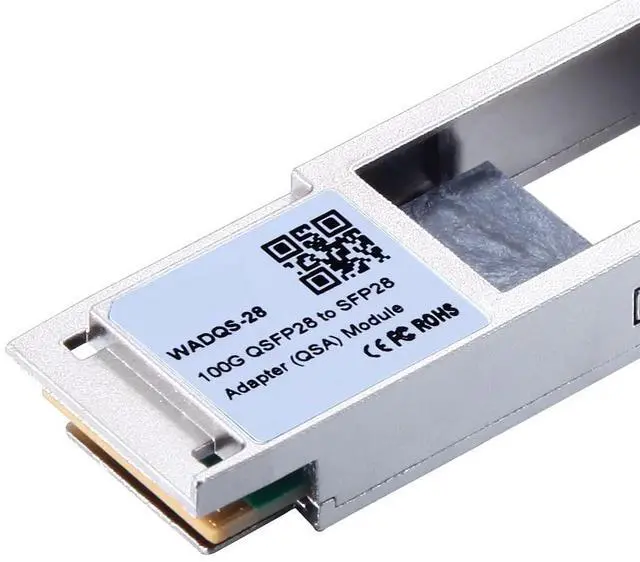

WADQS-28 (Version A) QSA-100, the QSFP28 to SFP28 Adapter (QSA) has a built-in SFP28 adapter under QSFP28 form factor, with data rate up to 25Gbps per channel. This QSA does not support reading SFP DDM info.
Version A: QSA-100A Adapter without EEPROM, the device will read DDM from the SFP transceiver that is connected to the QSA.
Features: Secure latching mechanism RoHS compliant Low crosstalk Low insertion loss
Operating case temperature: -20? C ~ +85? C
Storage Temperature: -40? C ~ +125? C
Supply Voltage: 3.15 ~ 3.45V
Applications: QSFP28 to SFP28
Version A: QSA-100A Adapter without EEPROM, the device will read DDM from the SFP transceiver that is connected to the QSA.
Features: Secure latching mechanism RoHS compliant Low crosstalk Low insertion loss
Operating case temperature: -20? C ~ +85? C
Storage Temperature: -40? C ~ +125? C
Supply Voltage: 3.15 ~ 3.45V
Applications: QSFP28 to SFP28
