WZRELB RBP-500012S Pure Sine Wave 5000W 12V Power Inverter DC to AC Power - Solar, RV (RBP-500012S)

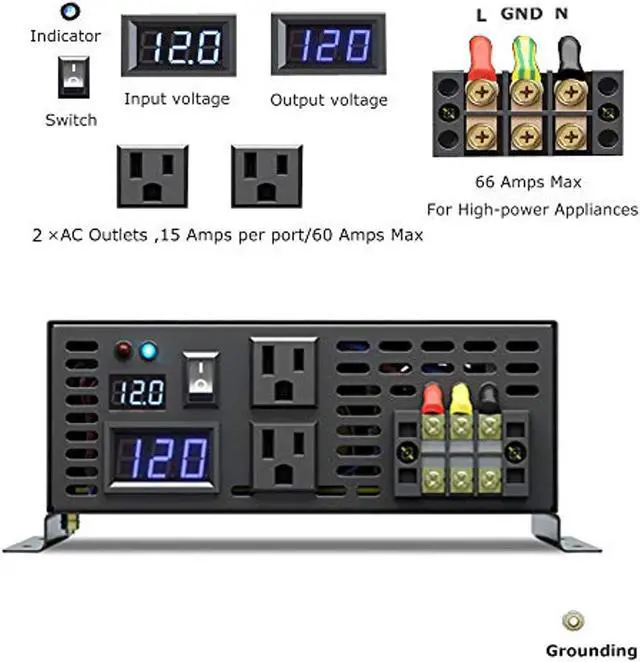

- WZRELB 5000W 12V DC to 110V AC pure sine wave inverter generator, as good as Grid power, 5000W continuous power, 10000W peak power, with LED displays for DC AC voltages. Dual US outlets.
- Fully Safety Protections: Over voltage, Low voltage, Overload, Short circuit, Over heat, polarity reverse protection(fuse), Ground protection from leakage of electricity.
- High quality pure copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment. All big imported mosfets with strong driving capacity.

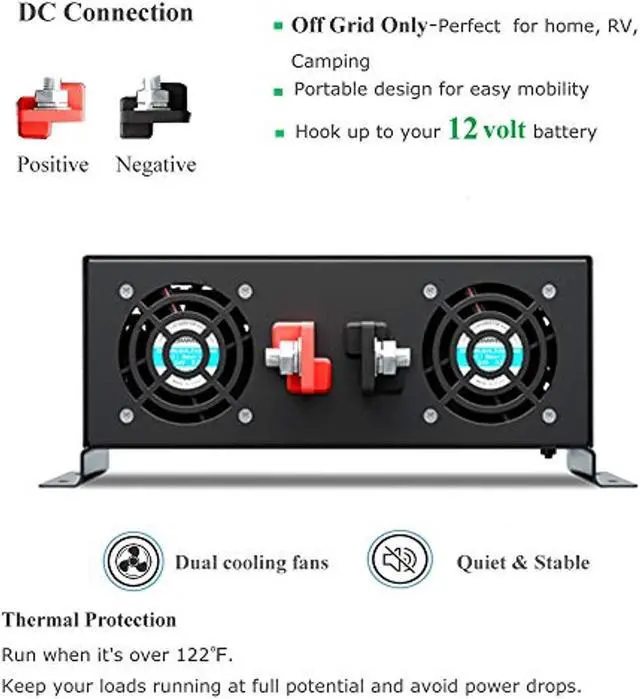

- Build-in intelligent cooling fan works according to temp and not load. Prolongs battery life. It is fairly quiet and only cycles on when the temp is over 66 degree Celsius.
- Reliable performance -- the 5000W Power inverter is equipped with extra thick (2. 0mm) PCB which greatly enhances the load capacity of the inverter. Home power supply.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product details: DC
input: 12V
DC input range: 10V-15V No Load
Current Draw: 0.5A
Efficiency: 85%-90%
AC output: 120V
AC Regulation: 3%
Frequency: 60Hz
Socket: 15a USA type Low
Voltage Alarm: 9.5V - 10.5V Low
Voltage Shut Down: 9V-10V
Over Load: shut off, recover manually Over
Voltage Shut Down: 15.5V
Over Thermal: Shut Off Output Automatically, Over voltage protection
Cooling Ways: Cooling Fan will run when the temperature is over 50 degree
Precautions:

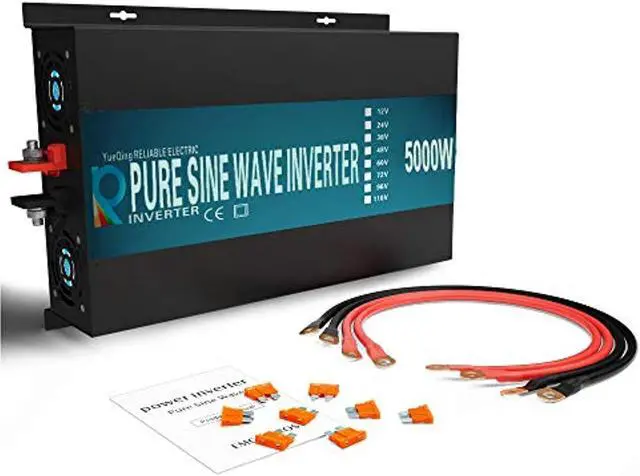

1. Please use the standard battery cables we sent, or a full power output may not be guaranteed. And the fuse are just spare parts.
2. Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.
3. Please do not overload. If your applications are inductive loads, please choose the inverters whose continuous power is 3-7 times higher than the watts of your appliances. If you want to power up a refrigerator, we suggest you use 10 times higher power inverter.
4. Please turn off the load first then turn off the inverter. And as there is a soft start function, please turn on the inverter first then turn on your loads, or the output may not stable at the first seconds.
5. For a red light flashing, it is a kind reminder to note you the input voltage is a bit high, you can regardless of it.
6. The output voltage can be adjusted in a little range.
input: 12V
DC input range: 10V-15V No Load
Current Draw: 0.5A
Efficiency: 85%-90%
AC output: 120V
AC Regulation: 3%
Frequency: 60Hz
Socket: 15a USA type Low
Voltage Alarm: 9.5V - 10.5V Low
Voltage Shut Down: 9V-10V
Over Load: shut off, recover manually Over
Voltage Shut Down: 15.5V
Over Thermal: Shut Off Output Automatically, Over voltage protection
Cooling Ways: Cooling Fan will run when the temperature is over 50 degree
Precautions:
1. Please use the standard battery cables we sent, or a full power output may not be guaranteed. And the fuse are just spare parts.
2. Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.
3. Please do not overload. If your applications are inductive loads, please choose the inverters whose continuous power is 3-7 times higher than the watts of your appliances. If you want to power up a refrigerator, we suggest you use 10 times higher power inverter.
4. Please turn off the load first then turn off the inverter. And as there is a soft start function, please turn on the inverter first then turn on your loads, or the output may not stable at the first seconds.
5. For a red light flashing, it is a kind reminder to note you the input voltage is a bit high, you can regardless of it.
6. The output voltage can be adjusted in a little range.
