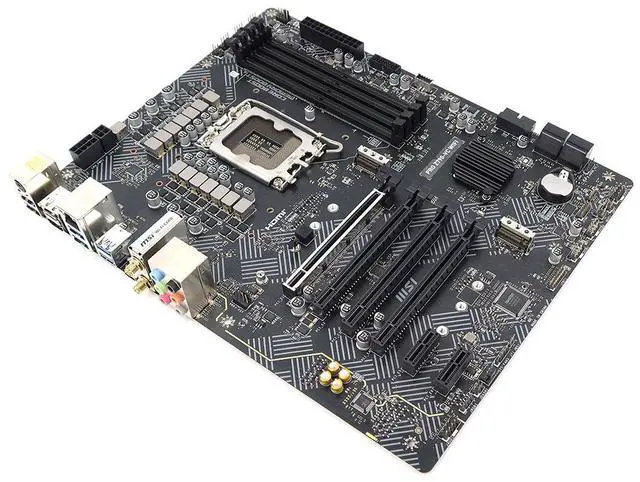

PRO Z790-VC Wifi MSI Intel Z790 LGA1700 DDR5 M.2 DP Hdmi ATX Motherboard NO I/O Intel LGA1700 Motherboard - OEM

MSI PRO Z790-VC WIFI Intel Chipset Z790 Socket LGA1700 DDR5 USB M.2 SATA 6Gb/s DisplayPort HDMI ATX Desktop Motherboard 601-7D33-020.

Model: PRO Z790-VC WIFI
Part Number: 601-7D33-020
Compatible Part Numbers: MS-7D33 7D33-020 7D33/020
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 4800 / 5000 / 5200 / 5400 / 5600 / 5800 OC / 6000 OC / 6200 OC / 6400 OC / 6600 OC / 6800 OC / 7000 OC / 7200+ OC MHz
Storage Interface: 2x M.2 NVMe; 4x SATA 6Gb/s
RAID Support: RAID 0 and RAID 1 for M.2 NVMe storage devices; RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Network/Communications: Realtek RTL8125BG 2.5 Gbps LAN; Wi-Fi 7
Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Connectors: 1x ATX Power Connector(ATX_PWR); 2x CPU Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector (JDASH); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x Addressable RGB LED connector (JRAINBOW); 1x RGB LED connector (JRGB); 1x TPM pin header (Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
Input/Output Ports: 1x PS/2 Keyboard/Mouse Port; 1x DisplayPort; 1x 2.5G LAN; 2x Wi-Fi / Bluetooth Antenna Ports; 6x Audio Connectors; 2x USB 2.0; 1x HDMI; 4x USB 3.2 Gen 1 5Gbps (Type-A); 1x USB 3.2 Gen 2x2 20Gbps (Type-C)
Expansion Slots: 4x PCI Express x16 slot; 2x PCI Express x1 slot (PCI_E1 Gen PCIe 5.0 supports up to x16 from CPU; PCI_E2 Gen PCIe 3.0 supports up to x1 from Chipset; PCI_E3 Gen PCIe 3.0 supports up to x1 from Chipset; PCI_E4 Gen PCIe 3.0 supports up to x4 from Chipset; PCI_E5 Gen PCIe 3.0 supports up to x1 from Chipset; PCI_E6 Gen PCIe 3.0 supports up to x1 from Chipset)
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11 64-bit, Windows 10 64-bit

Please note, this motherboard does not include an I/O Shield, Extended Heatsink, Heavy Plated VRM Heatsink, 7W/mK Thermal Pad & Additional Choke Pad, M.2 Shield Frozr, WI-FI antenna, cables, fan's bracket, fan's mounting backplate, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
