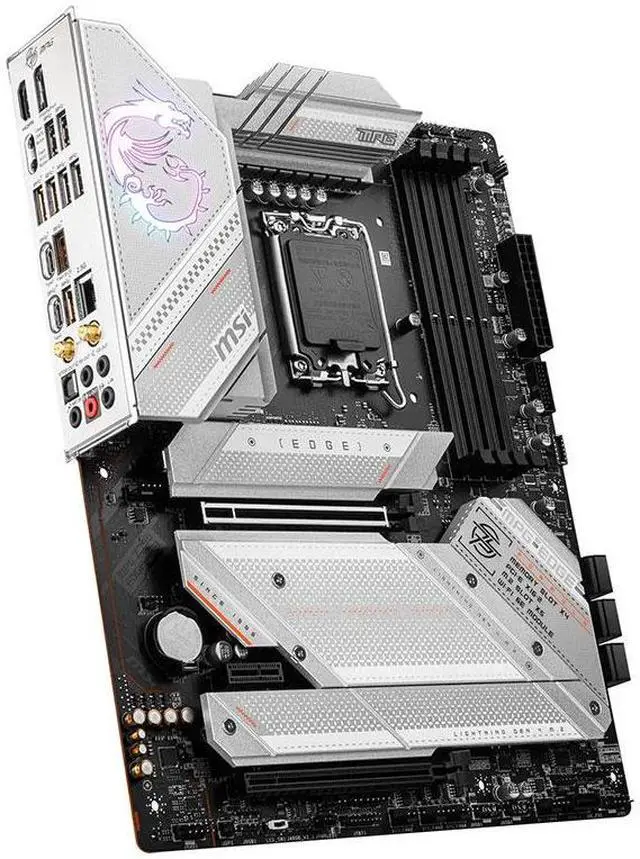

MPG Z790 Edge Wifi_Noio MSI Wifi Intel LGA1700 DDR5 ATX DP Hdmi Motherboard NO I/O Intel LGA1700 Motherboard - OEM

MSI MPG Z790 EDGE WIFI Intel Chipset Z790 Socket LGA1700 DDR5 USB M.2 SATA 6Gb/s Display Port HDMI ATX Desktop Motherboard.

Model: MPG Z790 EDGE WIFI_NOIO
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 4800 / 5000 / 5200 / 5400 / 5600 / 5800 OC / 6000 OC / 6200 OC / 6400 OC / 6600 OC / 6800 OC / 7000 OC / 7200+ OC MHz
Storage Interface: 5x M.2 NVMe; 7x SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe Storage Devices; RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Storage Devices
Network/Communications: Intel 2.5Gbps LAN; Intel Wi-Fi 6E
Audio: Realtek ALC4080 Codec; 7.1-Channel USB High Performance Audio; supports up to 32-Bit/384 kHz playback on front panel
Connectors: 1x ATX Power Connector (ATX_PWR); 2x CPU Power Connector (CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector (JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector (JRGB); 1x TPM pin header (Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
Input/Output Ports: 1x Display Port; 4x USB 5 Gbps (Type-A); 4x USB 10Gbps (Type-A); 1x 2.5G LAN; 2x Wi-Fi / Bluetooth Antenna Ports; 5x Audio Ports; 1x HDMI; 1x USB 10Gbps (Type-C); 1x USB 20Gbps (Type-C); 1x Optical S/PDIF Out
Expansion Slots: 2x PCI Express x16 Slot; 1x PCI Express x1 Slot (PCI_E1 Gen PCIe 5.0 supports up to x16 from CPU; PCI_E2 Gen PCIe 3.0 supports up to x1 from Chipset; PCI_E3 Gen PCIe 4.0 supports up to x4 from Chipset)
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Support for Windows 11 64-bit, Windows 10 64-bit

Please note, this motherboard does not include an I/O Shield, WI-FI antenna, cables, fan's bracket, fan's mounting backplate, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
