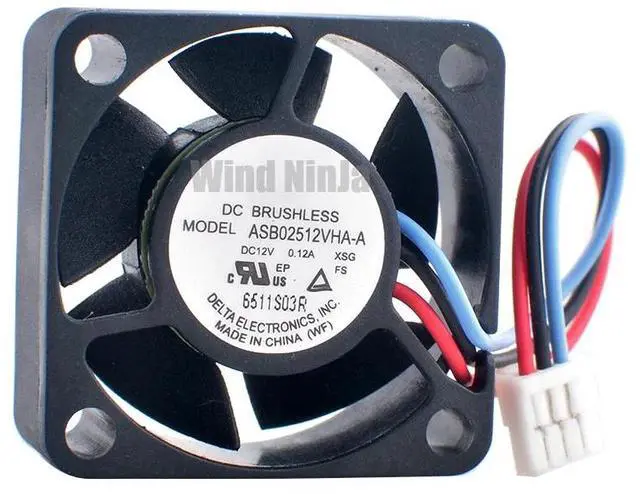

ASB02512VHA-A 2.5cm 25mm Fan (25x25x10mm), DC12V 0.12A, 3-pin Miniature Cooling Fan, suitable for industrial computer power supplies.
- ASB Series Component Status: Enabled Rated Voltage: 12 VDC Dimensions: Square - 25mm L x 25mm H Width: 10.00mm Airflow: 3.35 CFM (0.095 m³/min) Static Pressure: 0.214 inch HJ (5.43 mm HJ) Bearing Type: Sleeve Bearing Fan Type: Axial Characteristics: Lock-up Rotor Sensor Noise: 27.0 dB(A) Power: 0.60 W Speed: 13000 RPM Wiring: 3-Wire Protection Rating: -- Operating Temperature: -10~+75 Weight: 6.0 g Rated Current: 0.09 A Rated Voltage: 4.75 - 13.8 VDC Frame Material: Plastic Blade Material: Plastic Service Life (Temperature): 50000 hours (40)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ASB Series Component Status: Enabled
Rated Voltage: 12
VDC Dimensions: Square - 25mm L x 25mm
H Width: 10.00 mm
Airflow: 3.35 CFM ( 0.095 m³/min)
Static Pressure: 0.214 inch HJ ( 5.43 mm HJ)
Bearing Type: Sleeve Bearing
Fan Type: Axial
Characteristics: Lock-up Rotor
Sensor Noise: 27.0 dB (A)
Power: 0.60
W Speed: 13000
RPM Wiring: 3-Wire
Protection Rating: --
Operating Temperature: -10~+75
Weight: 6.0 g
Rated Current: 0.09
A Rated Voltage: 4.75 - 13.8 VDC
Frame Material: Plastic
Blade Material: Plastic
Service Life (Temperature): 50000 hours (40)
Rated Voltage: 12
VDC Dimensions: Square - 25mm L x 25mm
H Width: 10.00 mm
Airflow: 3.35 CFM ( 0.095 m³/min)
Static Pressure: 0.214 inch HJ ( 5.43 mm HJ)
Bearing Type: Sleeve Bearing
Fan Type: Axial
Characteristics: Lock-up Rotor
Sensor Noise: 27.0 dB (A)
Power: 0.60
W Speed: 13000
RPM Wiring: 3-Wire
Protection Rating: --
Operating Temperature: -10~+75
Weight: 6.0 g
Rated Current: 0.09
A Rated Voltage: 4.75 - 13.8 VDC
Frame Material: Plastic
Blade Material: Plastic
Service Life (Temperature): 50000 hours (40)
