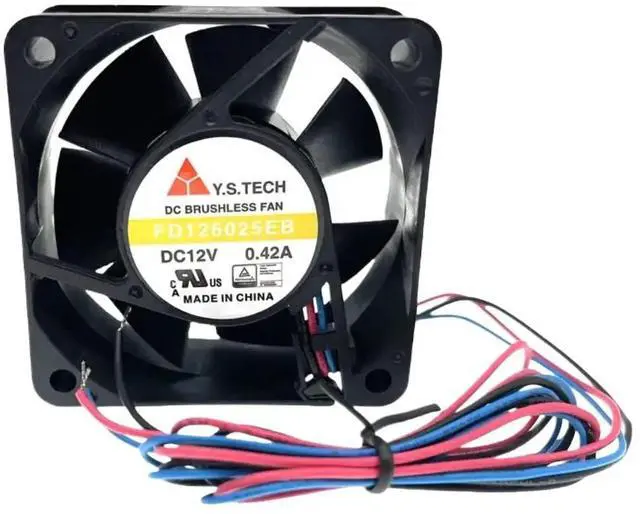

FD126025EB 60mm Cooling Fan (60x60x25mm), DC 12V, 5400RPM, Server Fan, 3-wire, RD, Alarm, Dual Ball Bearing, Silent Chassis Heatsink

The FD126025EB high-speed server fan is a 60mm cooling fan designed for critical server and industrial applications. It features a robust dual ball bearing construction and a high-speed motor reaching up to 5400 RPM, delivering powerful airflow within a compact 60x60x25mm size.
Key features include: Reliable RD
Alarm Signal: Equipped with a three-wire RD (Rotation Detection) signal. This signal immediately alerts your system if the fan stops spinning to prevent overheating.
High-Speed Performance: Operating at 5400 RPM, it delivers 26.4 CFM of airflow for rapid cooling in high-density environments.
Industrial-Grade: Constructed with premium materials, it withstands the harsh conditions of continuous 24/7 operation.
High Static Pressure: With a pressure of 5.0 mmH2O, it is ideal for blowing air over thick heatsinks or server chassis.
Technical

Specifications

Model: FD126025EB
Dimensions: 60 x 60 x 25 mm
Voltage: DC
12V (Range: 7V - 13.2V )
Current: 0.23A (Rated) / 0.42A (Max)
Speed: 5200 - 5400
RPM Airflow: 26.4 CFM
Static Pressure: 5.0 mmH2O
Noise Level: 40 dBA
Bearing/Signal: Dual Ball/Three-Wire RD Alarm provides a reliable thermal solution for your hardware.
