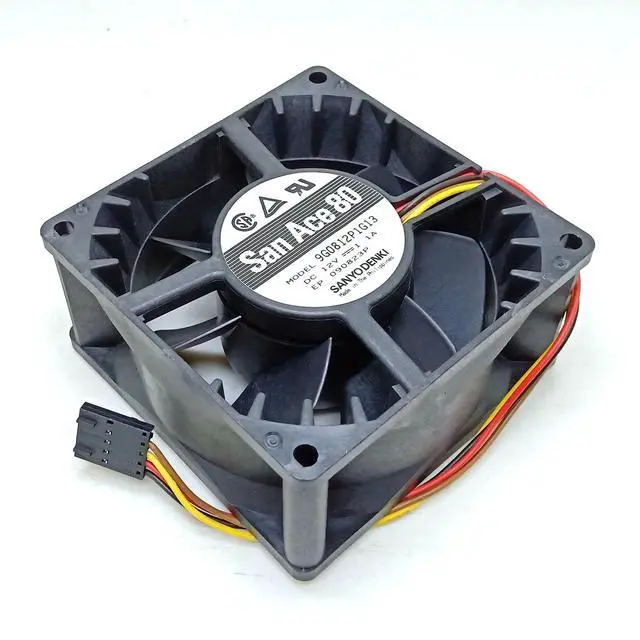

80mm server fan for motor 9G0812P1G13, 12V 1.1A 8038, 80mm 8CM 4PIN PWM cooling fan.
- Product Model: 9g0812p1g13 Dimensions: 80 x 80 x 38mm Center Hole Distance: 72 x 72mm Speed Reference: 6300 rpm ± 10% Bearing Type: Double Ball Bearing Service Life: 50,000 hours Noise Reference: 51dB Rated Voltage: 12V Rated Current: 1.1A Airflow Reference: 90.00cfm Speed Measurement Function: Supported by PWM Function: Supported Note: Black wire is negative, red wire is positive, yellow wire is speed measurement wire, brown wire is PWM wire
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Model: 9g0812p1g13
Dimensions: 80 x 80 x 38mm
Center Hole Distance: 72 x 72mm
Speed Reference: 6300 rpm ± 10%
Bearing Type: Double Ball Bearing
Service Life: 50, 000 hours
Noise Reference: 51dB
Rated Voltage: 12V
Rated Current: 1.1A
Airflow Reference: 90.00 cfm
Speed Measurement Function: Supported by
PWM Function: Supported
Note: Black wire is negative, red wire is positive, yellow wire is speed measurement wire, brown wire is PWM wire
Dimensions: 80 x 80 x 38mm
Center Hole Distance: 72 x 72mm
Speed Reference: 6300 rpm ± 10%
Bearing Type: Double Ball Bearing
Service Life: 50, 000 hours
Noise Reference: 51dB
Rated Voltage: 12V
Rated Current: 1.1A
Airflow Reference: 90.00 cfm
Speed Measurement Function: Supported by
PWM Function: Supported
Note: Black wire is negative, red wire is positive, yellow wire is speed measurement wire, brown wire is PWM wire
