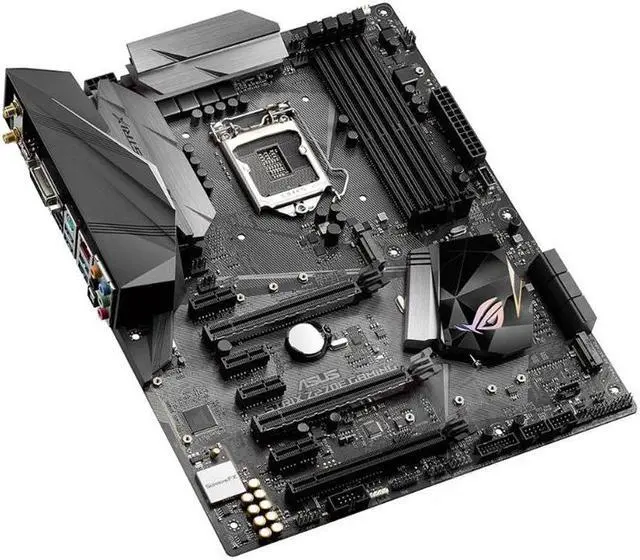

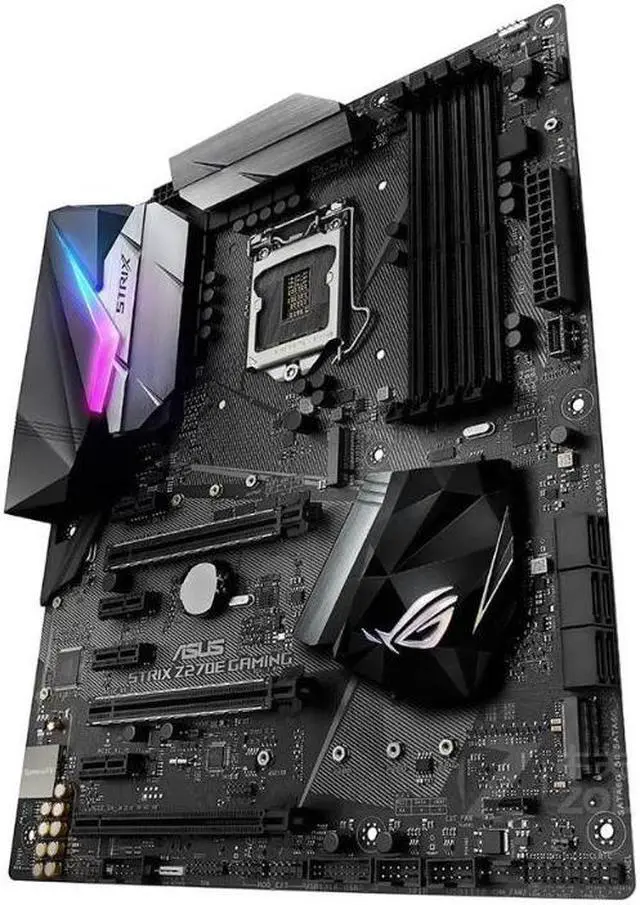

For ASUS ROG STRIX Z270E GAMING LGA 1151 Intel Z270 Mining Motherboard DDR4 REG ECC 64G 2×M.2 Core i7/i5/i3 cpus 3×PCI-E X16 ATX

Quality Certification:ce
Chipset:Intel Z270
Socket Type:LGA 1151
Storage Interface Type:SATA 3
Onboard LAN:1x RJ45
Package:No
Model Number:STRIX Z270E GAMING
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:64 GB
Chipset Manufacturer:Intel
Back I/O Ports:6 x USB 2.0
Support Memory Type:DDR4
Usage Scenario:Gaming
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 16:3
Memory channel:Double
Form Factor:CeB
Number of PCIe x 1:1
Certification:CE
Number of M.2:2

STRIX Z270E GAMING Parameters
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel Z270
Chipset description Using Intel Z270 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated SupremeFX S1220 8-channel audio chip
Network card chip onboard Intel I219V Gigabit network card
Processor specifications
CPU type 7th/sixth generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR4 3733(overclock)/3600(overclock)/4133(OC)/3466(overclock)/4000(OC)/3400(overclock)/3866(OC)/3333(overclock)/3300(overclock) /3200(overclock)/3000(overclock)/2800(overclock)/2666(overclock)/2400(overclock)/2133 MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics slot, 4×PCI-E X1 slot, 1×PCI-E X1 slot
Storage interface 2×M.2 interface, 6×SATA III interface
I/O interface
USB interface 1×USB3.1 port, 1×USB3.1 Type-A port, 1×USB3.1 Type-C port, 6×USB2.0 port, 6×USB3.0 port
Video interface 1×DVI interface, 1×Display Port interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, 1×optical interface, audio interface, 1×PS/2 keyboard and mouse universal interface
Board type
Motherboard board type ATX board type
Dimensions 30.5×24.4cm
