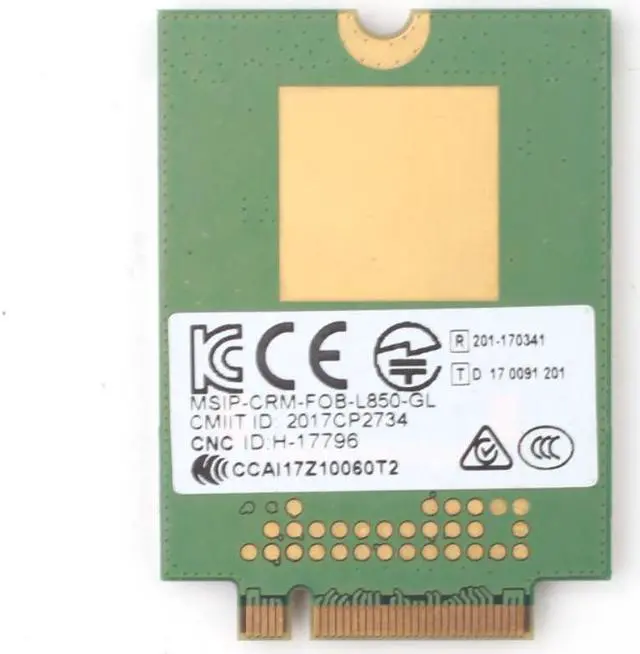

L850-GL for HP LT4210 Fibocom 4G LTE Card XMM 7360 WWAN Mobile Module for hp 840 430 G5/440 G5/450 G5/640 Notebook PC

Certification:CE
Origin:CN(Origin)
Wireless Protocol:LTE
Kind:Internal
Application:Laptop
Model Number:L850-GL 4G
Package:No
Interface Type:NGFF
Card Type Device:4G Card
Type:wireless
Transmission Rate:450Mbps
Wirless Modem Type 1:WCDMA
Function:4G
is_customized:Yes
Products Status:Stock
Wirless Modem Type 2:CDMA
Wirless Modem Type 3:EDGE
HP Model:LT4210
SPS:L15398-001

Product manual:
The L850-GL is an industry-leading LTE Cat9 high-speed full-memory module. It is based on the Intel7360 platform and is based on the M.2 interface. The size of the L850-GL is 30*42*2.3mm. It supports LTE FDD, LTE TDD, WCDMA and many other formats. The application of the notebook computer is preferred, and it can be widely applied in fields such as gateways, industrial monitoring, and telemedicine. The Fibocom L850 has 450Mbps downlink speed, supports 2*2MIMO, supports 3CA combination and 2CA combination. Supports eSIM at the same time, can meet users' fast commercial demand.
Compatibility:
HARDWARE PRODUCT MODEL(S):
HP ProBook 440 G5 Notebook PC
HP ProBook 430 G5 Notebook PC
HP ProBook 450 G5 Notebook PC
HP EliteBook 846 G5 Notebook PC
HP EliteBook 850 G5 Notebook PC
HP ProBook 640 G4 Notebook PC
HP ProBook 650 G4 Notebook PC
HP ZBook 14u G5
Product Introduction:
Dimension(mm):42.00 x 30.00 x 2.30;
Interface: M.2;
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B11/B12/B13/B17/B18/B19/B20/B21/B26/B28/B29/B30/B66;
LTE TDD: B38/B39/B40/B41;
WCDMA: B1/B2/B4/B5/B8;
Power Supply: 3.135V~4.4V(Typical3.3V);
Operating Temp.: -20?~+65?;
OS Driver: Windows10 / Linux
Data Transmission:
LTE FDD(Mbps):450(DL)/50(UL) (Cat9);
LTE TDD(Mbps):347(DL)30(UL)(Cat9);
UMTS(kbps):384(DL)/384(UL);
DC-HSPA+ (Mbps):42(DL)/5.76(UL).
Package include:
1 x Fibocom L850-GL SPS:L15398-001WWAN Card;
Some screws.
