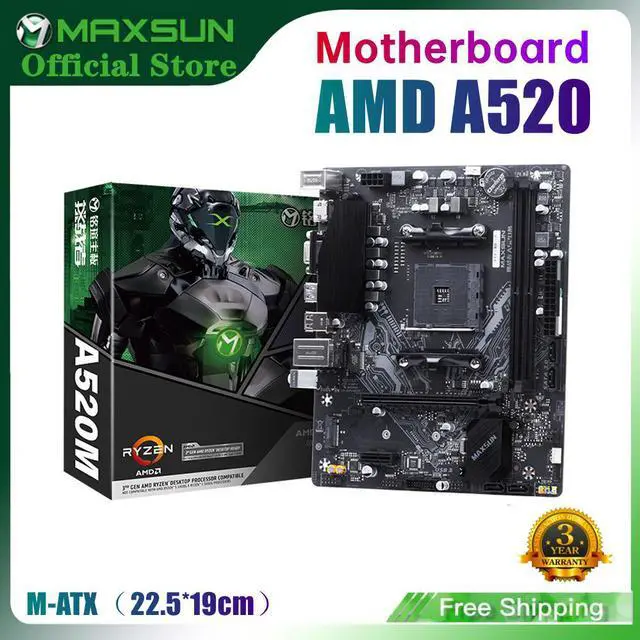

MAXSUN Full Motherboard AMD A520M RAM DDR4 M.2 USB3.2 STAT 3.0 Support R3 R5 R7 R9 Desktop AM4 CPU Socket For Desktop

MAXSUN Model:MS-Challenger A520M
Quality Certification:FCC
Chipset:AMD A520
Socket Type:AM4
Storage Interface Type:SATA 3
Onboard LAN:1x RJ45
Package:Yes
Model Number:MS-Challenger A520M
Application:Desktop
With CPU:No
Special Function:Cooling Armor
Maximum Ram Capacity:64 GB
Chipset Manufacturer:AMD
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR4
Usage Scenario:Enthusiast & Overclocking
Number of PCI:1
PCI - E standards:PCI - E 4.0
Origin:CN(Origin)
Number of PCIe x 16:1
Number Of Memory Slots:2
Memory channel:Double
Number of SATA Ports:4
Audio Channels:5.1
Form Factor:ATX
Supports M.2 SSD:2280
Number of M.2:1
Motherboard:Challenger A520M

The CR2032 in motherboard photos will be removed before shipping, as is forbidden at CN post and custom
Motherboard parameters
Basic specifications

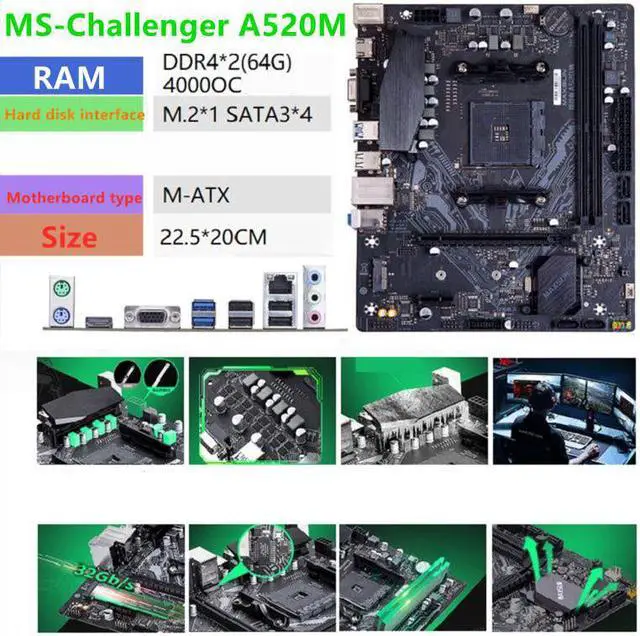

Board type: M-ATX
Chipset: AMD A520 chip
CPU support: Support AMD AM4 socket APU and AMD Ryzen processor
Memory support: Support dual-channel DDR4 memory
Network card chip: Realtek RTL8111 Gigabit network card
Integrated graphics: CPU built-in display chip (APU only, Ryzen has no display chip)
Extended support
Disk interface: 4x SATAIII interface; 1x M.2 interface (SATAIII/PCI-E standard)
Graphics slot: 1 PCI-E graphics slot
Other slots: 1 PCI-E X1 slot; 1 M.2 slot
I/O interface
PS/2 interface: 1 keyboard and mouse universal
USB interface: 2x USB3.0 interface; 4x USB2.0 interface
Audio interface: 6 channel audio
Extension pins: 4 USB2.0, 2 USB3.1
Other parameters
Power interface: 24 pin + 8 pin
Power supply mode: 6 phase
Features: High-speed M.2 interface, graphics card slot, 2 DDR4 memory slots, six-phase power supply
Motherboard accessories: manual, SATA data cable, baffle

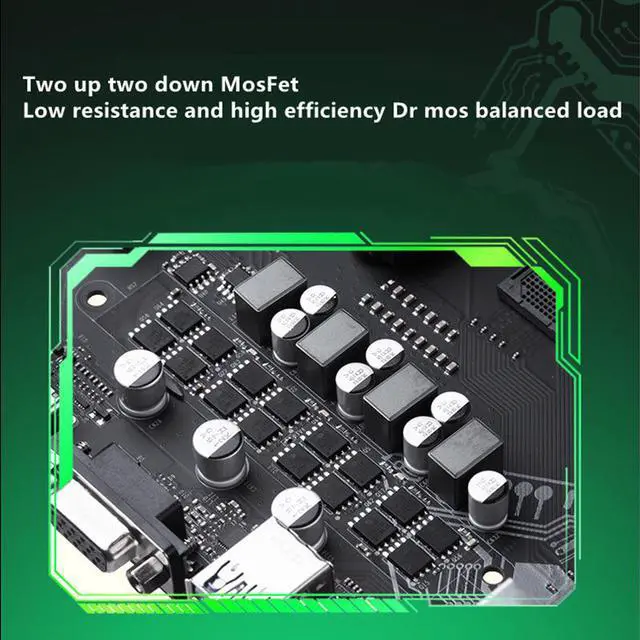

2 up 2 down power supply combination
Supports AMD AM4 socket APU and AMD Ryzen processor

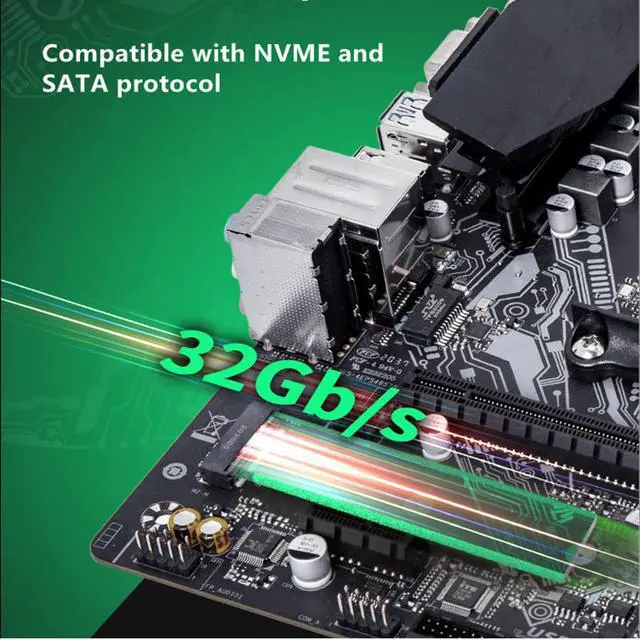

Compatible with NVME and SATA protocols
Support dual channel DDR4 memory
Audio interface 6-channel audio
Large area alloy heat dissipation armor
