MITSUMI 545 High torque DC motor Low noise motor Wind power generator with grating disc motor diy motor

Origin:CN(Origin)
Certification:CCC
Continuous Current(A):N/A
Commutation:Brush
Model Number:MITSUMI 545 motor
Type:Micro Motor
Protect Feature:Drip-proof
Output Power:N/A
Construction:Permanent Magnet
Torque:N/A
Usage:Home Appliance
Efficiency:IE 1

foam Japanese Meishangmei (Sanmei) 545 medium speed motor
The speed of this motor is not very high, but the torque is quite large
Can generate electricity

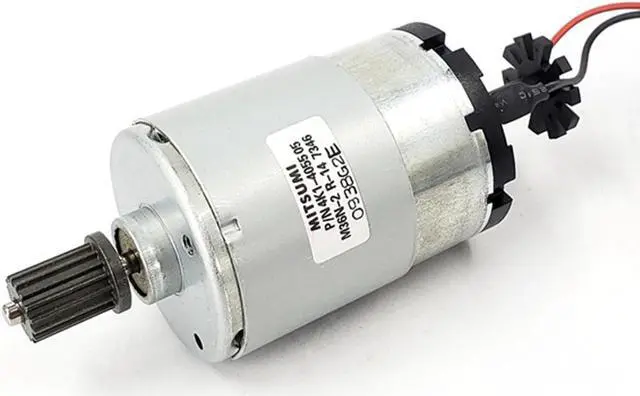

With grating disc at the tail, the motor looks very beautiful
The DC motor has exquisite workmanship and high work efficiency. The output shaft is longer, and there is a pulley on the shaft. We can help remove the pulley.
[Voltage Range]: DC 3-24V
[Motor diameter]: 36.5mm
[Body length]: 50mm
[Motor shaft length]: front 18mm/rear 17.8mm
[Motor shaft diameter]: about 3.17mm
[Motor weight]: The metal back cover is about 197g, the non-metal back cover is about 170g
[Number of teeth of belt wheel]: The belt wheel has 16 teeth
[Other features]: Exquisite workmanship, large torque, good power generation efficiency, durable and long life carbon brush motor
(1) Gently rotate the motor shaft by hand to send out current, which can light up a light string with dozens of LED diodes, and can also drive a small hollow cup motor to rotate.
(2) Under strong direct sunlight at noon in summer, 3v100ma solar panels can drive this motor, which is enough to see that this motor has a high working efficiency and extremely low current consumption.
12V voltage test: no-load current 70ma, no-load speed revolutions per minute
24V voltage test: no-load current 85ma, no-load speed revolutions per minute
