Car Tester all-sun EM5510 Digital Multimeter 5 in 1 Sound Level Humidity Luminosity Autoranging Multimeter Temperature Tester

Origin:CN(Origin)
Type:Multimeter
Model Number:EM5510

Car Tester all-sun EM5510 Digital Multimeter 5 in 1 Sound Level Humidity Luminosity Autoranging Multimeter Temperature Tester
Description :

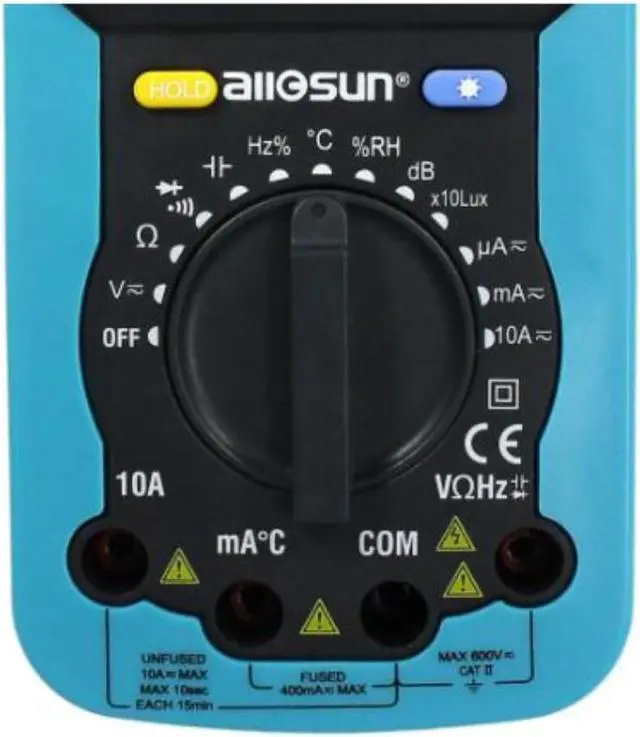

all-sun EM5510 5 in 1 Autoranging Digital Multimeter
S
oundLevel Humidity Luminosity Multimeter Temperature
Note :
This package doesnot include batteries.
Due to new rules of China Post Air, parcels must not include batteries,
otherwise it will not get through the custom.
> This multimeter is
4000
count,
3 3/4-digit
multimeter.
> It can be used to measure DC and AC voltage, DC and AC current,
resistance, capacitance, frequency, diode, temperature, continuity,
duty cycle and electromagnetic field radiation.
> It can be used as a test tool for environment and devices.
> It is a
high-performance
and
versatile
meter.
Safety Information >>>
This meter has been designed according to IEC-61010 concerning ele
ctronic measuring
instruments with a measurement category (CAT II600V) and pollution degree 2.
GENERAL SPECIFICATION
>>>
> Display: 3 3/4-digit LCD, with a max. reading of 3999
> Overrange Indication: "OL" shown on the LCD
> Negative Polarity Indiaction: "-" displayed automatically
> Sampling Rate: 2-3 times/ sec
> Operating Temperature: 0-40,
> Storage Temperature: -30-60,
> Operating Altitude: 0 - 2000m
> Power: 9V (6F22)
> Dimensions (W×L×T): 83×162×47 mm
> Weight: 310g (with )
Accuracy is specified for a period of one year after calibration and
at 18 to 28 , with relative humidity
specifications take the form of: ±([% of Reading]+[number of Least
Significant Digits])
Input Impedance: the 400mV range: >1000M
the other ranges: 10M
Max.Permitted Input: 400Mv range: 250V DC or AC
the other ranges: 600V DC or AC
Input Impedance: 10M
Max.Permitted Input: 600V DC or AC
Frequency Range: 40Hz ~400Hz
Response:Average, calibrated in rms of sine wave
Overload Protection:
For "MA jack inputs: Fuse, 500Ma/ 250V, fast action
For "10A" jack inputs: no fuse
Max. Input Current: 10A (For inputs>5A:
measurement duration
interval>15minutes)
Max. Voltage Drop: 400mV
Overload Protection:
For "MA jack inputs: Fuse, 500Ma/ 250V, fast action
For "10A" jack inputs: no fuse
Max. Input Current: 10A (For inputs>5A:
measurement duration
interval>15minutes)
Max. Voltage Drop: 400mV
Frequency Range: 40Hz~400Hz
Response: Average, calibrated in rms of sine wave
Overload Protection: 250V DC/ AC
Open Circuit Voltage: about 0.25V
Input voltage: 1 Vrms~20 Vrms
Overload Protection: 250VDC/AC
Input Voltage: 3Vp-p~10Vp-p
Overload Protection: 250V DC/AC
packlist :
1pcs EM5510
