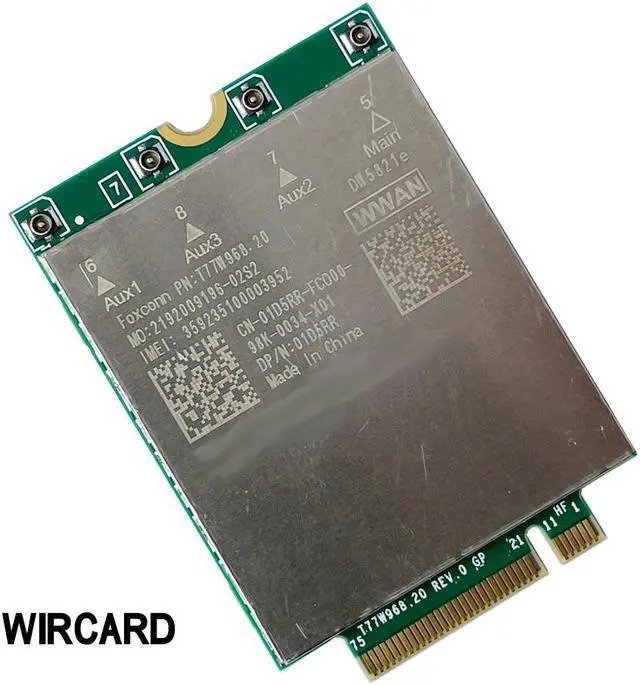

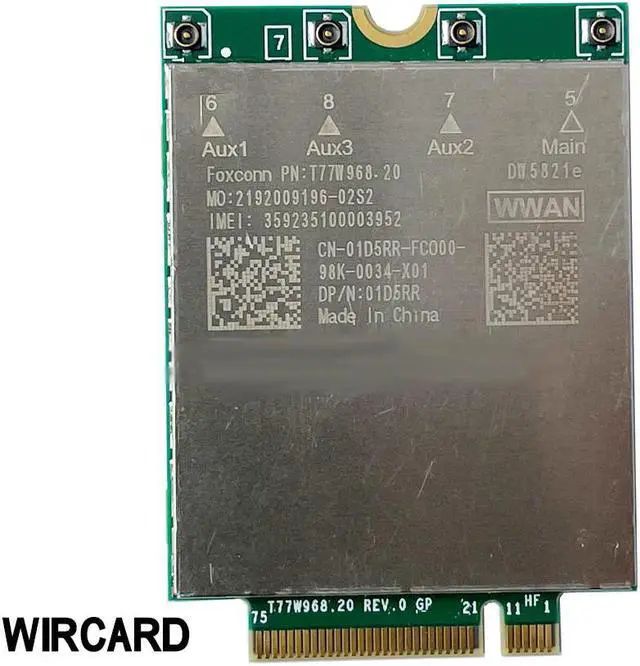

T77W968 DW5821e-eSIM X20 LTE Cat16 1Gbps FDD-LTE TDD-LTE 4G module For Dell 5420 5424 7424 7400 7210 Laptop

Certification:CE
Origin:CN(Origin)
Wireless Protocol:LTE
Kind:Internal
Application:Laptop
Model Number:DW5821e-eSIM
Package:Yes
Interface Type:M.2
Card Type Device:4G Card
Type:wireless

Note:This version only for e-SIM Card ,not support other SIM card (Dw5821e with
e-SIM enabled),WW
excluding China, Turkey ,US market .
Key features
5xDL CA (Up to 100MHz, 256QAM)
2xUL CA (Up to 40MHz 64QAM)
MIMO: 4X4(band plan: B1/2/3/4/7/30/40/41/66), 4X2, 2X2
ue-CategoryUL 13 (UL: 150Mbps) + ue-CategoryDL 16 (DL: 1.0Gbps) @2X2
Overview
Network technology
LTE & GSM
LTE category support
Cat 16
Form factor
M.2
Product description
T77W968 is the data card solution that delivers wireless wide-area network (WWAN) connectivity for the LTE, UMTS (HSDPA/HSUPA/HSPA / DC-HSPA ) and GPS/Glonass/Beidou protocols in one hardware configuration LTE Bands: LB:B26(5/18/19)/8/12(17)/13/14/20/28/29;MB: B1/2(25)/3/4(66)/32;HB: 7/30/38/39/40/41/42/43/48;LAA:B46(DL only) WCDMA Bands: 1/2/4/5(6/19)/8/9
