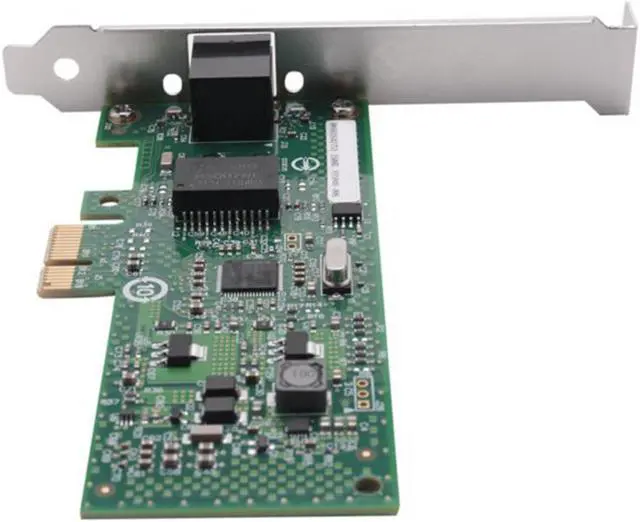

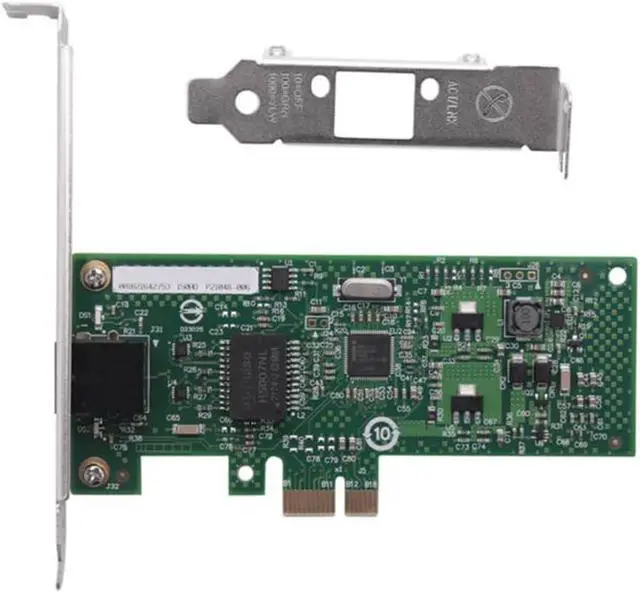

PCI-E Gigabit Network Adapter EXPI9301CT CT Desktop 82574L Chipset NIC Compatible with PCI-E 1X,4X,8X,16X Slot

Transmission Rate:10/100/1000Mbps
Certification:NONE
Origin:CN(Origin)
Kind:External
Type:wireless
Package:Yes
Data Rate Supported per Port:10, 100 1,000 Mbps
Bus Type:PCI Express 1.1 (2.5 GTs)
Bus Width:x1 lane PCI Express operable in x1, x4, x8, x16 slots
Bus Speed (x1, encoded rate):2.5 Gbps unidirectional; 5 Gbps bidirectional
Connectors:RJ45
Interrupt Levels:INTA, MSI, MSIX
IEEE Support:802.3z
Typical Power Consumption:1.9W
LED Indicators:off=10 Mb; green=100 Mb; yellow=1000 Mb
Dimension(WxLxH):2.181 x 4.696 x 4.725 inch 5.53 x 11.92 x 12 cm

PCI-E Gigabit Network Adapter EXPI9301CT CT Desktop 82574L Chipset NIC Compatible with PCI-E 1X,4X,8X,16X Slot
Bus Type: PCI Express 1.1 (2.5 GT/s). With Low Profile. Compatible with PCI-E 1X,4X,8X,16X slot. Support Windows 2003 Server/vista/Virtual Server 2005,Red Hat Enterprise Linux*4 or Later,Professional 9.2 or Later,BSD 5.X or Later
Support PEX EXPI9301CTBLK Product Type: Gigabit Ethernet Card Network Technology: 10/100/1000Base-T Host Interface: PCI Express Interfaces/Ports: 1 x RJ-45 Features:
82574L Gigabit Ethernet Controller: High performance and reliability; low power
Data Rate Supported per Port: 10, 100 & 1,000 Mbps
Bus Type: PCI Express 1.1 (2.5 GT/s)
Bus Width: x1 lane PCI Express operable in x1, x4, x8, x16 slots
Bus Speed (x1, encoded rate): 2.5 Gbps uni-directional; 5 Gbps bi-directional
Connectors: RJ-45
Interrupt Levels: INTA, MSI, MSI-X
IEEE Support: 802.3z
Typical Power Consumption: 1.9W
LED Indicators: LINK/ACTIVITY LED: off=NO LINK; on=LINK; blinking=ACTIVITY SPEED LED: off=10 Mb; green=100 Mb; yellow=1000 Mb
Dimension(WxLxH): 2.181 x 4.696 x 4.725 inch / 5.53 x 11.92 x 12 cm
Plug and play
Material:ABS
colour:green
Package Contents:
1 x Network card
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
