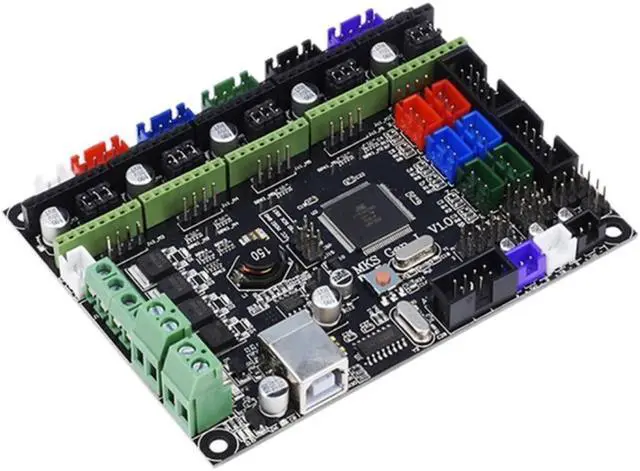

3D Printer Motherboard MKS GEN L V1.0 Control Board Compatible with Ramps1.4 Marlin Firmware with USB Cable

Origin:CN(Origin)
Item Type:Flexible Shaft Coupler
Product name:MKS GEN L V1.0 control board
Material:Plastic Metal
Product size:11084mm

3D Printer Motherboard MKS GEN L V1.0 Control Board Compatible with Ramps1.4 Marlin Firmware with USB Cable
1. Combine 2560 and ramps1.4 on one board, which solves the problem of cumbersome and easy failure of Ramps1.4 combination interface.
2. Users can replace the motor drive by themselves, support 4988 drive and 8825 drive, TMC2100 drive
3. Reserve an external drive signal, and an external large drive can be used to drive 57 and 86 motors.
4. Using high-quality MOSFET tubes, the heat dissipation effect is better, and the long-term work is stable.
5. Using a dedicated power chip, support 12V-24V power input, to solve the problem of heating and insufficient power supply of the Ramps voltage conversion chip.
6. The stable and reliable filter circuit greatly reduces the possibility of interference, and avoids crashes and random running during the printing process as much as possible.
7. Adopting CH340 serial port chip, under the premise of ensuring stability and reliability, reducing costs, it also solves the problem of the previous 16U2 driver that is difficult to install.
8. It can accept 24V input. Under the same system power, the hot-bed current can be reduced to 1/4, which effectively solves the heating problem of the hot-bed MOS tube.
9. Using the open source firmware Marlin, the configuration is exactly the same as ramps1.4, which can directly replace Ramps1.4.
10. It can be directly connected to 2004LCD display and 12864LCD display, and can support TFT28 and TFT32 touch screens.
11. The XYZ axis uses different color terminals to correspond to the motor and limit switch, which is convenient for wiring.
12. Humanized design, use different color terminals to distinguish the drive direction, reduce the probability of reverse insertion, and prevent damage to the motherboard due to reverse drive insertion.
Specification:
Product name: MKS GEN L V1.0 control board
size:110x84mm
Material: Plastic + Metal
colour:Black

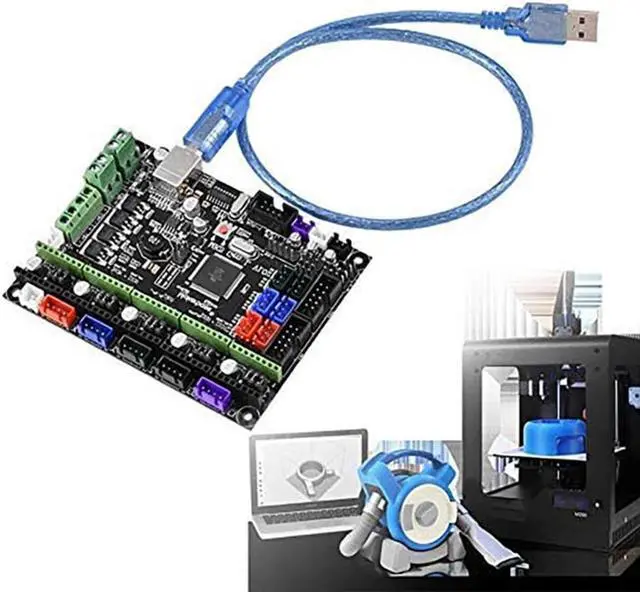

Package Contents:
1 x MKSGen-L V1.0 motherboard
1 x USB cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
