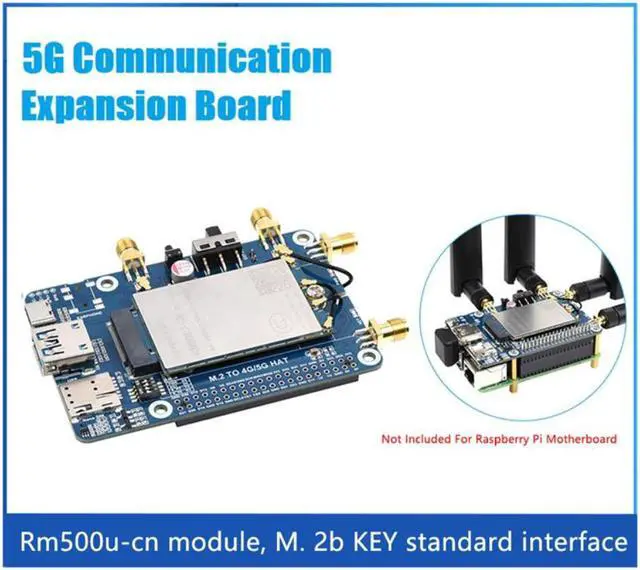

Waveshare M.2 To 4G/5G HAT For Raspberry Pi RM500U-CN 5G HAT Communication Board For 5G NSA And SA Networking US Plug

Demo Board Type:ARM
Origin:CN(Origin)
ROM Capacity:None
Model Number:Ne
Certification:NONE

Waveshare M.2 To 4G/5G HAT For Raspberry Pi RM500U-CN 5G HAT Communication Board For 5G NSA And SA Networking US Plug

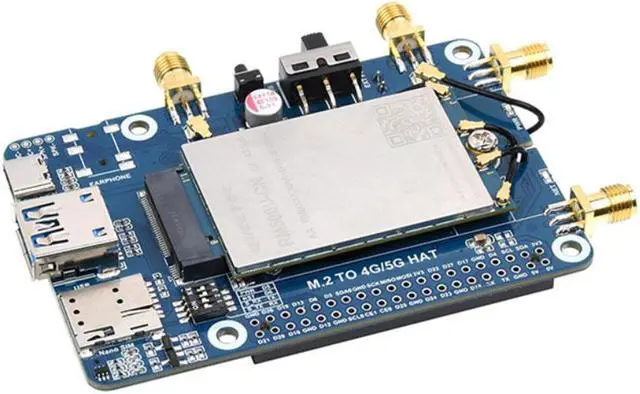

On-board UART, PWR and RST control pins, built-in level conversion, support DIP switch enable, compatible with for master controllers such as Raspberry Pi or Arduino
On-board USB Type-C interface, which can be enabled by switch, can be used for external power supply to supply power to the module separately, so as to connect more loads, the power supply is stable and flexible
The on-board power switch, reset button and LED indicator light are convenient for the control module to switch on and off and check the running status
On-board two SIM card slots, dual-card single-standby, can be switched and enabled by AT command
On-board high-efficiency power supply circuit, can output up to 3A current
Support RM500U-CN core module, support 5G and LTE-A multiple network standards, support 5GNSA and SA networking
Integrate rich network protocols, support a variety of drivers and software functions, support Windows/LinuxAndroid and other operating systems
Onboard USB 3.1 interface, backward compatible with USB2.0, can be used to connect to a computer, Raspberry Pi or Jetson Nano motherboard for high-speed 4G Internet access
Working frequency
5G LTE: 3GPP Release 15 NSA/SA operation, Sub-6 GHz
5G NR: n41, n78, n79
5G NR NSA: n1, n28, n41, n77, n78, n79
5G NR SA: n1, n41, n77, n78, n79
data transfer rate
5G SA Sub-6: Downstream 2 Gbps; Upstream 1 Gbps
5G NSA Sub-6: Downlink 2.2 Gbps; Uplink 575 Mbps
LTE: Downlink 600 Mbps; Uplink 150 Mbps
UMTS: Downstream 42.2 Mbps; Upstream 11 Mbps
Operating temperature: -30 °C ~ +75 °C
Extended temperature: -40 °C ~ +85 °C
Plug Type: US Plug, it applies to Canada, India, Mexico, Thailand, Taiwan, the United States, the Philippines and so on.
Material:PCB
colour:blue
Package Contents:
1 * M.2 TO 4G/5G HAT
1 * RM500U-CN module

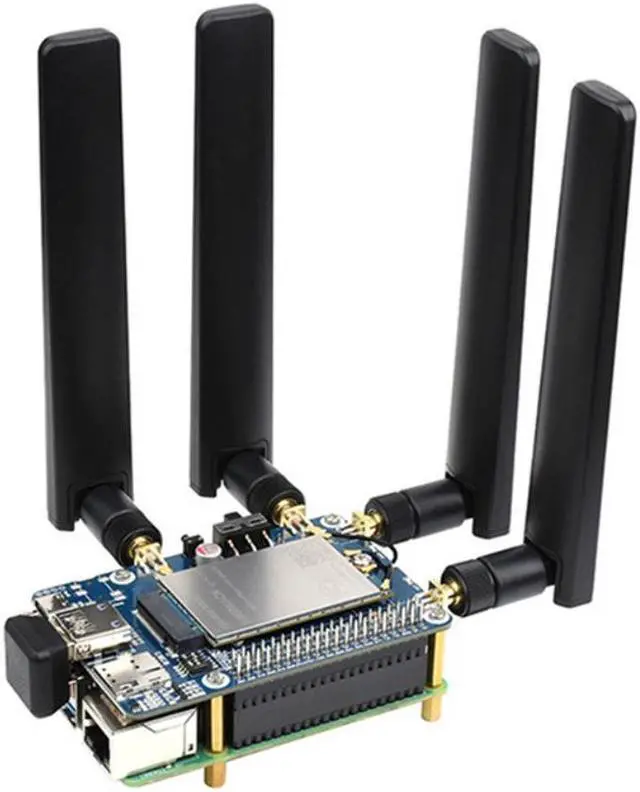

4 * Antenna
4 * IPEX adapter cable
1 * Long row seat 2 * 20PIN
1 * 5V 3A Type-C power supply
1 * Double head usb3.0 data cable
1 * USB3.0 adapter
1 * USB2.0 adapter
4 * SMA protective cap
1 * screw pack
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
