Cable Matters 110 Punch Down Tool with 110 Blade
- Punch down tool cuts and terminates cable into a 110 patch panel or keystone jack
- Removable blade of impact style tool with twist and lock sockets can be stored in the tool body for transport
- Adjustable impact force settings (Lo/Hi) for cable termination into a jack, block, or patch panel with 110 IDC terminals
- Keystone jack compatible with Cat 3, Cat 5, Cat 5e, Cat 6, and Cat 6A network or voice cable; Pair with a keystone jack punch down stand for a safe a secure installation
- 110 block tool uses spring-action for fast, low-effort cable seating and termination with reversible cut/punch blade
Overview
Specs
Reviews

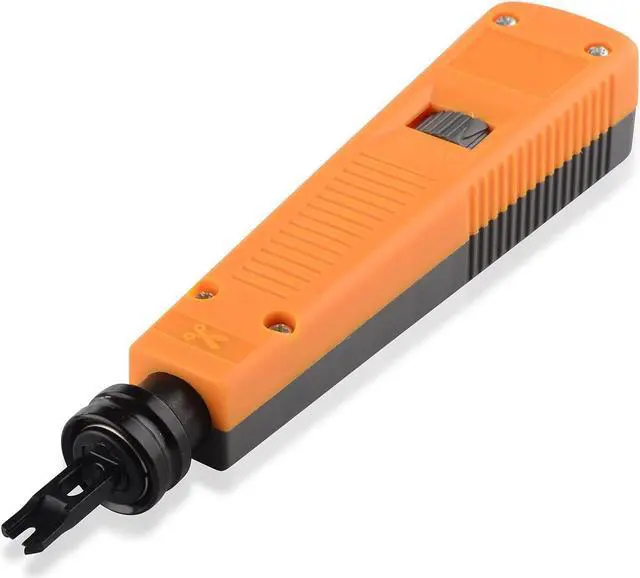

Quick Termination Tool
This handy punch-down impact tool is spring-loaded for terminating twisted pair cable into 110-style patch panels, connecting blocks and keystone jacks. Dual function blade (cut/punch) for cutting wire or pushing into IDC terminal. Swap the blade from the cut side using the twist and lock collar socket.
The impact adjustment dial adjusts the force of the spring-action from low to high to meet different installation applications. The blade can be stored in the pocket at the bottom of the tool (sharp edge first).
Study Impact Tool
1) Impact resistant housing with easy-grip treads
2) Reversible 110 blade for cutting or placing wires

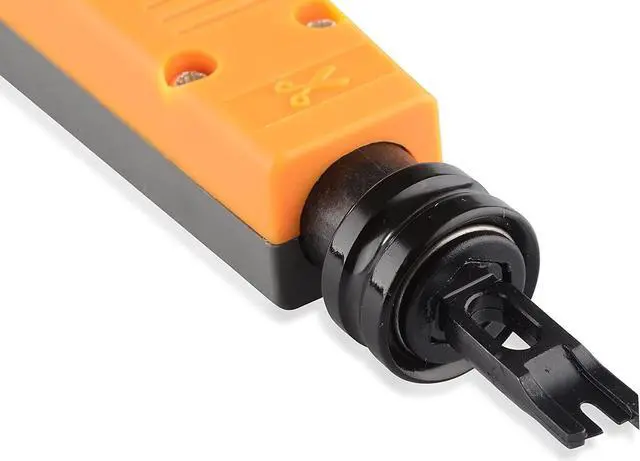

Inserting & Removing the Blade
Pull down the neck collar on the tool
Insert the blade while holding down the collar
Release the collar
Twist the blade while holding down the collar to remove it
Study Impact Tool

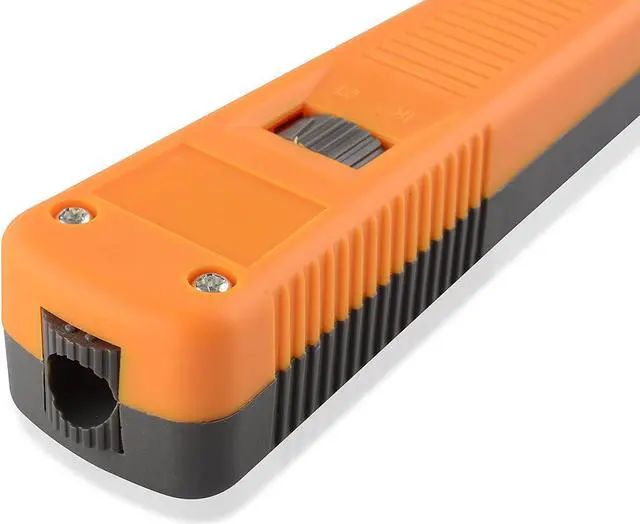

3) Tool Blade Storage
Slide open the storage area wheel
Place the blade in the opening
Slide the wheel closed
4) Adjustable Impact Pressure
Turn the wheel to the right for the High (H) setting
Turn the wheel to the left for the Low (L) setting

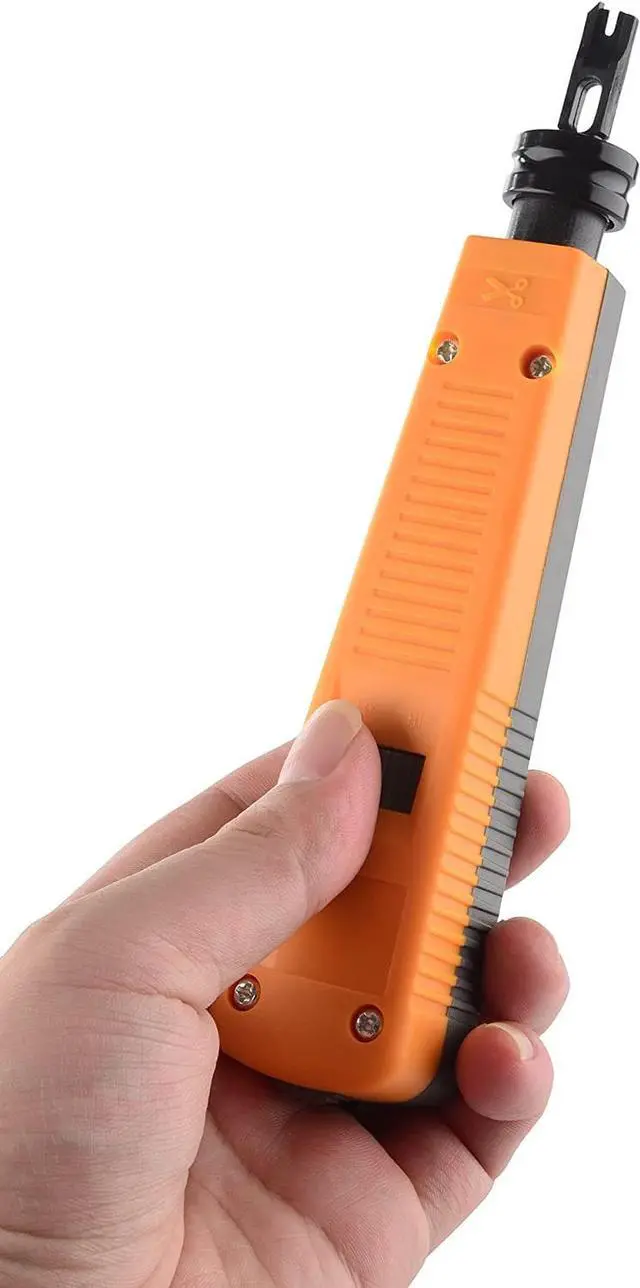

Lightweight & Portable Tool
Weighs only 4.3 ounces
Store removable blade in the tool
Fits easily in a toolkit or tool belt
Keystone Jack Companion Tool
Terminate Cat 6 keystone jacks
A punch-down stand simplifies the work
Place the cut side of the blade facing out
Package Contents
Punch-Down Impact Tool
Remove blade with a safety cap
Instructions on the package
This handy punch-down impact tool is spring-loaded for terminating twisted pair cable into 110-style patch panels, connecting blocks and keystone jacks. Dual function blade (cut/punch) for cutting wire or pushing into IDC terminal. Swap the blade from the cut side using the twist and lock collar socket.
The impact adjustment dial adjusts the force of the spring-action from low to high to meet different installation applications. The blade can be stored in the pocket at the bottom of the tool (sharp edge first).
Study Impact Tool
1) Impact resistant housing with easy-grip treads
2) Reversible 110 blade for cutting or placing wires
Inserting & Removing the Blade
Pull down the neck collar on the tool
Insert the blade while holding down the collar
Release the collar
Twist the blade while holding down the collar to remove it
Study Impact Tool
3) Tool Blade Storage
Slide open the storage area wheel
Place the blade in the opening
Slide the wheel closed
4) Adjustable Impact Pressure
Turn the wheel to the right for the High (H) setting
Turn the wheel to the left for the Low (L) setting
Lightweight & Portable Tool
Weighs only 4.3 ounces
Store removable blade in the tool
Fits easily in a toolkit or tool belt
Keystone Jack Companion Tool
Terminate Cat 6 keystone jacks
A punch-down stand simplifies the work
Place the cut side of the blade facing out
Package Contents
Punch-Down Impact Tool
Remove blade with a safety cap
Instructions on the package
