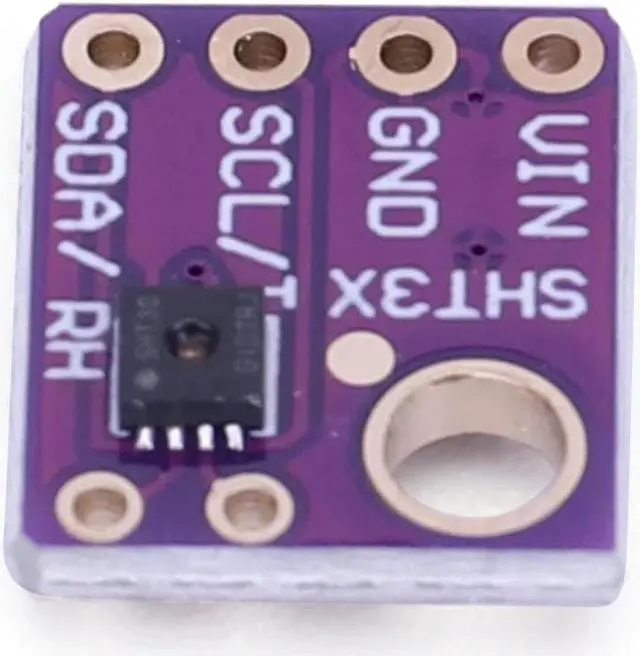

2.4-5.5V SHT30 Digital Temperature and Humidity Sensor Module GY-SHT30-D Accuracy Breakout with 6Pin Pin Header Module

SHT30 Digital Temperature and Humidity Sensor Module 2.4 - 5.5V GY-SHT30-D Temperature Humidity Sensor Module with 6Pin Pin Header
Feature:

1.
High Precision: This module uses the SHT30 chip and measures temperature and humidity data through factory calibration, linearization, and temperature compensation, ensuring reliable and precise measurements.

2.
Alarm Output: The module includes temperature and humidity alarm output functions, alerting users when conditions exceed preset thresholds.

3.
Wide Operating Range: With an optimal operating temperature range of 5-60 and humidity range of 20%RH-80%RH, this sensor is suitable for a wide range of applications.

4.
Low Power Consumption: With a working voltage of 2.4 - 5.5V (recommended 3.3V ), this module has low power consumption, making it ideal for battery-powered devices.

5. Durable and
Reliable: The module has a long-term drift of less than 0.25 %RH/year and less than 0.03 /year, ensuring its durability and reliability over time. Its temperature measurement range of -40-125 and humidity measurement range of 0-100%RH make it suitable for use in a variety of environments. However, it should be avoided in volatile organic environments to prevent damage to the device.
Specification:
Optimal working temperature and humidity range: 5 -60 20% RH-80% RH
Working voltage: 2.4 - 5.5V (recommended 3.3V )
Humidity measurement range: 0 to 10% RH
Humidity accuracy error: 3% RH
Resolution: 0.01 % RH
Repeatability: 0.10 - 0.25 % RH
Response time: 8s
Long term drift: <0.25% RH/year
Temperature measurement range: -40 -125
Temperature accuracy error: 0.3
Resolution: 0.015
Repeatability: 0.06 - 0.24
Response time: >2s
Long term drift: <0.03 /year
Size: 12 * 10 * 1mm/ 0.47 * 0.39 * 0.03 inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x SHT30 Digital Temperature and Humidity Sensor Module
