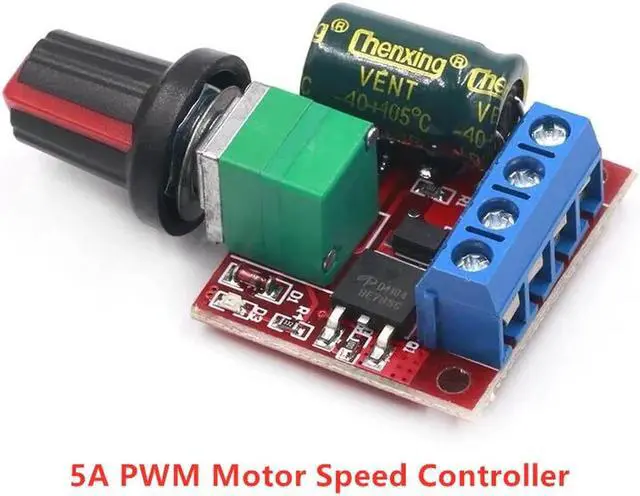

DC 1.8V-35V 5A 90W PWM Motor Speed Controller Low Voltage Motor Speed Controller PWM Adjustable Drive Module
- DC 1.8V-35V 5A 90W PWM Motor Speed Controller Low Voltage Motor Speed Controller PWM Adjustable Drive Module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
5A:
Operating voltage: DC 4.5V -35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz
Size: 30mm x 26mm x 14mm (Without Handle)
Precautions:
DC motor governor input is DC, can not directly connected to the
AC (for example: home 220V AC), otherwise it will burn!
DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
Specifications
:Operating voltage: DC 4.5V -35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz
Size: 30mm x 26mm x 14mm (Without Handle)
Precautions:
DC motor governor input is DC, can not directly connected to the
AC (for example: home 220V AC), otherwise it will burn!
DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
