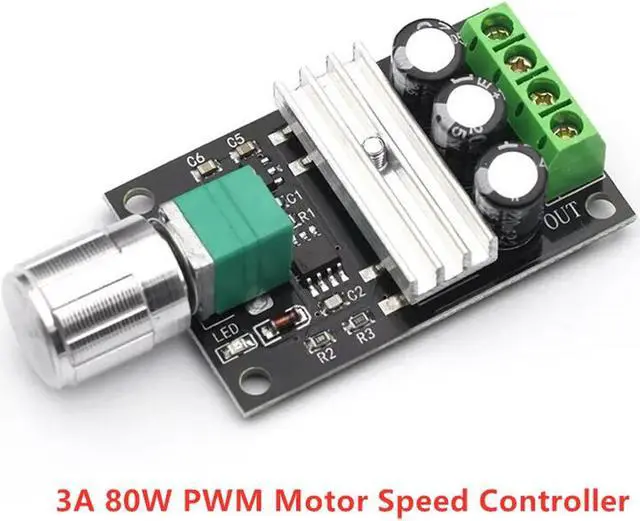

DC 1.8V-35V 3A 80W PWM Motor Speed Controller Low Voltage Motor Speed Controller PWM Adjustable Drive Module

3A

Specifications

:
Input power supply: DC 6 V-28 V
Maximum output power: 80 W
Maximum continuous output current: 3A
Adjustable working cycle: 0%-100%
Instructions:
One. connect your DC (or load) engine to the engine terminals as specified in the wiring diagram.
2. connect a voltage of 10 V-36 V DC to the circuit that makes sure the correct polarity of the connection. Note that the voltage applied to the engine will be a voltage source applied to the circuit. It is recommended to add a proper line fuse rating with positive feed in order to protect the circuit from any possible short circuits.
THREE. Now you can control the engine speed through a pot.
