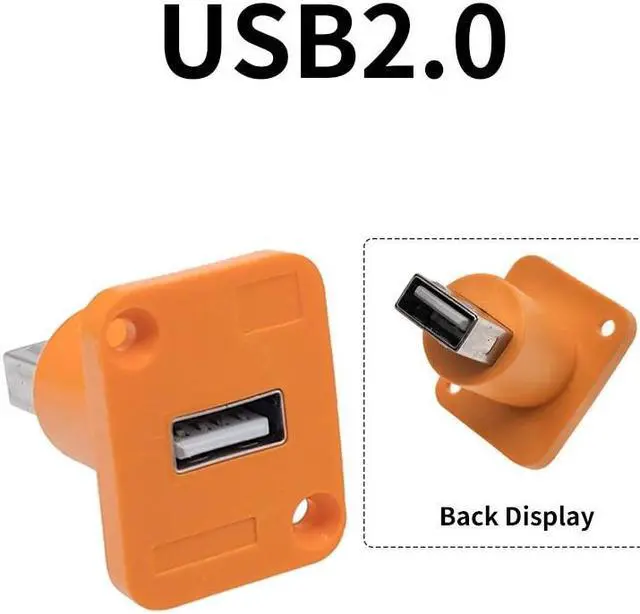

USB Socket Orange D Type Female USB2.0 Plastics Connector Panel Mounting HDMI Straight RJ45(USB2.0)

Product parameters:

1.
Rated current: 1.5AMPS

2.
Rated voltage: 125VAC

3.
Insulation resistance: 500M

4.
Compression strength: AC 1000V 50HZ or 60HZ for 1 minute

5.
Contact resistance: 20M

6.
Environmental temperature: -40~+80

7.
Conductive material: Phosphor bronze plated with gold

8.
Product certification: UL/ROHS
Mechanical properties:

1.
Insertion force: 2 gold wires=350g/4 gold wires=500g/6 gold wires=750g/8 gold wires=900g/10 gold wires=1050g

2.
Matching strength: 7.7K g between plug and socket

3.
Service life: 750 times of plugging and unplugging
Material:

1.
Shell material: PBT/LCP/PA66/PA46/NL9T

2.
Shell color: orange

3.
Contact material: phosphorus bronze

4.
Electroplating: Gold plated with NICKEL. GOLD, thickness 1.5U "/3U"/6U "/15U"/30U "/50U"

5.
Protective layer: 0.2 thick brass nickel plating
Size
