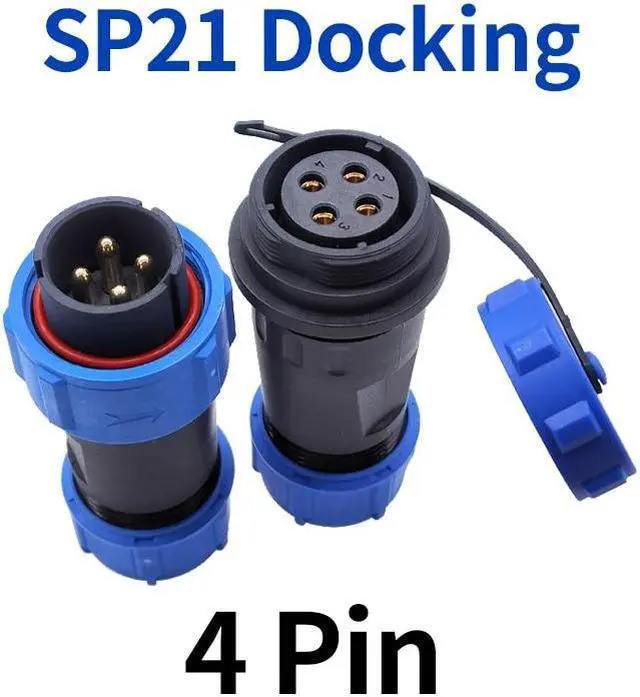

SP2110 SP2111 Waterproof Connector Docking IP68 Power Cable Connector SP21(4Pin)
- SP2110 SP2111 Waterproof Connector Docking IP68 Power Cable Connector SP21(4Pin)
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification parameter
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Operating temperature: -35 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)
Sealing: in line with IP68
Applicable wire diameter: diameter 6.0 ~ 12.0 mm
Mechanical life: more than 500 times
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Operating temperature: -35 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)
Sealing: in line with IP68
Applicable wire diameter: diameter 6.0 ~ 12.0 mm
Mechanical life: more than 500 times
