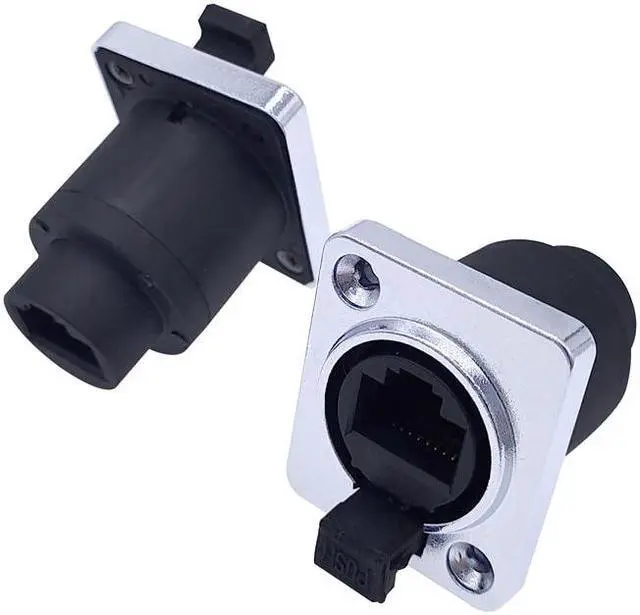

1 piece RJ45 Waterproof Network Connector with Rubber cover,IP65 8p8c D type Panel Mount Socket RJ45 Ethernet Connector(Straight)

Specifications

:
Connecting mode: Plug/unplug,
Protection level: IP65
Cable specification: 0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range: 5.5 mm ~7mm
Contact diameterQty: 8
Current rating (A): 1.5A
Operating voltage(AC.
V. rms): 500V
Withstand voltage(AC.
V)1min: 2500V
Contact resistance: <1m
Insulation resistance: >500M
Durability: 500 mating&unmating cycles
Temperature rating: -40C~80C
Method of connecting cable: Solder
Prevent the combustion level: UL94-V0
Temperature rise: 20A per contact at 30C, 25A per contact at 40C, 30A per contact at 50C.
Material:
Shell&insulated parts: High performance engineering plastics
Hardware metal: Zinc alloy (pearl hard chromium)
Contact pin: Copper alloy(gold-plated)
Spring: Stainless steel
Sealing: Silica gel
Main characteristics:
- Sealed against dust and fluid (IP65)
- Vibration resistance, impact resistance, stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment - The smart grid
- Medical equipment - Server
- Solar energy equipment - Ship equipment
- Electric power equipment - Vehicle equipment
- Communications equipment
- Heavy machinery
