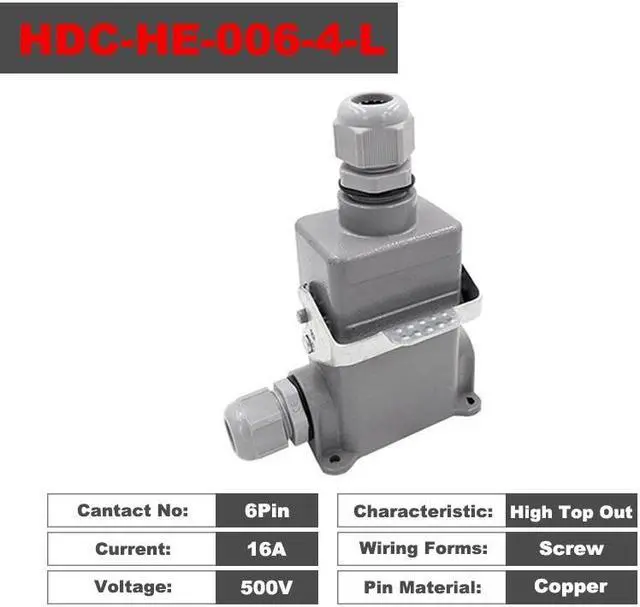

Heavy Duty Connectors HDC-HE-006-4-L F/M 6pin Screw connection 16A 500V Industrial rectangular Aviation connector plug(HDC-HE-006-4-L)

Heavy Duty Connectors HDC-HE-006-4-L F/M 6pin Screw connection 16A 500V Industrial rectangular Aviation connector plug(HDC-HE-006-4-L)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Parameter
Plug body
Working current: 16A
Working voltage: 500V
Rated pulse voltage: 6KV
Pollution level: 3
Isolation resistance: 10
Material: Polycarbonate
Operating temperature range: -40~+125
Flame retardant grade (according to UL94): V0
Conductor section: 0.37 - 2.55 mm
Installation method: hole installation
Connectors
Material: Copper
Surface treatment: silver plated
Contact resistance: = <1m ohm
Wiring form: screw connection
Screw tightening torque/test torque: 0.25N m+
Wiring forms: screw fixing
Metal upper case/base
Material: Cast aluminum alloy
Surface treatment: high temperature powder coating
Locking device: stainless steel or iron galvanized
Operating temperature range: -40~+125
Protection class: IP65
