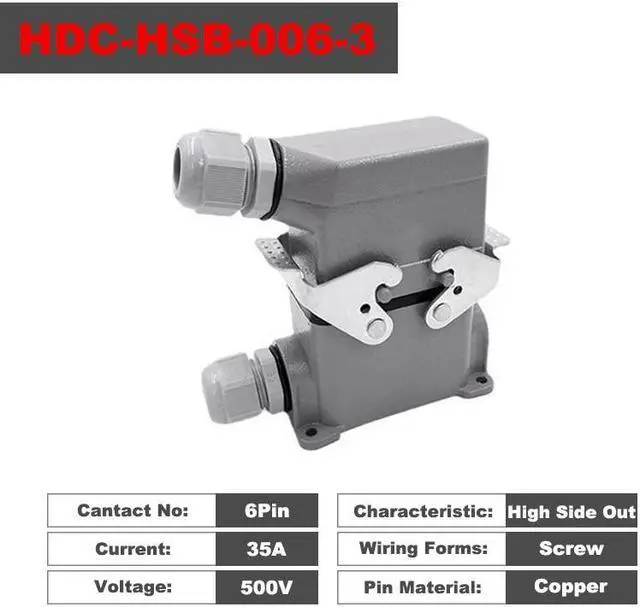

Heavy Duty Connectors HDC-HSB-006-3 F/M 6pin Screw connection 35A Industrial rectangular Aviation connector plug(HDC-HSB-006-3)

Be the first to review this product...
  • Heavy Duty Connectors HDC-HSB-006-3 F/M 6pin Screw connection 35A Industrial rectangular Aviation connector plug(HDC-HSB-006-3)
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
Parameter
Plug body
Working current: 35A
Working voltage: 500V
Rated pulse voltage: 6KV
Pollution level: 3
Isolation resistance: 10
Material: Polycarbonate
Operating temperature range: -40~+125
Flame retardant grade (according to UL94): V0
Conductor section: 0.5 - 6mm
Installation method: hole installation
Connectors
Material: Copper
Surface treatment: silver plated
Contact resistance: = <1m ohm
Wiring form: screw connection
Screw tightening torque/test torque: 0.25N m+
Wiring forms: screw fixing
Metal upper case/base
Material: Cast aluminum alloy
Surface treatment: high temperature powder coating
Locking device: stainless steel or iron galvanized
Operating temperature range: -40~+125
Protection class: IP65
