Cooling Fan Replacement for Dell WD19TB WD19TBS WD19DC WD19DCS K20A, 0C96VF C96VF EG50060S1-C390-S9A DC28000NZF0 DC28000NZS0 4-Pin DC5V
- Compatible models: WD19TB, WD19TBS, WD19DC, WD19DCS, K20A
- Compatible part number: 0 C96VFC96VFEG50060S1-C390-S9ADFS200005940TFL8XDC28000NZF0DC28000NZS0
- Original replacement, plug and play, no need for modification, perfectly matching the cooling structure of the docking station
- Rated parameters: DC 5V/0.38A (some versions 0.5A), power 2.25W
- 4-pin 4-wire PWM interface, supporting temperature control and speed regulation, low load silent, high load strong heat dissipation
- With a speed of up to 3500 RPM and an air volume of 6.08 CFM, it effectively solves the problems of overheating, frequency reduction, crashes, and restarts in the docking station
+
+
Overview
Specs
Reviews
Replacement Cooling Fan for Dell WD19 Series Docking Stations

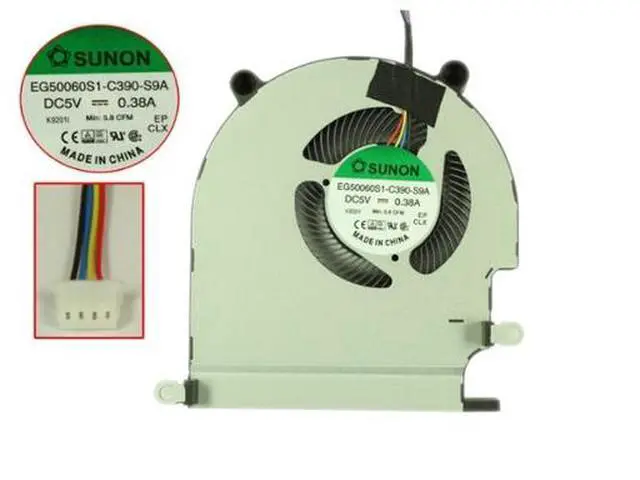

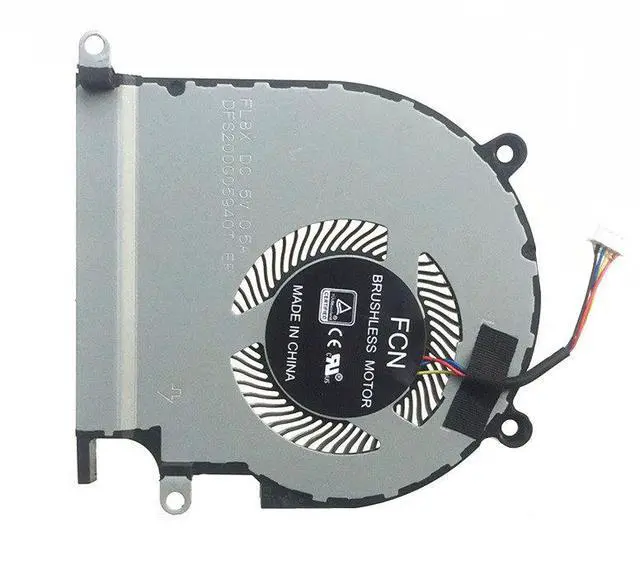

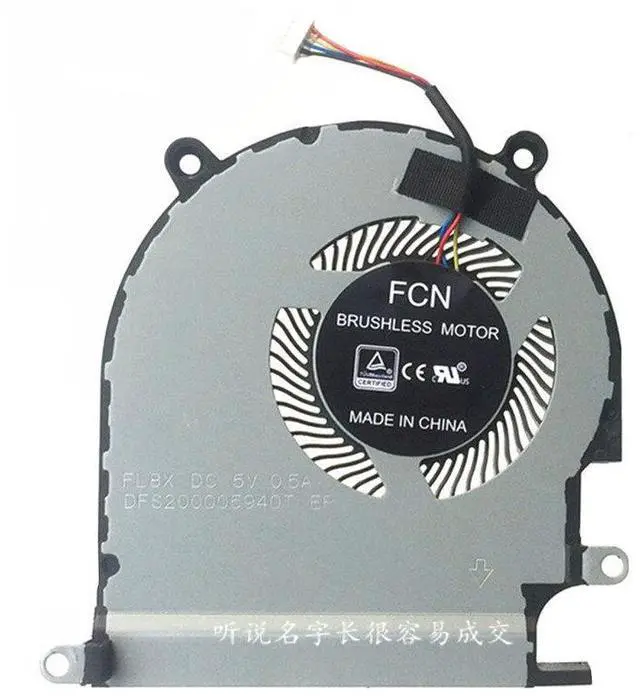

This high-quality cooling fan is designed as a direct replacement for Dell WD19TB, WD19TBS, WD19DC, WD19DCS, and K20A docking stations. It matches the original part numbers 0C96VF, C96VF, EG50060S1-C390-S9A, DFS200005940T, FL8X, DC28000NZF0, and DC28000NZS0, ensuring perfect compatibility and easy installation.
Powered by DC 5V / 0.38A (2.25W) with a 4-pin PWM connector, the fan supports automatic speed adjustment based on temperature, delivering efficient cooling when needed and quiet operation at idle. With a maximum speed of 3500 RPM and airflow of 6.08 CFM, it effectively prevents overheating, throttling, and unexpected shutdowns of your docking station.
Built with a Sunon motor and durable sleeve bearing, the fan operates at a low noise level of 32dB and offers long-term reliability. The standard 81.8×81.3×17.2mm size and plug-and-play design allow for quick, tool-free replacementno soldering required.
Ideal for repairing or upgrading your Dell WD19 series docking station, this brand-new fan restores optimal thermal performance and extends the lifespan of your device.
- Compatible Models: WD19TB, WD19TBS, WD19DC, WD19DCS, K20A
- Compatible Part Numbers: 0C96VF, C96VF, EG50060S1-C390-S9A, DFS200005940T, FL8X, DC28000NZF0, DC28000NZS0
- Voltage: DC 5V
- Current: 0.38A (0.5A optional)
- Power: 2.25W
- Connector: 4-Pin 4-Wire PWM
- Speed: Up to 3500 RPM
- Airflow: 6.08 CFM
- Noise Level: 32dB
- Size: 81.8×81.3×17.2mm
- Bearing Type: Sleeve Bearing
- Condition: 100% New
- Warranty: 90 Days
