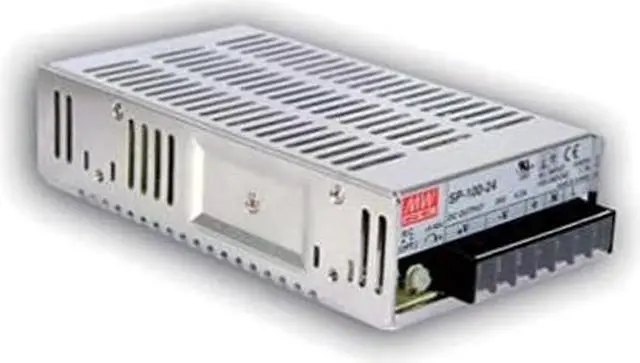

Meanwell SP-100-27 Power Supply - 100W 27V 3.8A - PFC

Features:
Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Optional remote ON/OFF control
100% full load burn-in test
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:85~264VAC; 120~370VDC
AC inrush current (max.):Cold start, 35A at 230VAC
DC adjustment range:-5%~+10% rated output voltage
Overload protection Range:105%~150%
Overload protection Type:Constant current limiting, auto-recovery
Over voltage protection Range:110%~135%
Over voltage protection Type:Shut off, AC recycle to re-start
Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature:-10~+60°C
Safety standards:UL60950-1, TUV EN60950-1,
EMC standards:EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3
Connection:7P / 9.5mm pitch terminal block with cover
Dimension (LxWxH):179x 99x 45
Case No.:915A
Packing:20pcs/14.3kg
