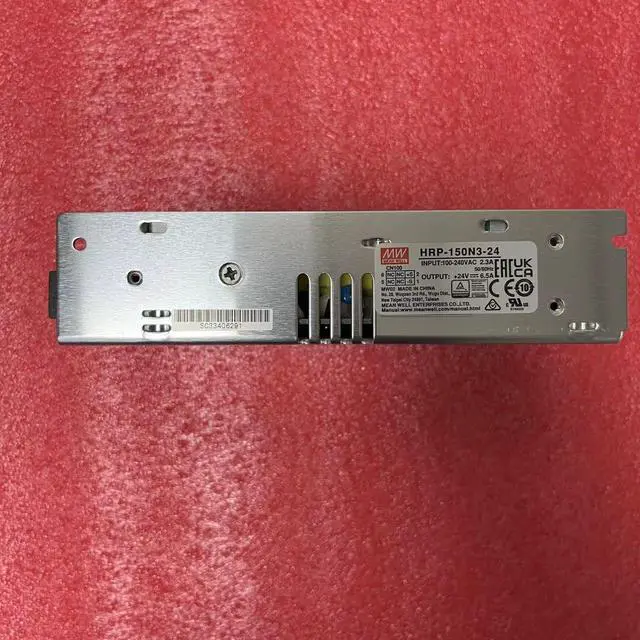

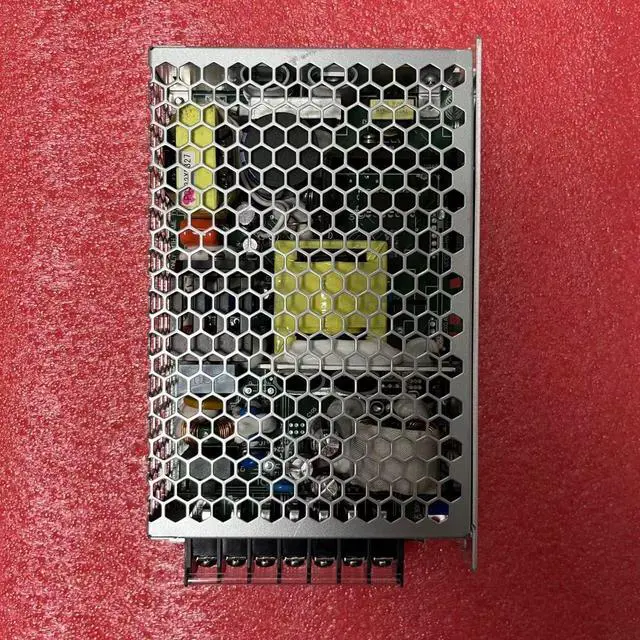

Mean Well HRP-150N3-24 156W Ultra-High Peak Power Supply HRP-150N3 24V/6.5A
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds

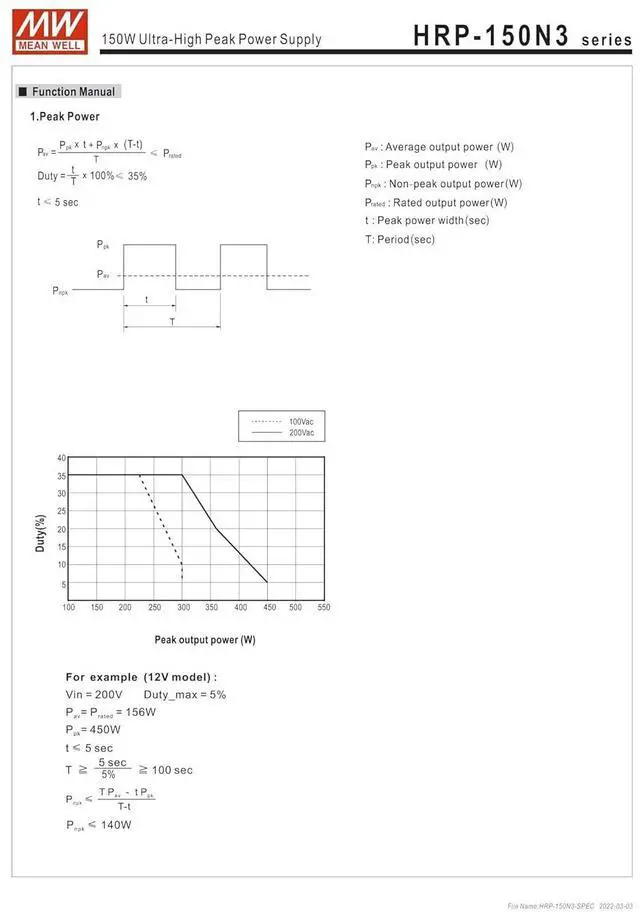

- 300% peak power capability
- Built-in constant current limiting circuit
- Fanless design,Cooling by free air convection
- Protections: Short circuit / Overload / Over voltage /Over temperature
- Built-in remote sense function
- Withstand 5G vibration
- Oprating altitude up to 5000 meters(Note.5)
- Output votage adjustable ±15%(Avg.)
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HRP-150N3 series is a 150W single output AC/DC ultra-high peak power supply.This series operates at85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry.Each model is cooled by free air convection,working for the temperature up to 70 without cover.MoreoverHRP-150N3 can provide 300% short-duration peak power for motor applications andelectromechanical loads requiring much higher power during start-up.
