12V Power Supply (Class 2, UL Listed), AC/DC Adapter (100-240V 50/60Hz to 12V2A) with 4.9ft Cord (5.5x2.1mm Connector- Center Positive +)

ATTENTION! Please read the following points to determine if this power adapter is compatible with your device: 1. Does the polarity marking on your device match that of the power adapter? (Center Positive +) 2. Does the power adapters connector fit into your device? (5.5mm × 2.1mm) 3. Do the power adapters output voltage and current match your devices requirements? (12V 2A; it is recommended that your device requires 12V and no more than 2A)
Stable Output & Broad Compatibility: This adapter delivers a consistent 12Volt 2Amp (24W) power output, making it an ideal power source for a wide range of 12V devices such as Wi-Fi routers, modems, network switches, CCTV cameras, DVRs/NVRs, LED strips, external hard drives, hubs and other equipment (Some devices without a 5.5mm port may require an additional adapter).
UL Certified for Ultimate Safety & Peace of Mind: This adapter meets rigorous U.S. safety standards, ensuring complete peace of mind during use. It incorporates comprehensive protection features including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) to safeguard both the adapter and your connected devices. Its casing is constructed from flame-retardant materials (rating V-0) for enhanced safety.

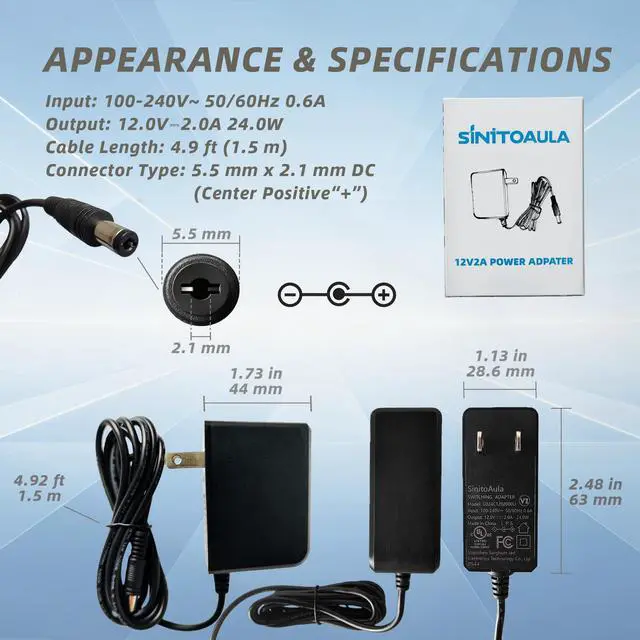

SPECIFICATIONS

Input	100-240V~ 50/60Hz 0.6A
Output	12.0V?2.0A 24.0W
Cable Length	4.9ft (1.5m)
Connector Type	5.5mm x 2.1mm DC (Center Positive“+”)

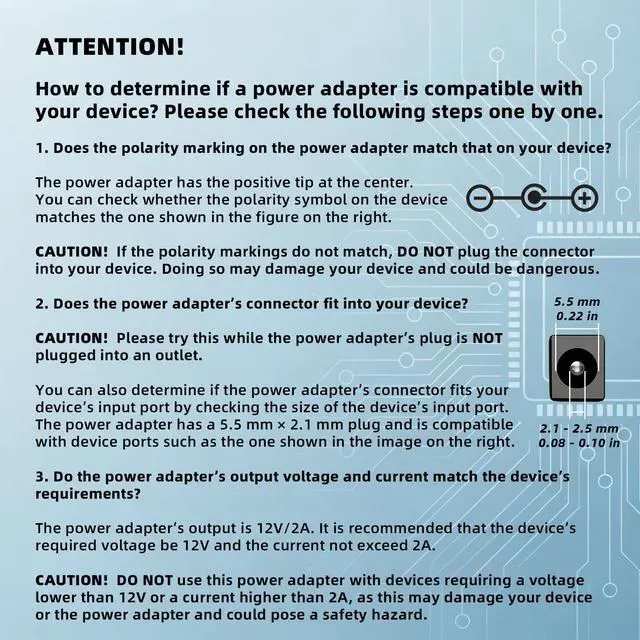

ATTENTION! How to determine if a power adapter is compatible with your device? Please check the following steps one by one.

1. Does the polarity marking on the power adapter match that on your device?

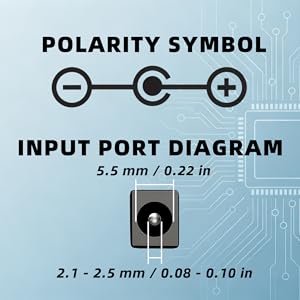

The power adapter has the positive tip at the center. You can check whether the polarity symbol on the device matches the one shown in the polarity symbol diagram.

CAUTION! If the polarity markings do not match, DO NOT plug the connector into your device. Doing so may damage your device and could be dangerous.

2. Does the power adapter’s connector fit into your device?

CAUTION! Please try this while the power adapter’s plug is NOT plugged into an outlet.

You can also determine if the power adapter’s connector fits your device’s input port by checking the size of the device’s input port.

The power adapter has a 5.5 mm × 2.1 mm plug and is compatible with device ports such as the one shown in the input port diagram..

3. Do the power adapter’s output voltage and current match the device’s requirements?

The power adapter’s output is 12V/2A. It is recommended that the device’s required voltage be 12V and the current not exceed 2A.

CAUTION! DO NOT use this power adapter with devices requiring a voltage lower than 12V or a current higher than 2A, as this may damage your device or the power adapter and could pose a safety hazard.

OTHER IMPORTANT SAFETY INSTRUCTIONS

Keep the product out of the reach of children.
Disconnect the product from the power outlet and the connected device when it is not in use.
Protect the product from extreme temperatures, hot surfaces, open flames and direct sunlight.
Keep it away from water, high humidity, moisture, strong jolts, vapors and solvents.
Do not continue to use the product if it is damaged.

Safety

Ultimate Safety

UL Listed
Over Voltage Protection (OVP)
Over Current Protection (OCP)
Over Temperature Protection (OTP)
Short Circuit Protection (SCP)
V-0 Flame-Retardant Rating

Compatibility

Broad Compatibility

Compatible with a Wide Range of 12V Devices:

Routers
Modems
CCTV Cameras
LED Strips
Hubs & More

Design

Practical Design

100-240VAC
12V / 2A
DoE Level VI
4.9 ft (1.5 m) Power Cable
Standard 5.5mm x 2.1mm DC Plug (Center Positive”+”)
