Original Mean Well DDR 60W DIN Rail DC-DC Converter Input 18-75V DC to 12V DC 5A 60W meanwell Power Supply Power Converter Transformer (24V/48Vdc to 12Vdc)

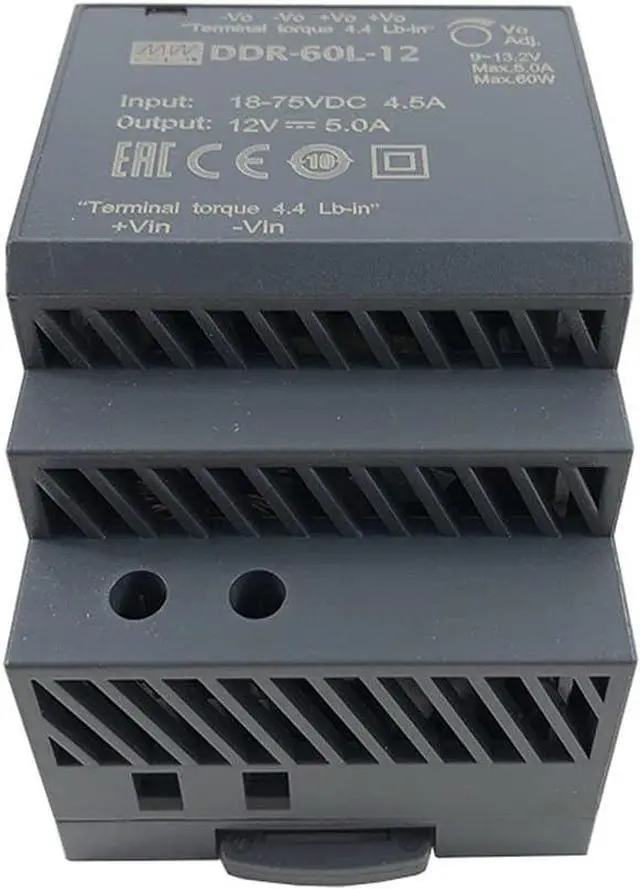

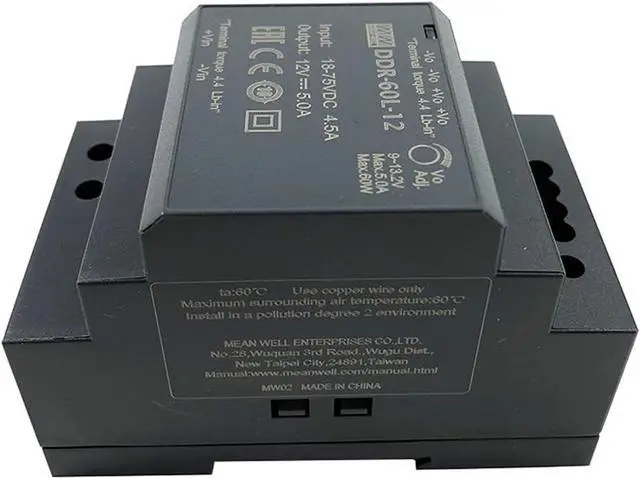

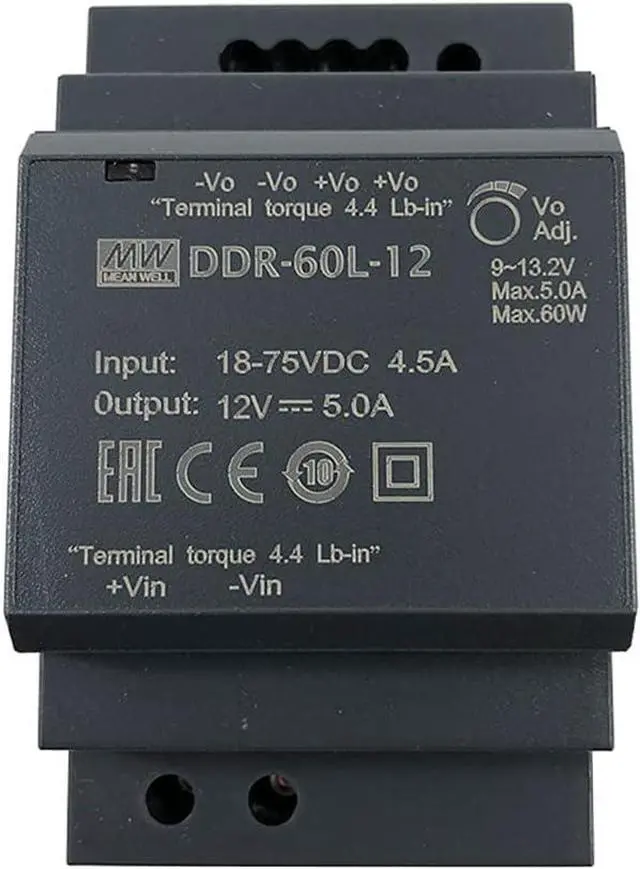

- Model DDR-60L-12 Input Range: 18-75Vdc, Output: 12Vdc 5A 60W
- 60W DIN Rail Type DC-DC Converter
- Railway & ITE applications
- Can be installed on DIN rail TS-35/7.5 or 15
- No minimum load required
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

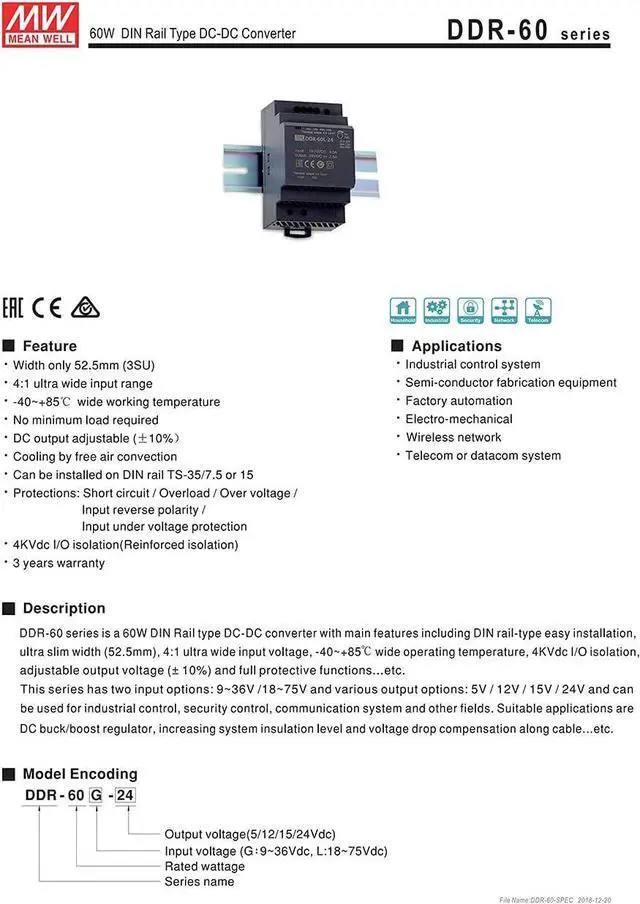

Features
Width only 52.5mm (3SU)
4:1 ultra wide input range
-40~+85°C wide working temperature
No minimum load required
DC output adjustable (+-10%)
Protections: Short circuit / Overload /Over voltage / Input reverse polarity / Input under voltage protection
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
4KVdc I/O isolation (Reinforced isolation)
3 years warranty
Description
DDR-60 series is a 60W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (52.5mm), 4:1 ultra wide input voltage, -40~+85°C wide operating temperature, 4KVdc I/O isolation, adjustable output voltage (+-10%) and full protective functions...etc.
This series has two input options: 9~36V/18~75V and various output options: 5V /12V/15V/24V and can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
Applications
Industrial control system
Semi-conductor fabrication equipment
Factory automation
Electro-mechanical
Wireless network
Telecom or datacom system
Width only 52.5mm (3SU)
4:1 ultra wide input range
-40~+85°C wide working temperature
No minimum load required
DC output adjustable (+-10%)
Protections: Short circuit / Overload /Over voltage / Input reverse polarity / Input under voltage protection
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
4KVdc I/O isolation (Reinforced isolation)
3 years warranty
Description
DDR-60 series is a 60W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (52.5mm), 4:1 ultra wide input voltage, -40~+85°C wide operating temperature, 4KVdc I/O isolation, adjustable output voltage (+-10%) and full protective functions...etc.
This series has two input options: 9~36V/18~75V and various output options: 5V /12V/15V/24V and can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
Applications
Industrial control system
Semi-conductor fabrication equipment
Factory automation
Electro-mechanical
Wireless network
Telecom or datacom system
