Mean Well 400W 5" 3" Low Profile Open Frame Power Supply 12V 33.3A Fully Modular (LOP-400-12)
- Compact Low Profile Design: 5"3" compact size with low profile (27.5mm) for space-efficient installation in various applications
- Flexible Cooling Options: 250W convection cooling capability, expandable to 400W with FAN 23CFM forced-cooling for enhanced performance
- Versatile Installation Compatibility: Suitable for Class or Class installations to accommodate different system requirements
- Enhanced Electrical Protection: Over voltage category (OVC ) rating ensures reliable operation in demanding electrical environments
- Wide Operating Temperature Range: -40 +80 wide range operation temperature allows reliable performance in extreme environmental conditions
- High Efficiency Performance: Up to 95% efficiency with universal input voltage range of 80264VAC for global applications

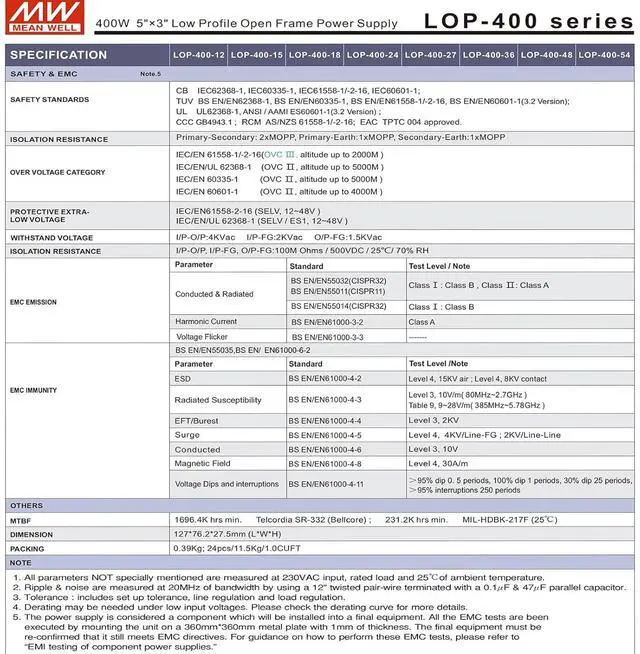

- Multiple Safety Certifications: Compliant with 62368-1/60601-1/61558-1/60335-1 standards and designed to meet 2xMOPP for medical device compatibility
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NEW, MEAN WELL Power Supply.

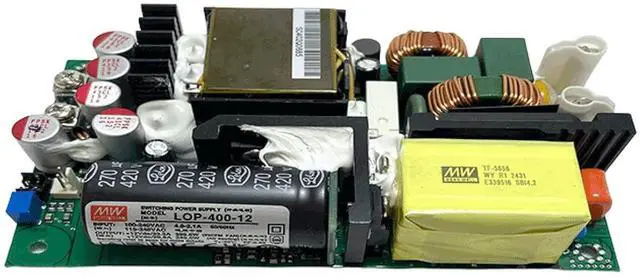

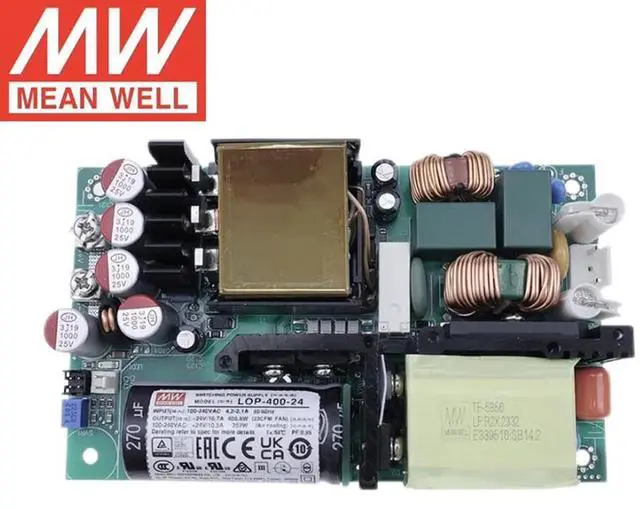

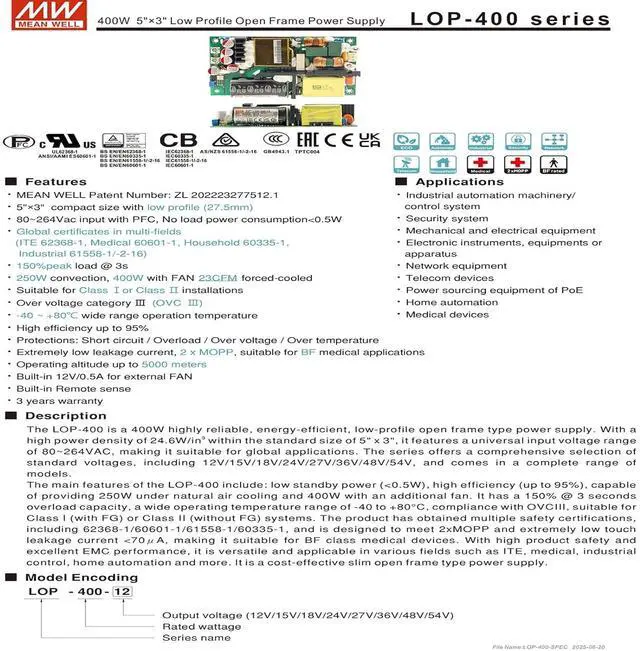

The LOP-400 is a 400W highly reliable, energy-efficient, low-profile open frame type power supply.
With a high power density of 24.6W/in3 within the standard size of 5" x 3", it features a universal input voltage range of 80~264VAC, making it suitable for global applications.

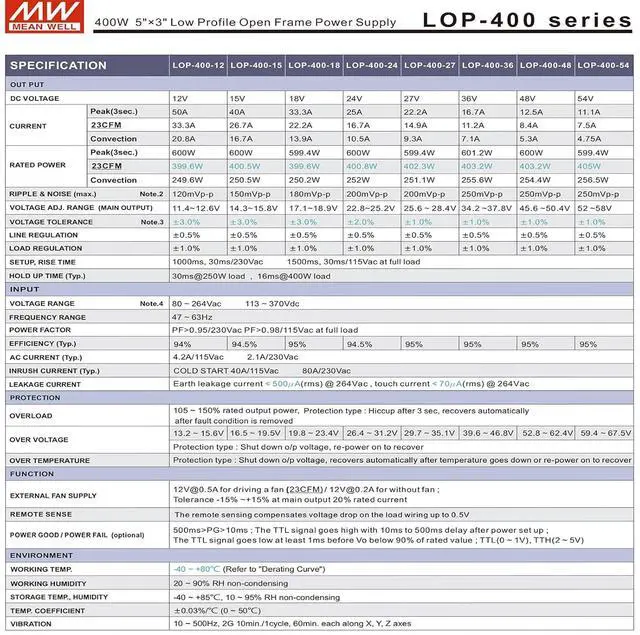

The series offers a comprehensive selection of standard voltages, including 12V/15V/18V/24V/27V/36V/48V/54V, and comes in a complete range of models.
The main features of the LOP-400 include: low standby power (<0.5W), high efficiency (up to 95%), capable of providing 250W under natural air cooling and 400W with an additional fan.
lt has a 150% @ 3 seconds overload capacity, a wide operating temperature range of -40 to +80°C, compliance with OVClll, suitable for Class l (with FG) or Class ll (without FG) systems.
The product has obtained multiple safety certifications, including 62368-1/60601-1/61558-1/60335-1, and is designed to meet 2xMOPP and extremely low touch leakage current <70A, making it suitable for BF class medical devices.
With high product safety and excellent EMC performance, it is versatile and applicable in various fields such as lTE, medical, industrial control, home automation and more.
lt is a cost-effective slim open frame type power supply.
The LOP-400 is a 400W highly reliable, energy-efficient, low-profile open frame type power supply.
With a high power density of 24.6W/in3 within the standard size of 5" x 3", it features a universal input voltage range of 80~264VAC, making it suitable for global applications.
The series offers a comprehensive selection of standard voltages, including 12V/15V/18V/24V/27V/36V/48V/54V, and comes in a complete range of models.
The main features of the LOP-400 include: low standby power (<0.5W), high efficiency (up to 95%), capable of providing 250W under natural air cooling and 400W with an additional fan.
lt has a 150% @ 3 seconds overload capacity, a wide operating temperature range of -40 to +80°C, compliance with OVClll, suitable for Class l (with FG) or Class ll (without FG) systems.
The product has obtained multiple safety certifications, including 62368-1/60601-1/61558-1/60335-1, and is designed to meet 2xMOPP and extremely low touch leakage current <70A, making it suitable for BF class medical devices.
With high product safety and excellent EMC performance, it is versatile and applicable in various fields such as lTE, medical, industrial control, home automation and more.
lt is a cost-effective slim open frame type power supply.
