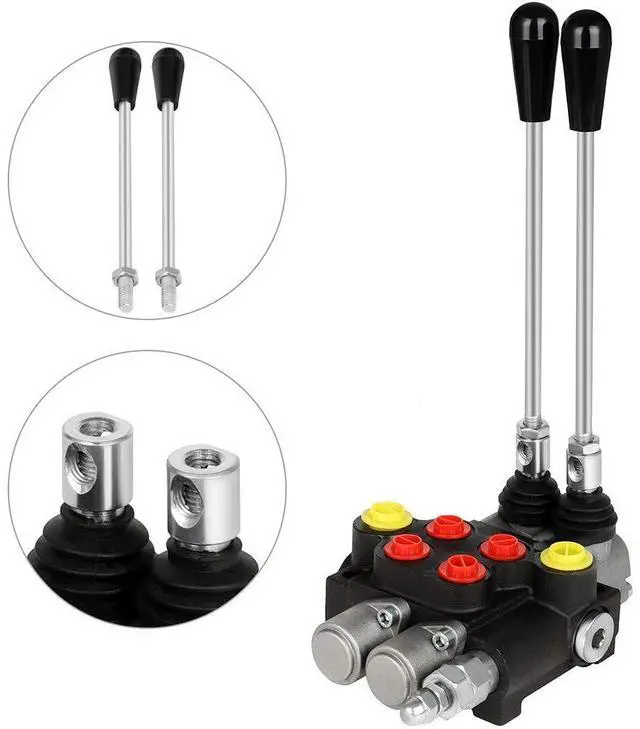

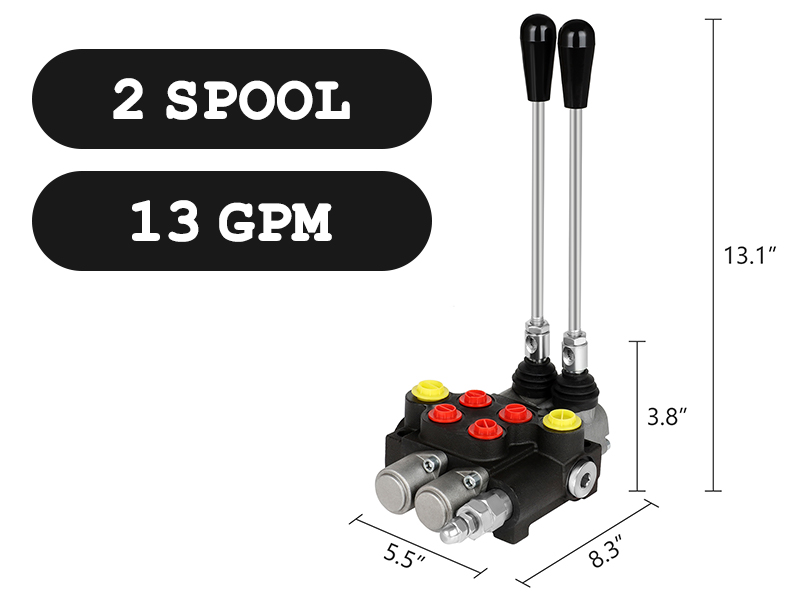

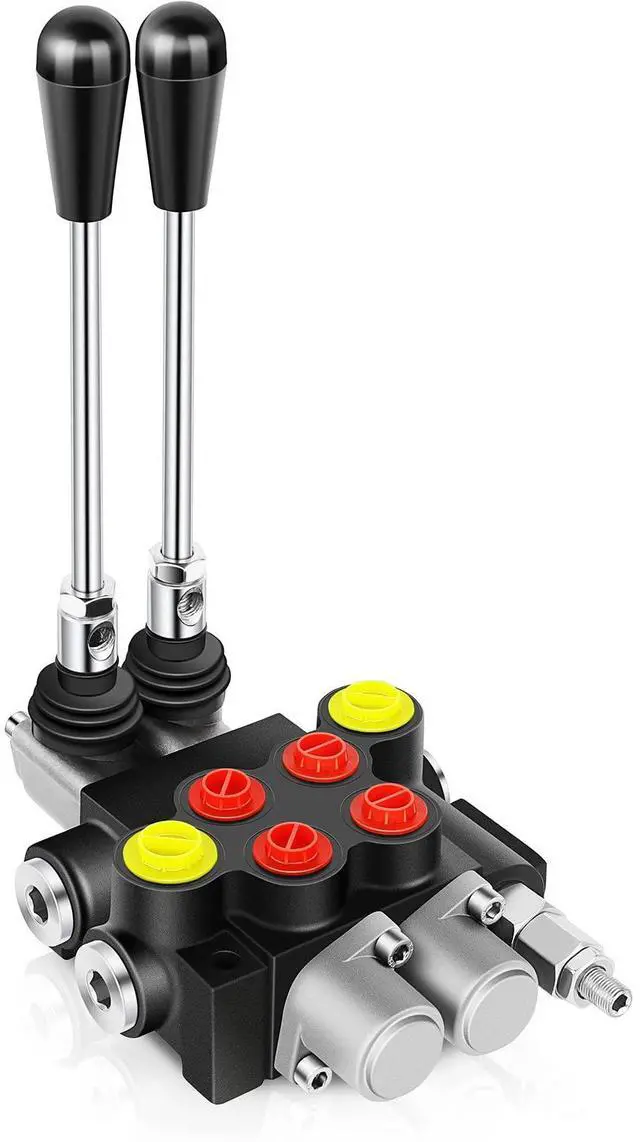

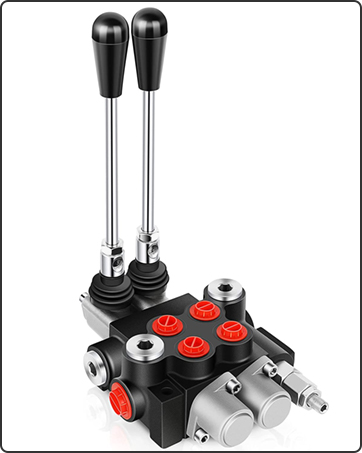

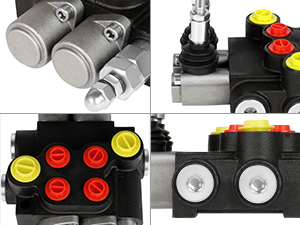

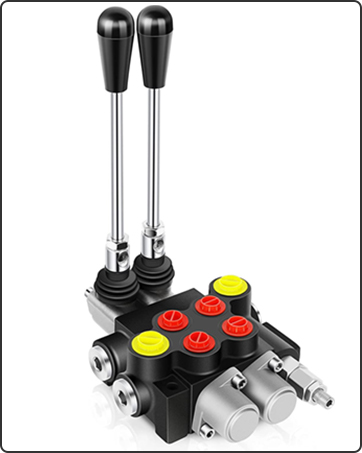

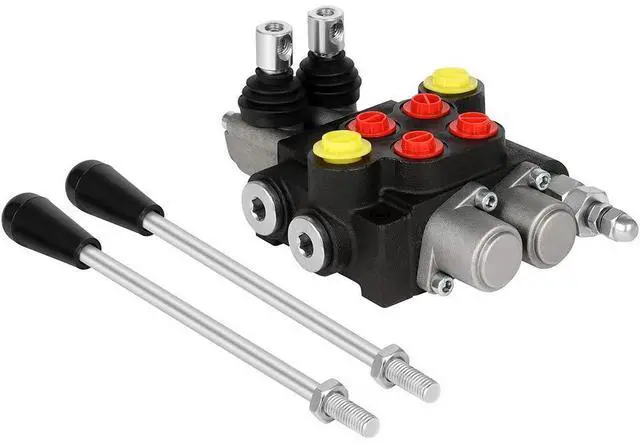

The new design of 2 Spool 13 GPM hydraulic control valve small volume,large flow,stable operation;Can manage pumps and hydraulic cylinders, motors,tanks,etc. The durable cast iron body provides long term service life. All spools for neutral spring-center with adjustable release valve are easy to use
Feature:
- High-efficiency
- Durable quality
- Multiple control methods
- Inner relief valve
- Spring Return
Specification
Feature
High-Efficiency

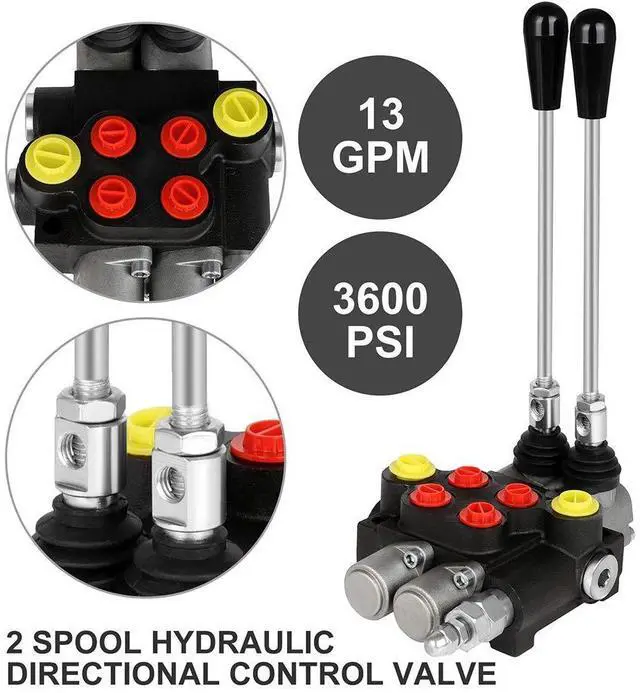

The relief valve range is up to 3600 PSI and the maximum flow is up to 13GPM.
Option

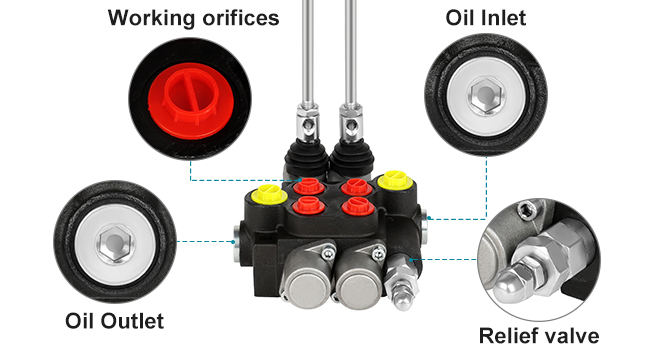

The AB port is the oil cylinder, P is the oil inlet and T is the oil return port.
Feature

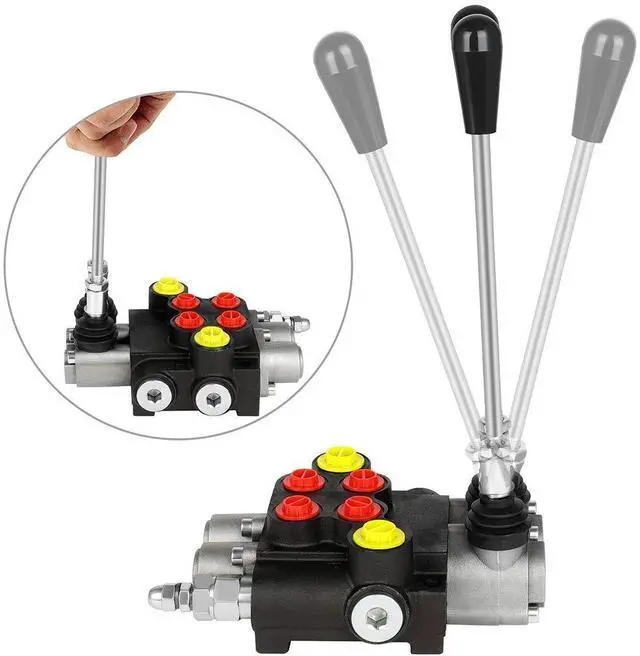

Spring Return

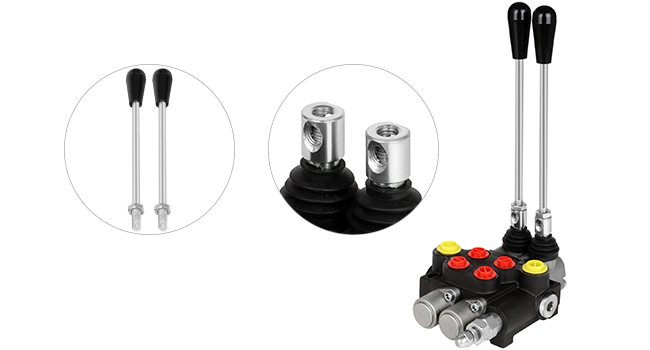

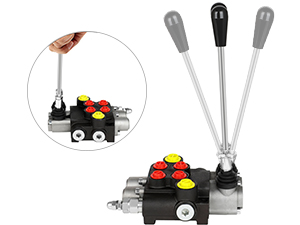

Manual control,all spools are standard double-acting,spring return to the neutral position,it is an ideal choice for double-acting cylinders.
Durable Quality
Cast iron structure can be used for a long time.
Inner Check/Relief Valve
The one-way valve ensures that the hydraulic oil does not flow back, and the overflow valve regulates the working pressure of the hydraulic system.
Widely Used
Widely used in the hydraulic system of forklifts,sanitation vehicles,small loaders and other construction machinery.
Hydraulic Control Valve

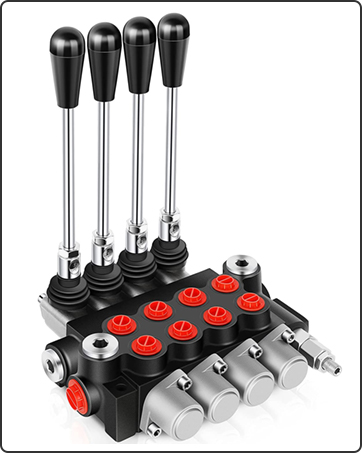

 2 Spool 13 GPM |  3 Spool 11 GPM |  4 Spool 11 GPM |  2 Spool 11 GPM |  1 Spool 11 GPM | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |

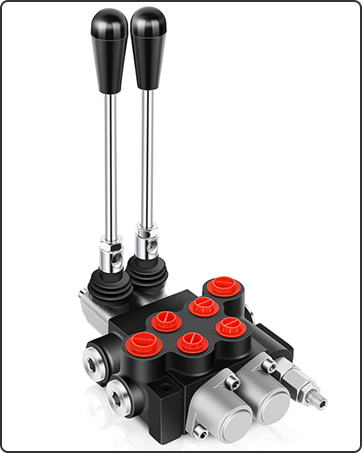

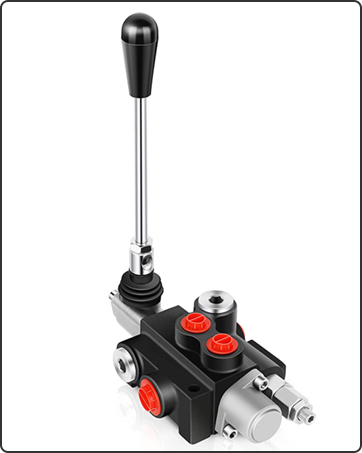

Spool | 2 | 3 | 4 | 2 | 1 |
Nominal Flow | 13 GPM (50L/min) | 11 GPM (40L/min) | 11 GPM (40L/min) | 11 GPM (40L/min) | 11GPM (40L/min) |
A & B Work Ports | G3/8" | G3/8" | G3/8" | G3/8" | G3/8" |
Inlet and Outlet | G1/2" | G1/2" | G1/2" | G1/2" | G1/2" |
Filtrating Accuracy | =10um | =10um | =10um | =10um | =10um |
GYZJ has been developing and selling tool products for many years. We have our own R&D team and sales service team.
After years of accumulation and development, GYZJ has established an image of integrity, quality and efficiency in the hearts of customers, and is deeply loved by thousands of customers.
Hydraulic Flow Control Valve
Vise
Vise
Wire Stripper Machine
Hydraulic Control Valve 1 Spool 11 GPM
Hydraulic Control Valve 2 Spool 21 GPM
Hydraulic Control Valve 4 Spool 11 GPM
Hydraulic Control Valve 2 Spool 11 GPM
Hydraulic Control Valve 2 Spool 13 GPM
GYZJ has been developing and selling tool products for many years. We have our own R&D team and sales service team.
After years of accumulation and development, GYZJ has established an image of integrity, quality and efficiency in the hearts of customers, and is deeply loved by thousands of customers.
Hydraulic Flow Control Valve
Vise
Vise
Wire Stripper Machine
Hydraulic Control Valve 1 Spool 11 GPM
Hydraulic Control Valve 2 Spool 21 GPM
Hydraulic Control Valve 4 Spool 11 GPM
Hydraulic Control Valve 2 Spool 11 GPM
Hydraulic Control Valve 2 Spool 13 GPM
The new design of 2 Spool 13 GPM hydraulic control valve small volume,large flow,stable operation;Can manage pumps and hydraulic cylinders, motors,tanks,etc. The durable cast iron body provides long term service life. All spools for neutral spring-center with adjustable release valve are easy to use
Feature:
- High-efficiency
- Durable quality
- Multiple control methods
- Inner relief valve
- Spring Return
Specification
| Condition | New |
|---|---|
| Nominal Flow | 13 GPM (50L/min) |
| A & B Work Ports | G3/8" |
| Inlet and Outlet | G1/2" |
| Oil Circuit | Parallel |
| Valve Form | O-type |
| Suitable Media | Hydraulic oil |
| Operation | Manual Control |
| Filtrating Accuracy | =10umN |
| Nominal Pressure | 16~25 MPa |
| PT Port | Intercommunication |
| Valve Port | Normally Open |
| Relief Valve | Adjustable |
| Viscosity Range | 10~400 mm2/s |
| Operating Temperature Range | -4~+176°F (-20~+80?) |
| MAX Pressure | 3600 PSI |
Feature
High-Efficiency
The relief valve range is up to 3600 PSI and the maximum flow is up to 13GPM.
Option
The AB port is the oil cylinder, P is the oil inlet and T is the oil return port.
Feature
Spring Return
Manual control,all spools are standard double-acting,spring return to the neutral position,it is an ideal choice for double-acting cylinders.
Durable Quality
Cast iron structure can be used for a long time.
Inner Check/Relief Valve
The one-way valve ensures that the hydraulic oil does not flow back, and the overflow valve regulates the working pressure of the hydraulic system.
Widely Used
Widely used in the hydraulic system of forklifts,sanitation vehicles,small loaders and other construction machinery.
Hydraulic Control Valve
2 Spool 13 GPM | 3 Spool 11 GPM | 4 Spool 11 GPM | 2 Spool 11 GPM | 1 Spool 11 GPM |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Spool | ||||
| 2 | 3 | 4 | 2 | 1 |
| Nominal Flow | ||||
| 13 GPM (50L/min) | 11 GPM (40L/min) | 11 GPM (40L/min) | 11 GPM (40L/min) | 11GPM (40L/min) |
| A & B Work Ports | ||||
| G3/8" | G3/8" | G3/8" | G3/8" | G3/8" |
| Inlet and Outlet | ||||
| G1/2" | G1/2" | G1/2" | G1/2" | G1/2" |
| Filtrating Accuracy | ||||
| =10um | =10um | =10um | =10um | =10um |
