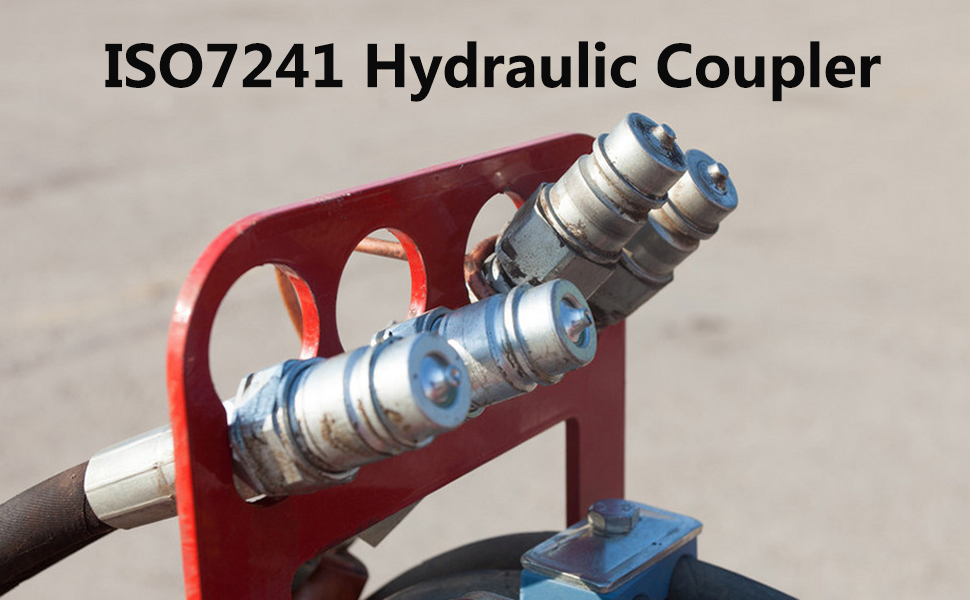

- ISO7241 Hydraulic Coupler is a hydraulic quick coupler standard that meets the international standard ISO7241. It is a general-purpose hydraulic coupler standard that aims to ensure the interchangeability of couplers produced by different manufacturers, improving equipment reliability and compatibility.

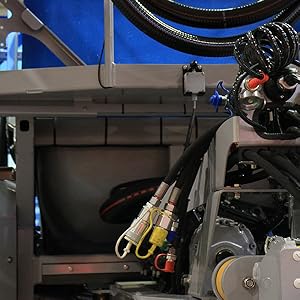

- This type of coupler is mainly used to connect different components in hydraulic systems, such as pumps, motors, valves, oil tanks, etc. It has a wide range of applications, including engineering machinery, agricultural machinery, aerospace and other fields.
- The size and structure of ISO7241 Hydraulic Coupler are specified in accordance with international standards, with a working pressure usually up to 3000bar. It has high strength, good sealing performance and high pressure resistance. Meanwhile, its connection method usually uses cone fit, making the connection more solid and reliable.
Features
- Hardened Steel Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 A series couplings
- Zinc-Nickel plating provides superior protection from corrosion
- Sleeves are hardened to resist deformation and maximize life
- Seals are rated for operating temperatures up to 250°F
- Size: 1/4" ,3/8" ,1/2" ,3/4" ,1"
- Body: NPT Thread,Self-sealing
- 3,675 PSI Rating
- 14,500 PSI Burst Rating (Coupled)
- ball Valve
- Nominal Flow Rate: 28 GPM
- Max Flow Rate: 58.12 GPM

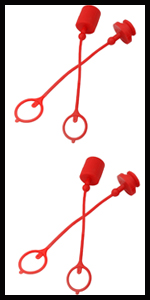

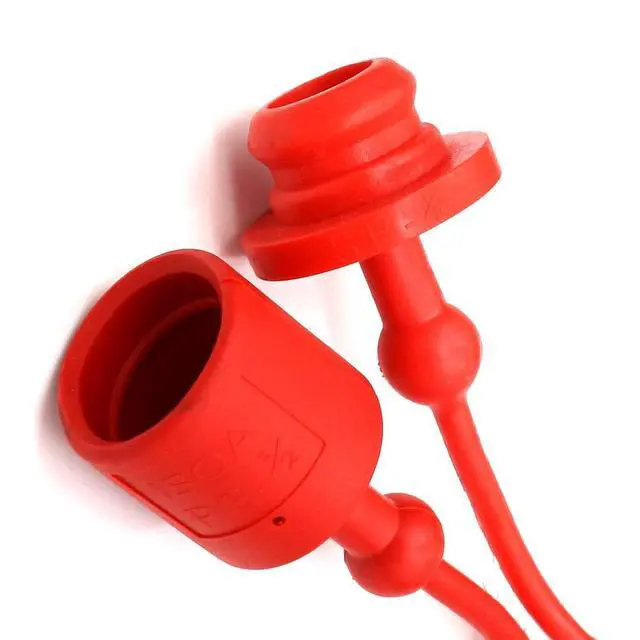

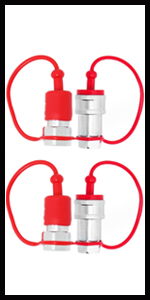

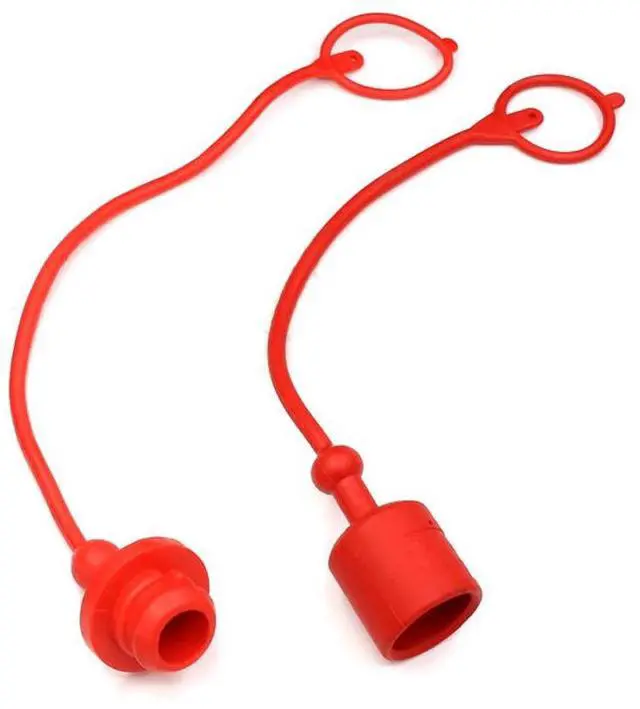

 ISO7241 B Hydraulic Quick Coupler |  ISO7241 A Hydraulic Quick Coupler |  Flat Face Hydraulic Quick Coupler |  ISO5675 Hydraulic Quick Coupler |  Flat Face Hydraulic Dust Cap Cover |  ISO Hydraulic Dust Cap Cover | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |

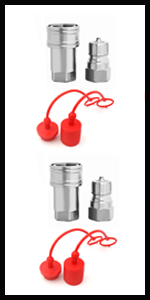

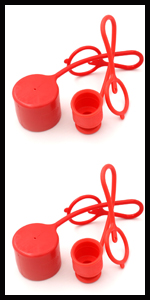

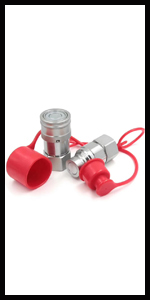

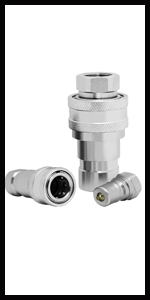

| Coupler Style | Ag (Pioneer) ISO 7241 B | Ag (Pioneer) ISO 7241 A | Flat Face ISO16028 | Ag (Ball) ISO5675 | Flat Face Dust cap | ISO7241 Dust cap |
| Style | NPT (National Pipe Thread) | NPT (National Pipe Thread) | NPT (National Pipe Thread) | Dust Cap | Dust Cap | Dust Cap |
| # of Sets | 1 | 2 | 1 | 2 | 2 | 2 |
- ISO7241 Hydraulic Coupler is a hydraulic quick coupler standard that meets the international standard ISO7241. It is a general-purpose hydraulic coupler standard that aims to ensure the interchangeability of couplers produced by different manufacturers, improving equipment reliability and compatibility.
- This type of coupler is mainly used to connect different components in hydraulic systems, such as pumps, motors, valves, oil tanks, etc. It has a wide range of applications, including engineering machinery, agricultural machinery, aerospace and other fields.
- The size and structure of ISO7241 Hydraulic Coupler are specified in accordance with international standards, with a working pressure usually up to 3000bar. It has high strength, good sealing performance and high pressure resistance. Meanwhile, its connection method usually uses cone fit, making the connection more solid and reliable.
Features
- Hardened Steel Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 A series couplings
- Zinc-Nickel plating provides superior protection from corrosion
- Sleeves are hardened to resist deformation and maximize life
- Seals are rated for operating temperatures up to 250°F
- Size: 1/4" ,3/8" ,1/2" ,3/4" ,1"
- Body: NPT Thread,Self-sealing
- 3,675 PSI Rating
- 14,500 PSI Burst Rating (Coupled)
- ball Valve
- Nominal Flow Rate: 28 GPM
- Max Flow Rate: 58.12 GPM
| Interchangeable with: | Parker 6600 |
| Interchangeable with: | Faster AN |
| Interchangeable with: | Tomco A5600 |
| Interchangeable with: | Aeroquip 5600 |
| Interchangeable with: | Dixon K |
| Interchangeable with: | SnapTite 61 |
| Interchangeable with: | Stucchi BIR |
ISO7241 B Hydraulic Quick Coupler | ISO7241 A Hydraulic Quick Coupler | Flat Face Hydraulic Quick Coupler | ISO5675 Hydraulic Quick Coupler | Flat Face Hydraulic Dust Cap Cover | ISO Hydraulic Dust Cap Cover | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| Coupler Style | Ag (Pioneer) ISO 7241 B | Ag (Pioneer) ISO 7241 A | Flat Face ISO16028 | Ag (Ball) ISO5675 | Flat Face Dust cap | ISO7241 Dust cap |
| Style | NPT (National Pipe Thread) | NPT (National Pipe Thread) | NPT (National Pipe Thread) | Dust Cap | Dust Cap | Dust Cap |
| # of Sets | 1 | 2 | 1 | 2 | 2 | 2 |
