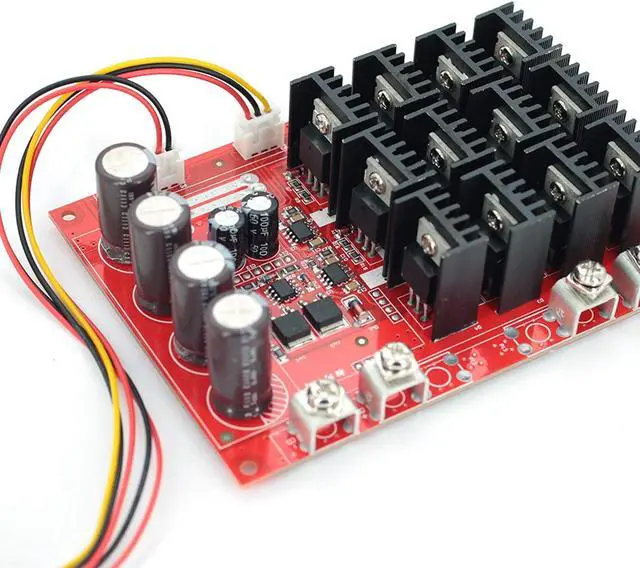

DEVMO Motor Controller,PWM DC Motor Speed Controller 10-50V 60A High Power HHO RC Driver PWM Controller Module 12V 24V 48V 3000W Extension Cord with Switch
- operating voltage range is dc 10-50v, max rated current is 60a, control power range is 0.01-3000w, working temperature range of -20-40.

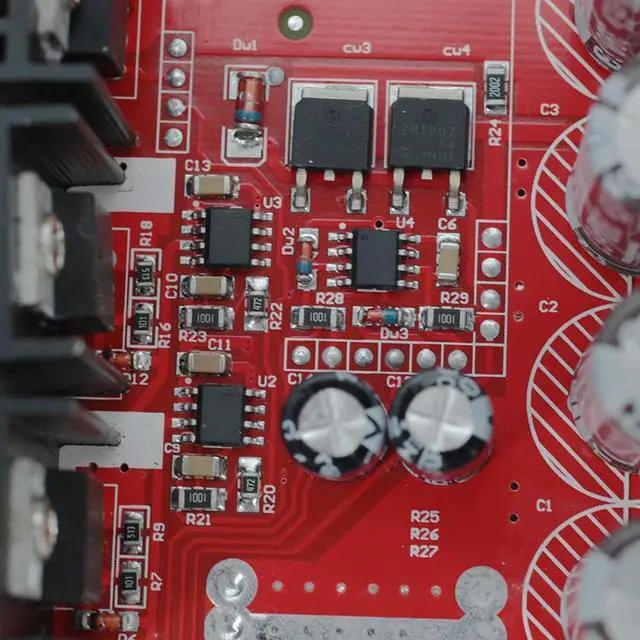

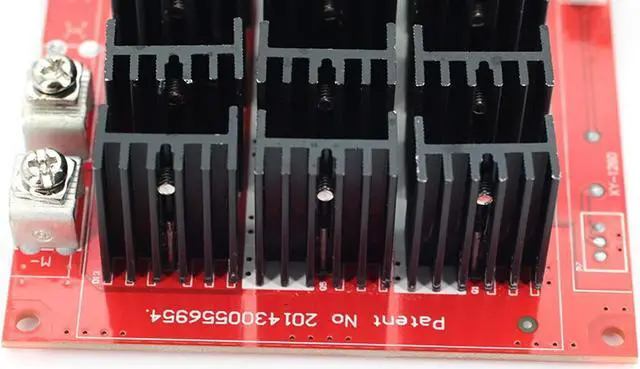

- high-end configuration: our motor driver control board uses pwm modulation system to adjust light & speed. in addition, it is designed with radiators to doing heat dissipation created by mos tube.

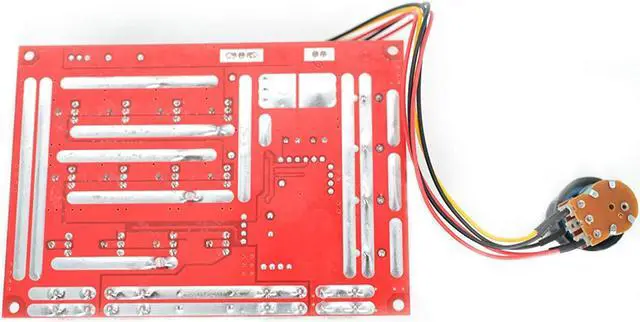

- convenient speed control: with wires to connect potentiometer and regulation switch to control the speed, it is convenient to use.
- low quiescent current: our speed regulation module is designed with low quiescent current 0.04a(when the working voltage is dc10v-50v, the quiescent current cannot exceed 40ma).
- wide application: our motor driver control board can be applied to universal dc brush motor speed regulation; car motor speed regulation; production line conveyor belt speed regulation; electronic fan speed regulation etc.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DEVMO Motor Controller,PWM DC Motor Speed Controller 10-50V 60A High Power HHO RC Driver PWM Controller Module 12V 24V 48V 3000W Extension Cord with Switch
Item Condition: New
Brand: DEVMO
Manufacturer: DEVMO
Product Information
- operating voltage range is DC 10-50V, max rated current is 60A, control power range is 0.01-3000W, working temperature range of -20-40.
- High-end Configuration: Our motor driver control board uses PWM modulation system to adjust light & speed. In addition, it is designed with radiators to doing heat dissipation created by MOS tube.
- Convenient Speed Control: With wires to connect potentiometer and regulation switch to control the speed, it is convenient to use.
- Low Quiescent Current: our speed regulation module is designed with low quiescent current 0.04A(When the working voltage is DC10V-50V, the quiescent current cannot exceed 40mA).
- Wide Application: our motor driver control board can be applied to universal DC brush motor speed regulation; car motor speed regulation; production line conveyor belt speed regulation; electronic fan speed regulation etc.
Power requirements: 10-50vdc Rated current: 60a (maximum output current) Frequency: 15000hz Control motor power: 0.01-3000w, 12V 720w (max), 24v: 1440w (max) 36v: 2160w (max), 50v: 3000w (max) Standby current: 0.04a Adjustment range: 5-100% PCB size: 122x87x32mm
