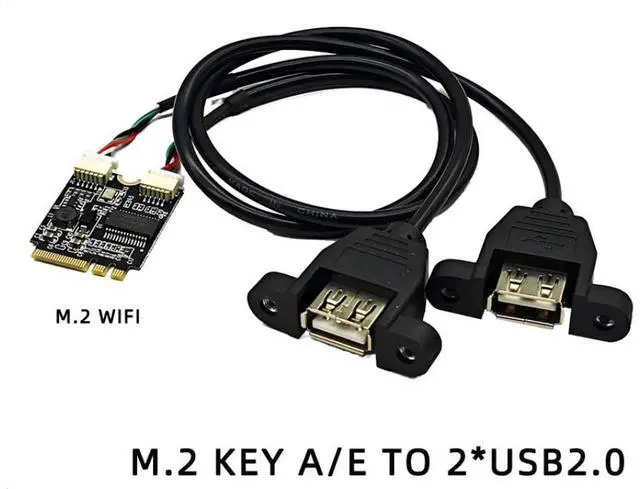

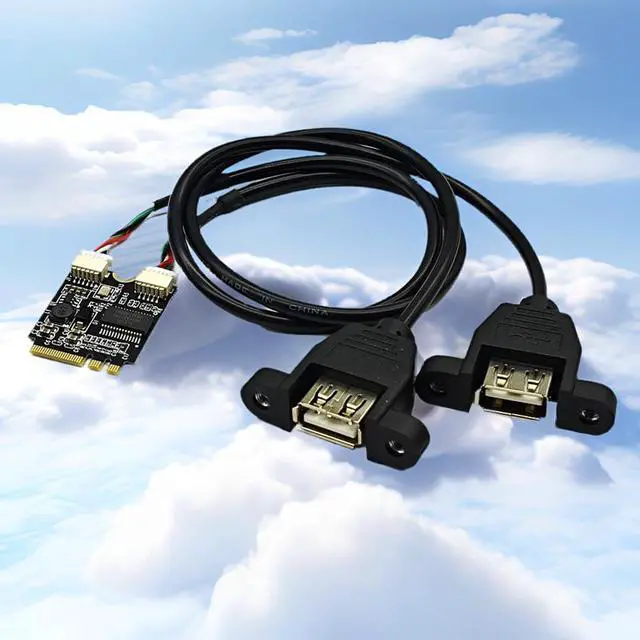

M.2 Key A/E to 2 Port USB2.0 Riser Card, GL850 Chip Dual USB Adapter with 30cm Extension Cable, for Laptop Desktop M.2 WiFi Interface Key A+E USB Expansion

Universally compatible with all laptop/desktop brands with M.2 Key A/E (WiFi/Bluetooth interface), no brand limitation. Compatible brands include Lenovo, Dell, HP, ASUS, Acer, MSI, Samsung, Huawei, Xiaomi, ThinkPad, etc. It works with any device that has an M.2 Key A, Key E or Key A+E slot (commonly used for WiFi/BT modules), converting the M.2 interface into two USB2.0 ports for external device expansion.

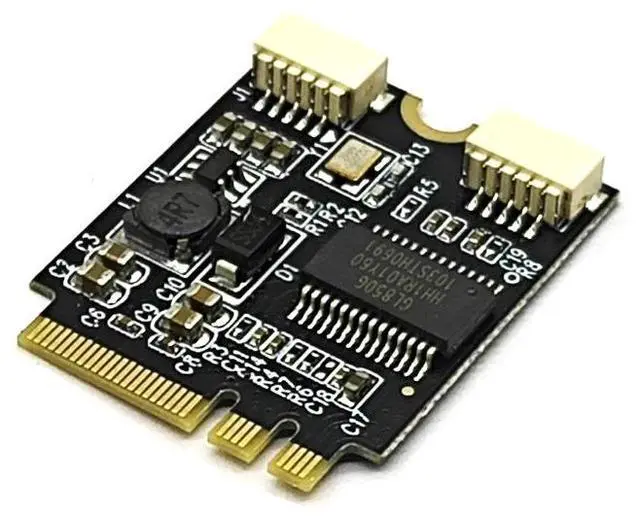

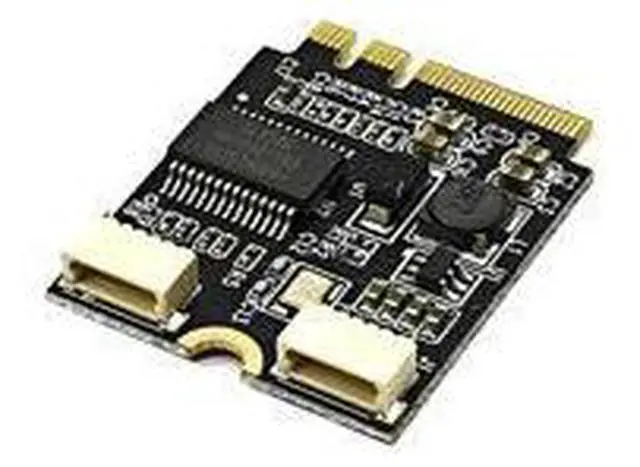

This M.2 Key A/E to 2 Port USB2.0 Riser Card is a practical interface expansion accessory, specially designed to convert laptop/desktop M.2 Key A/E (WiFi/Bluetooth) slots into two USB2.0 ports. Built with high-performance GENESYS GL850 USB 2.0 hub controller chip, it fully complies with USB 2.0 specification, ensuring stable, fast data transmission and excellent compatibility with various USB devices.

Equipped with a 30cm USB extension cable, the adapter offers flexible placement, allowing you to easily connect USB flash drives, mice, keyboards, headphones, card readers and other external devices without being restricted by the position of the M.2 slot. It supports plug-and-play functionality, no additional drivers or software installation required, and features low power consumption with built-in voltage regulators to ensure safe and stable operation for long periods.

With universal compatibility, this dual USB adapter works with all mainstream laptop and desktop brands (Lenovo, Dell, HP, ASUS, Acer, MSI, etc.) that have M.2 Key A, Key E or Key A+E slots (commonly used for WiFi/BT modules). It is compact in size, easy to install, and effectively solves the problem of insufficient USB interfaces for laptops, desktops and mini PCs. Ideal for office, home and DIY use, it is a cost-effective solution for USB interface expansion.

Product model: M.2 (KEY A-E) to dual port USB 2.0

Product interface: 5PIN1.0mm with 2 USB cables, cable length 25cm

Product interface: M.2 (A KEY) 2230

Product speed: 480Mbps

Product controller: GL850

Supported systems: WinXP/2003/VISTA/2008/7/8/10/11 32/64BIT/Linux

Notes:

The M.2 standard network card of the laptop contains USB 2.0 signal and 3.3V power supply. This product extracts the USB signal from the USB HUB chip and boosts the voltage from 3.3V to 5V/1A to supply the USB device. Let's take a look at the working principle above. Since the USB signal is output from the computer, some computer screens may cheat on this signal or have no signal output at all, which can cause the card to be unusable, not a problem with the card. If the internal bridge USB is damaged, this card cannot be used.

Only suitable for M.2 with Bluetooth network card (KEY-A) interface, CNIV interface cannot be used.
