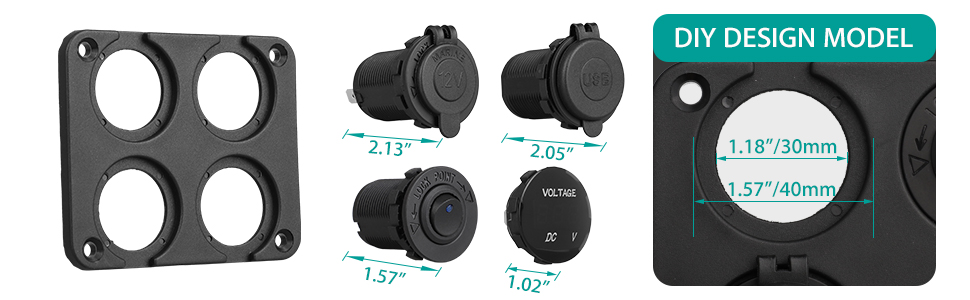

12v cigarette lighter socket all components dimension:
- Cigarette Socket Dimension: Approx. 1.18" * 2.13"(30mm * 54mm)
- USB Car Socket Dimension: Approx. 1.18" * 2.05"(30mm * 52mm)
- Rocker Toggle Switch: Approx. 1.18" * 1.57"(30mm * 40mm)
- LED Voltmeter Dimension: Approx. 1.18" * 1.02"(30mm * 26mm)

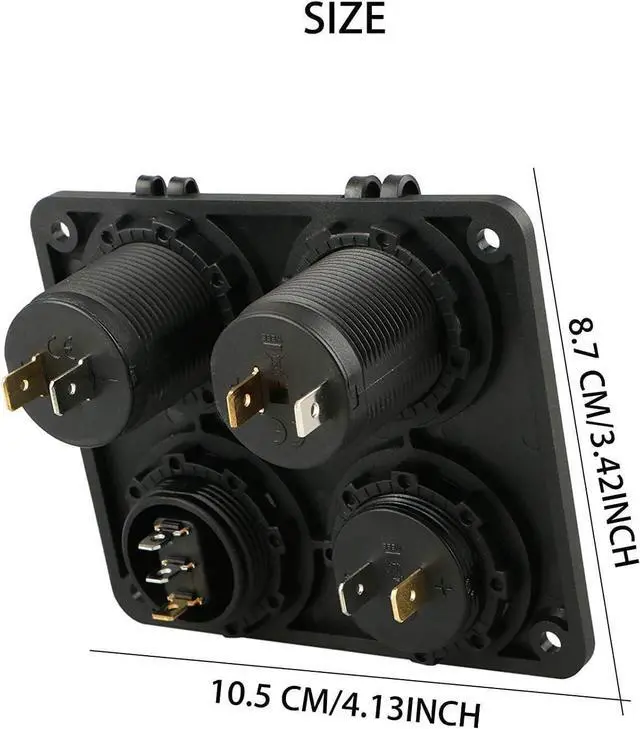

- Four Holes Panel Dimension: Approx. 4.13" * 3.42" (L * W)

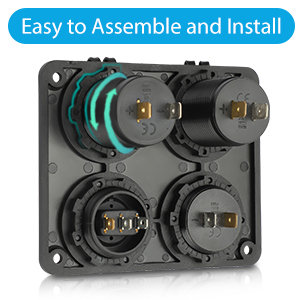

Assemble & Install At Any Time
Swivel the button to loosen or tighten to replace the parts you want, easy and convenient. Let‘s DIY your multi-functional marine switch panel. You can complete kit everything you need.
Noted: Wire diagram not including

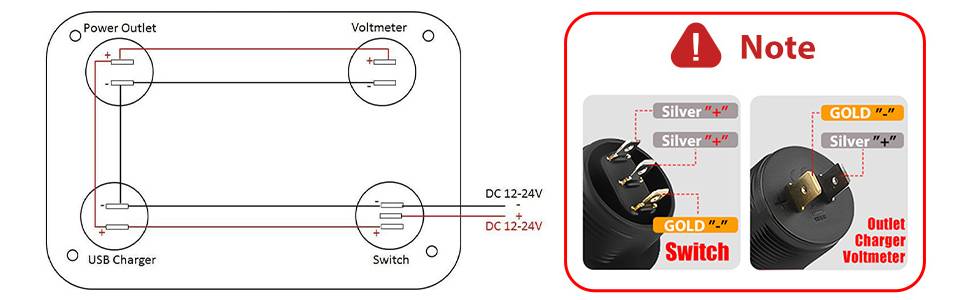

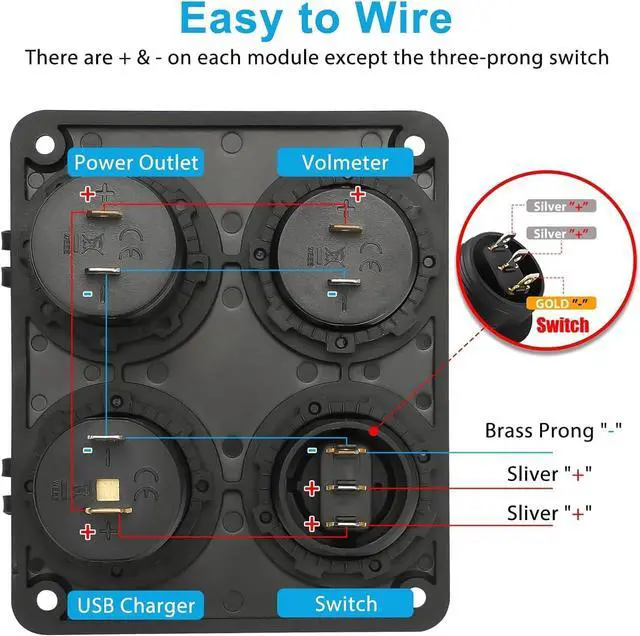

There are + & - on each module except the three-prong switch. One prong is brass, the others are silver.
About this 3-prong switch, the brass prong is negative and the center is positive in, the outer silver prong is supplied positive.

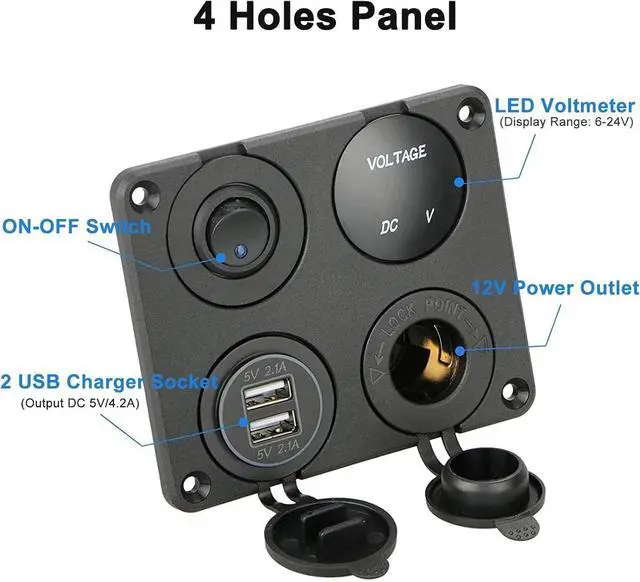

Four Holes Panel
- One for 12V Cigarette Socket
- One for Blue Light Digital Voltmeter
- One for Dual USB Car Socket
- One for ON-OFF Rocker Toggle Switch
- Individual holes for individual components, also can be replaced to the piece parts you need.

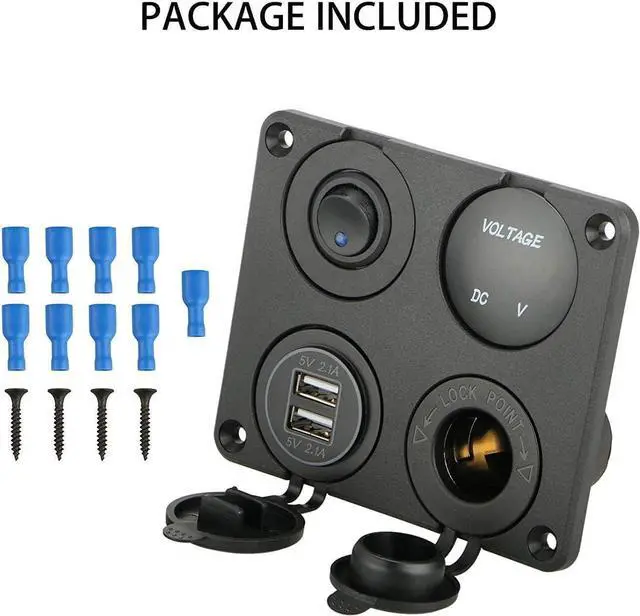

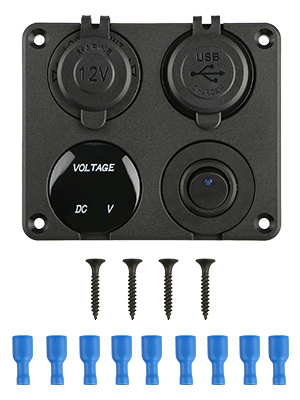

Package Included:
- 1 x 12V Cigarette Socket
- 1 x Blue Light Digital Voltmeter
- 1 x Dual USB Car Socket
- 1 x ON-OFF Rocker Toggle Switch
- 1 x Four Holes Panel
- 4 x Stainless Steel Screws
- 9 x Blue Terminals(No Wires)
Specification:
- Style: 4 in 1 Charger Socket Panel
- Color: Black Shell & Blue LED Light
- Material: ABS
- USB Output: DC 5V/2.1A&2.1A (total 4.2A)
- Power Outlet: DC 12V
- Voltmeter Display Range: 6 - 24V
- Toggle Switch: 20A 12V DC
- Package Weight: 135g / 4.8oz
 6 in 1 Marine Switch Panel |  4 in 1 Charger Outlet Socket Panel |  12 Volt USB Outlet Panel |  4 Gang Toggle Rocker Switch Panel |  5 Gang 3 Pin Rocker Switch Panel |  4 in 1 Marine Switch Panel | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — no data | — | — no data | — no data |
| DIY Hole | Six | Four | Four | Six | Six | Four |
| LED Light | Blue | Blue | Green | Blue | Blue | Blue |
| LED Voltmeter | 5-48V LED Voltmeter | 5-48V LED Voltmeter | 9-24V LED Voltmeter | 0-24V LED Voltmeter | None | 0-30V LED Voltmeter |
| Cigarette Lighter Socket | Three-12V USB Output | One-12V USB Output | One-12V USB Output | One-12V USB Output | None | One-12V USB Output |
| Dual USB Charger | 4.2A Dual USB Charger | 4.2A Dual USB Charger | 4.2A Dual USB Charger | 4.2A Dual USB Charger | None | 4.2A Dual USB Charger |
| ON/OFF Switch | ? | ? | ? | ? | ? | ? |
